UGC DOR8030310
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$334.59 CAD - $334.59 CAD
$334.59 CAD
$334.59 CAD - $334.59 CAD
$334.59 CAD

Vendu en lots de : 1

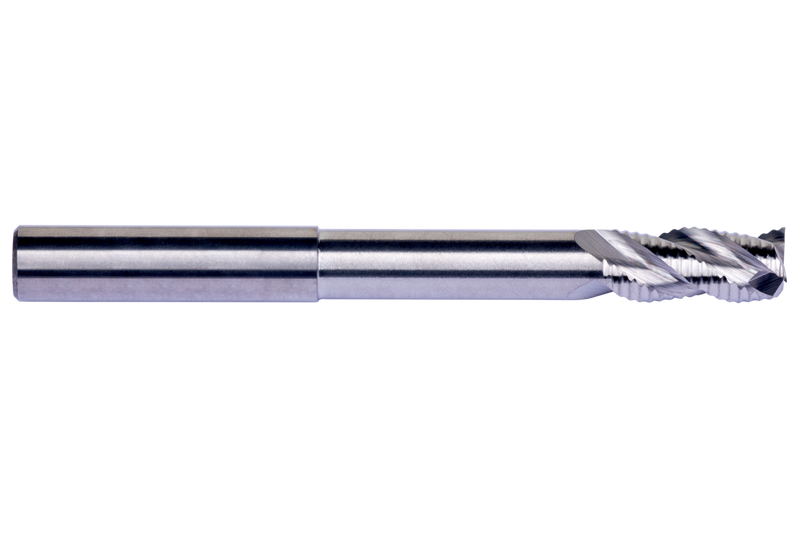

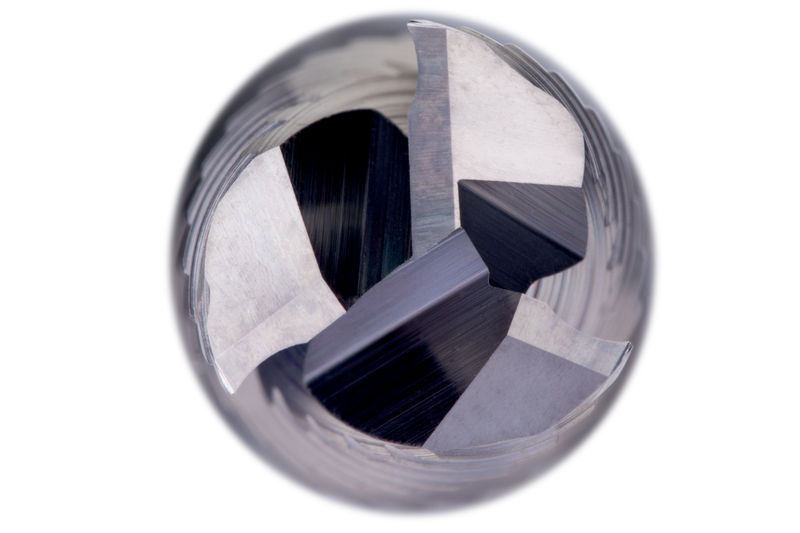

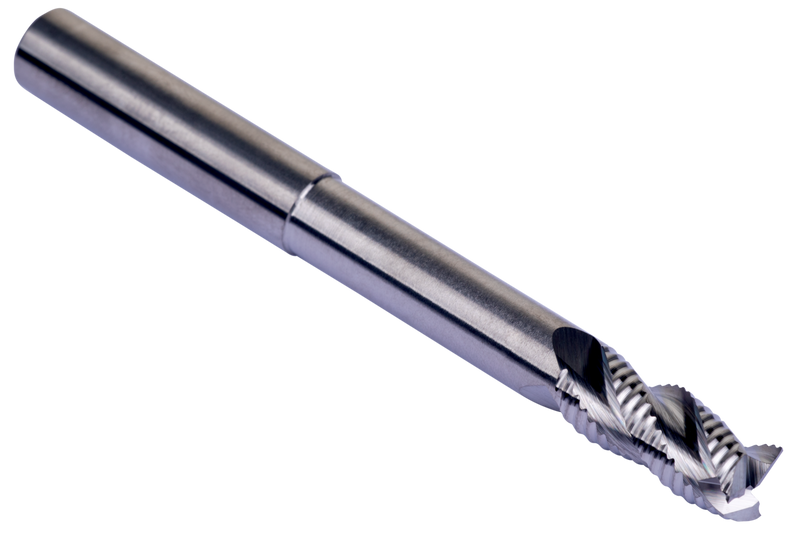

Fraise trois tailles à ébaucher série courte, diamètre 16mm, longueur de coupe 32mm, longueur totale 125mm, dégagement du col de 75mm et rayons de coin de 0.16mm, selon la norme DORMER avec queue cylindrique de 16mm, carbure monobloc finition brillante, hélice de 40° et angle de dépouille de 15° pour le fraisage d'épaulement, le fraisage de rainures et le fraisage hélicoïdal dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S65416.0
GradeLumineux
Product Number8030310
Product FamilyS654

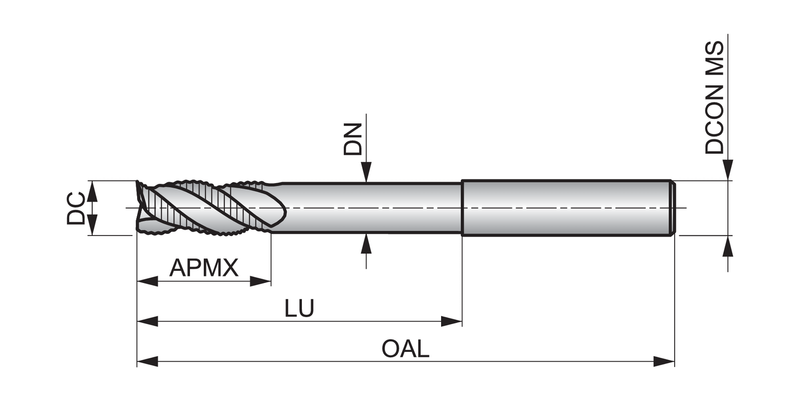

Insert Geometry
Corner Radius — in (RE)0.0063"
Corner Radius — mm (RE)0.16 mm
Depth of Cut Max — in (APMX)1.2598"
Depth of Cut Max — mm (APMX)32.0 mm
Dimensions
Cutting Diameter — in (DC)0.6299"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)4.9213"
Overall Length — mm (OAL)125.0 mm
Usable Length — mm (LU)75.0 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number8030310
EAN7320760950326
File Type Download
S65416.0 — 3D Model STP Download
S65416.0 — 2D Model DXF Download
S65416.0 — Line Drawing PDF Download
