UGC DOR8030311
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$519.59 CAD - $519.59 CAD
$519.59 CAD
$519.59 CAD - $519.59 CAD
$519.59 CAD

Vendu en lots de : 1

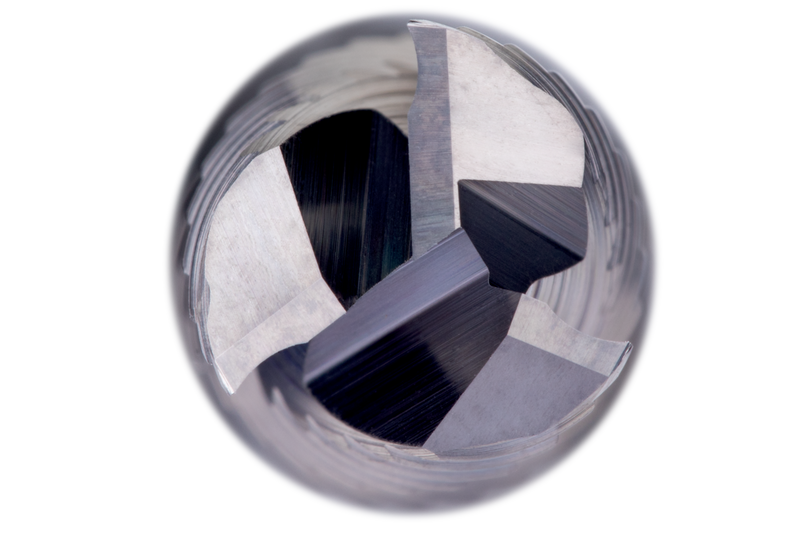

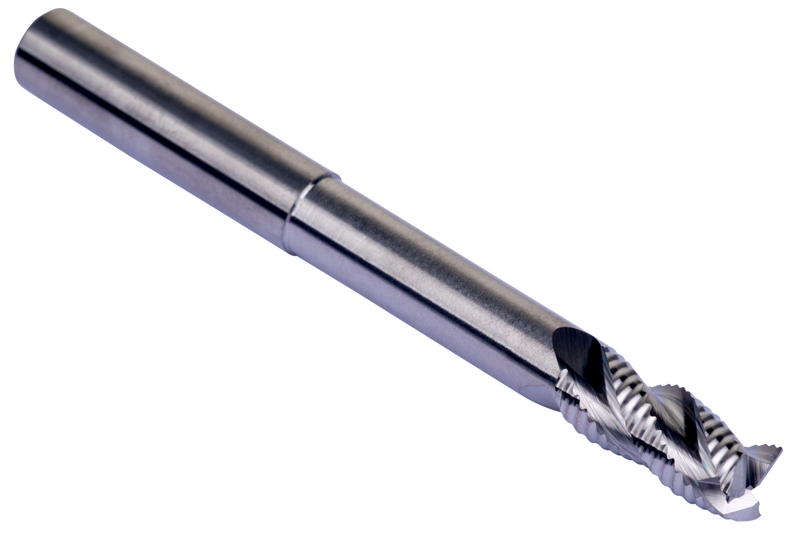

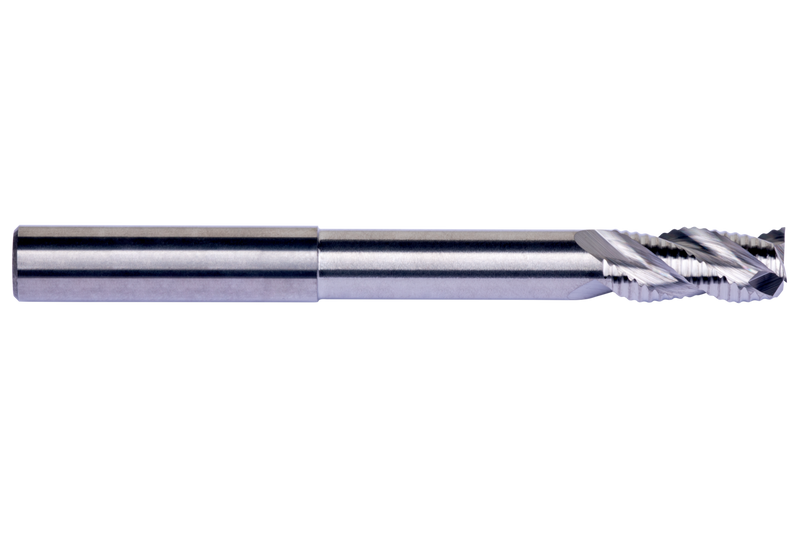

Fraise trois tailles courte de dégrossissage avec 3 dents, diamètre 20mm avec 40mm de longueur de coupe, 150mm de longueur totale, 100mm de longueur utile avec dégagement et 0,2mm de rayons d'angle, selon la norme DORMER avec une queue cylindrique de 20mm, carbure monobloc avec finition brillante, hélice à 40° et angle de dépouille à 15° pour le fraisage d'épaulements, le fraisage de rainures et le fraisage hélicoïdal dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S65420.0
GradeLumineux
Product Number8030311
Product FamilyS654
Insert Geometry
Corner Radius — in (RE)0.0079"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)1.5748"
Depth of Cut Max — mm (APMX)40.0 mm

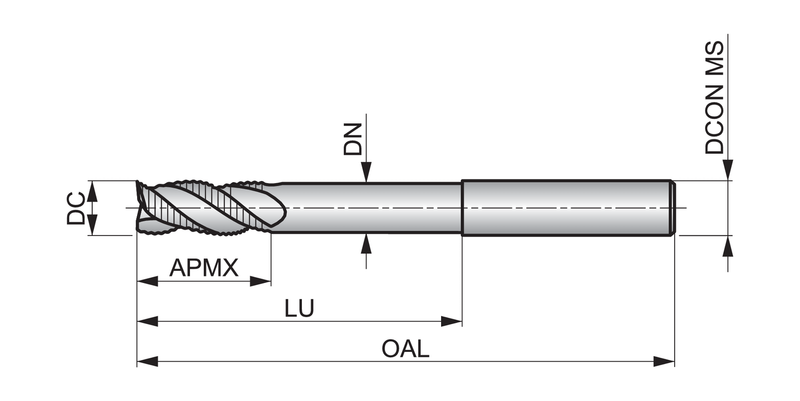

Dimensions
Cutting Diameter — in (DC)0.7874"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)5.9055"
Overall Length — mm (OAL)150.0 mm
Usable Length — mm (LU)100.0 mm
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number8030311
EAN7320760950333
File Type Download
S65420.0 — 3D Model STP Download
S65420.0 — 2D Model DXF Download
S65420.0 — Line Drawing PDF Download
