S66210.0XR0.5
S66210.0XR0.5
S66210.0XR0.5
S66210.0XR0.5

S66210.0XR0.5

UGC DOR8030323
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$104.13 CAD - $104.13 CAD
$104.13 CAD
$104.13 CAD - $104.13 CAD
$104.13 CAD

Vendu en lots de : 1

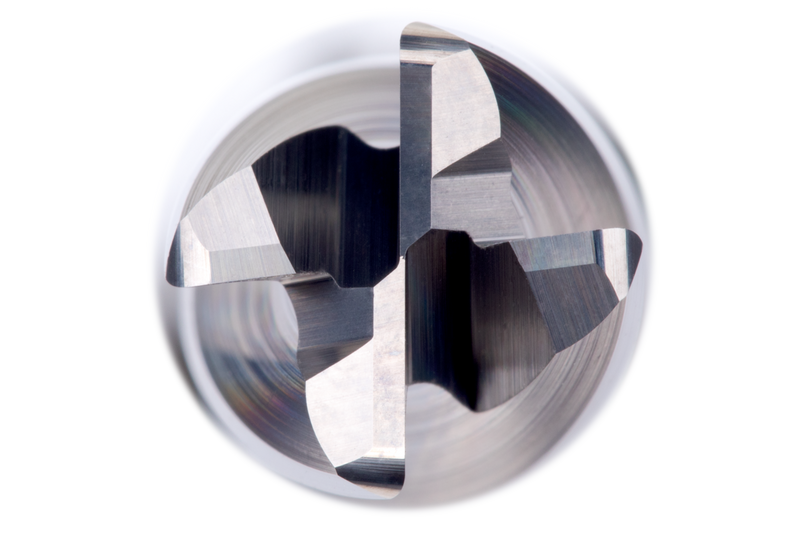

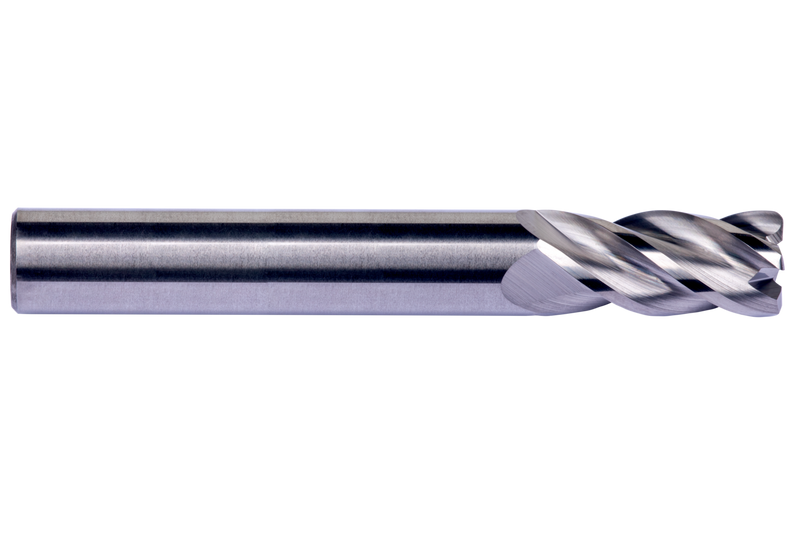

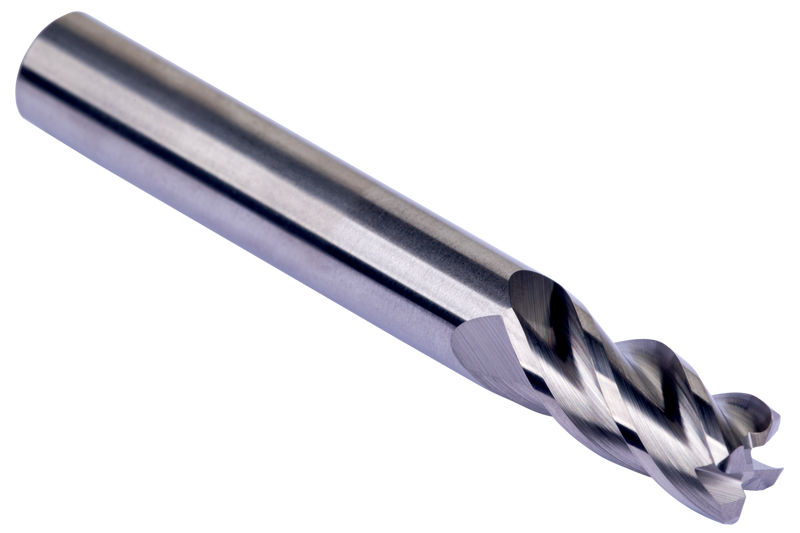

Fraise à rayon de coin courte série 4 dents, diamètre 10mm avec une longueur de coupe de 22mm, longueur totale de 72mm et rayons de coin de 0.5mm, selon le standard DORMER avec une queue cylindrique de 10mm, en carbure monobloc finition brillante, hélice de 40° et angle de dépouille de 10° pour le fraisage d'épaulement, en plongée, en ramping et en hélice dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S66210.0XR0.5
GradeLumineux
Product Number8030323
Product FamilyS662

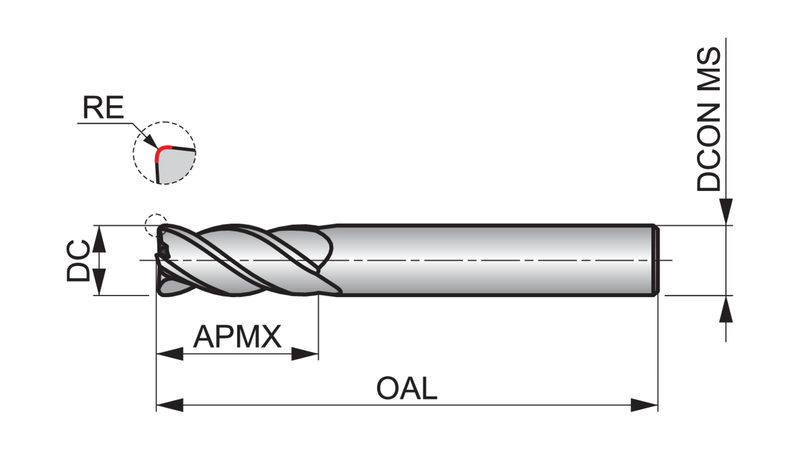

Insert Geometry
Corner Radius — in (RE)0.0197"
Corner Radius — mm (RE)0.5 mm
Depth of Cut Max — in (APMX)0.8661"
Depth of Cut Max — mm (APMX)22.0 mm
Dimensions
Cutting Diameter — in (DC)0.3937"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)2.8346"
Overall Length — mm (OAL)72.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number8030323
EAN7320760950456
File Type Download
S66210.0XR0.5 — 3D Model STP Download
S66210.0XR0.5 — 2D Model DXF Download
S66210.0XR0.5 — Line Drawing PDF Download
