UGC DOR8030330
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$236.80 CAD - $236.80 CAD
$236.80 CAD
$236.80 CAD - $236.80 CAD
$236.80 CAD

Vendu en lots de : 1

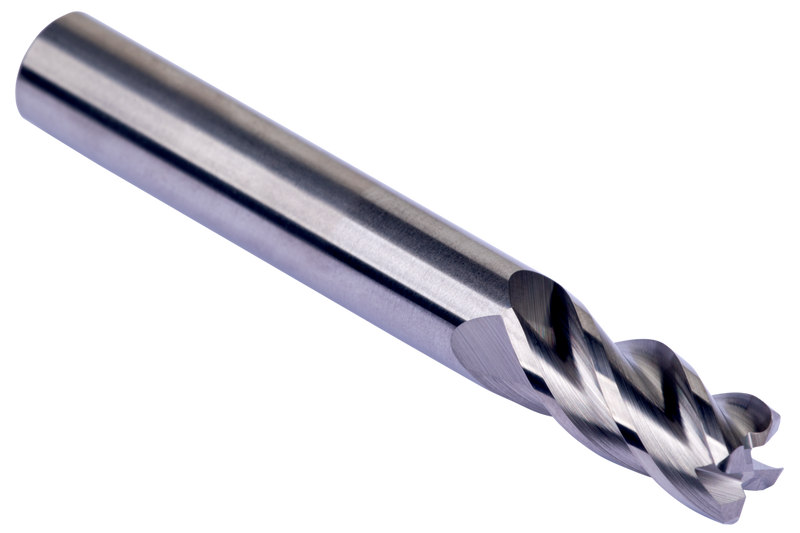

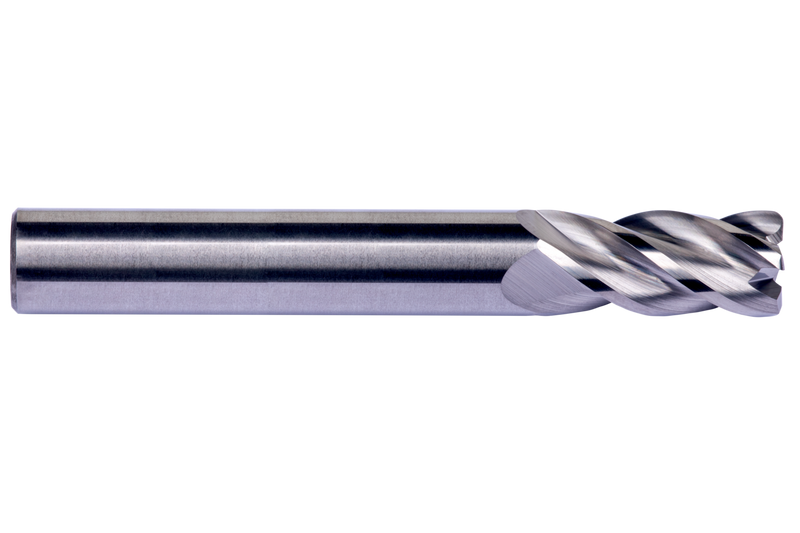

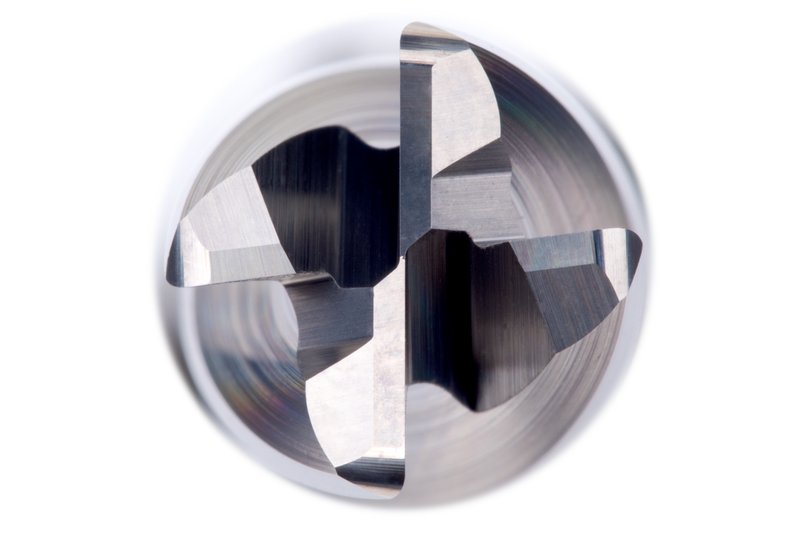

Fraise 4 dents, à rayon de coin, série courte, diamètre 16 mm, longueur de coupe 32 mm, longueur totale 92 mm, rayon de coin 1 mm, conforme à la norme DORMER, avec queue cylindrique 16 mm, en carbure monobloc, finition brillante, hélice 40° et angle de dépouille 10°, pour le fraisage d'épaulements, le rainurage en plongée, le fraisage en rampe et le fraisage hélicoïdal dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S66216.0XR1.0
GradeLumineux
Product Number8030330
Product FamilyS662

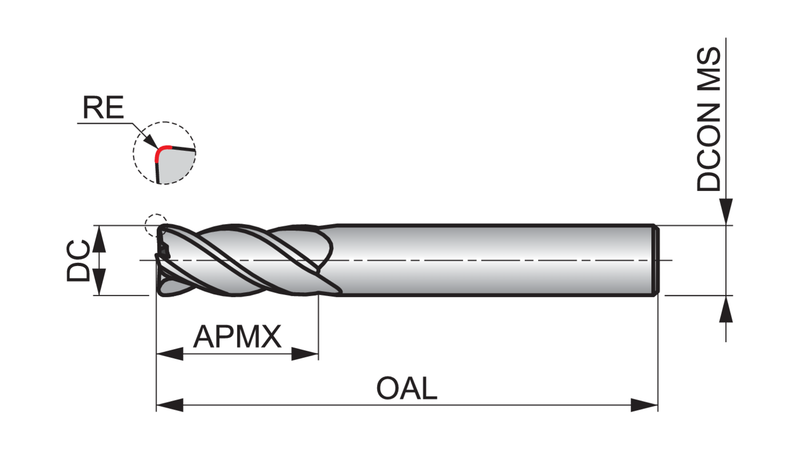

Insert Geometry
Corner Radius — in (RE)0.0394"
Corner Radius — mm (RE)1 mm
Depth of Cut Max — in (APMX)1.2598"
Depth of Cut Max — mm (APMX)32.0 mm
Dimensions
Cutting Diameter — in (DC)0.6299"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)3.622"
Overall Length — mm (OAL)92.0 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number8030330
EAN7320760950524
File Type Download
S66216.0XR1.0 — 3D Model STP Download
S66216.0XR1.0 — 2D Model DXF Download
S66216.0XR1.0 — Line Drawing PDF Download
