UGC DOR8030335
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$366.30 CAD - $366.30 CAD
$366.30 CAD
$366.30 CAD - $366.30 CAD
$366.30 CAD

Vendu en lots de : 1

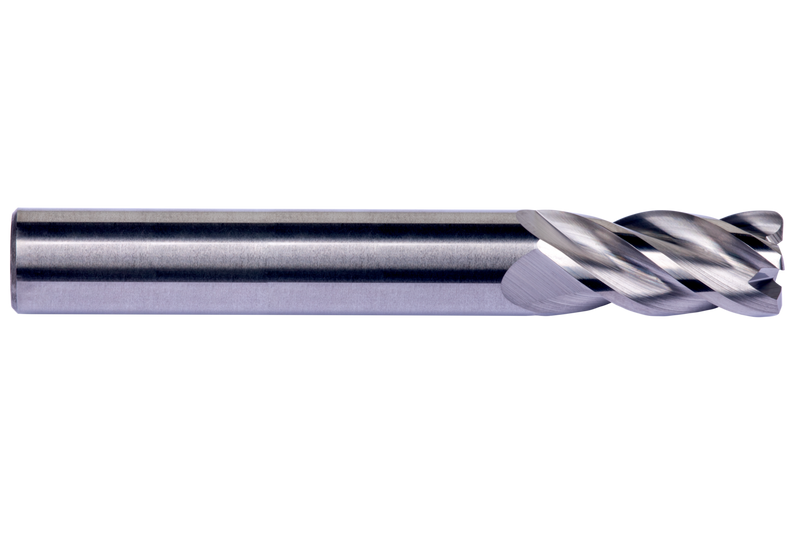

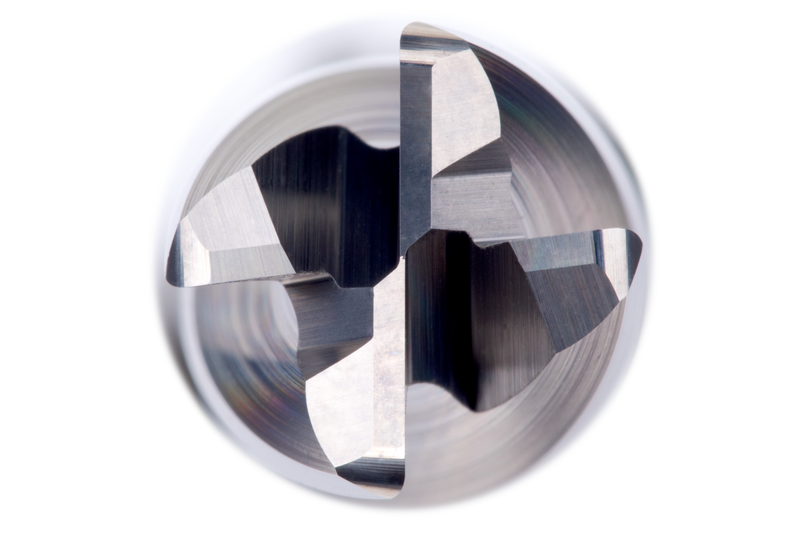

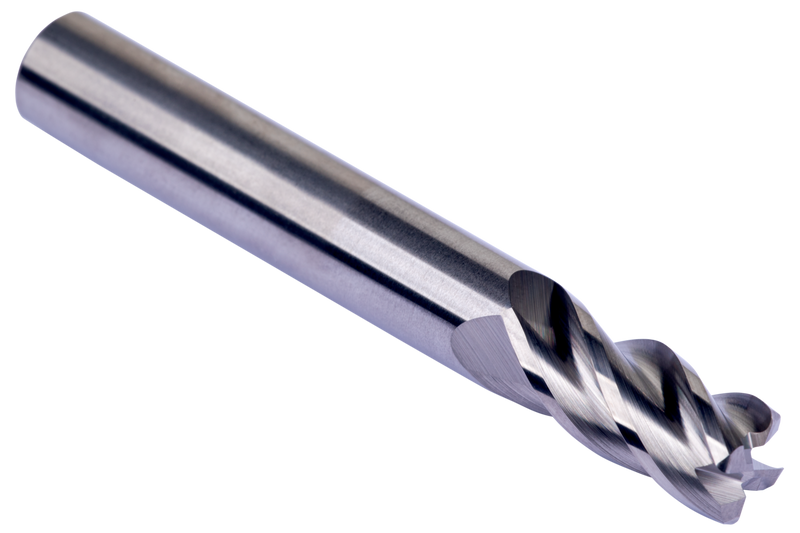

Fraise d'ébauche à rayon de coupe courte, 4 dents, diamètre 20mm avec une longueur de coupe de 38mm, une longueur totale de 104mm et un rayon de coin de 4mm, selon la norme DORMER avec une queue cylindrique de 20mm, en carbure monobloc avec finition brillante, hélice de 40° et angle de dépouille de 10° pour le fraisage d'épaulement, le plongement, le ramping et le fraisage hélicoïdal dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S66220.0XR4.0
GradeLumineux
Product Number8030335
Product FamilyS662

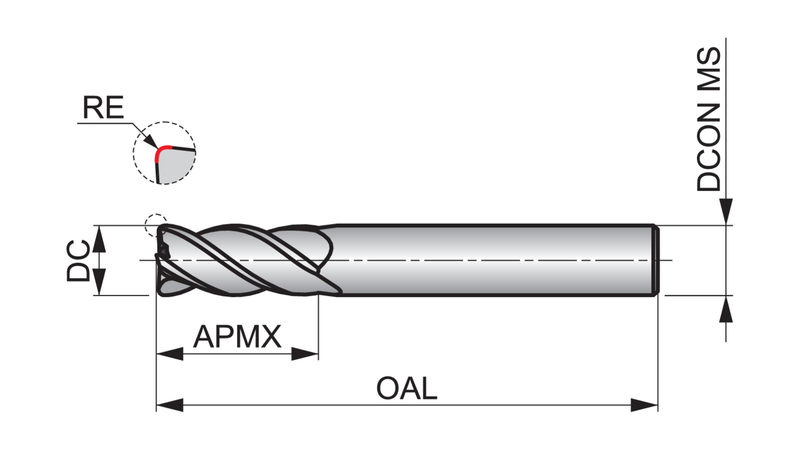

Insert Geometry
Corner Radius — in (RE)0.1575"
Corner Radius — mm (RE)4 mm
Depth of Cut Max — in (APMX)1.4961"
Depth of Cut Max — mm (APMX)38.0 mm
Dimensions
Cutting Diameter — in (DC)0.7874"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)4.0945"
Overall Length — mm (OAL)104.0 mm
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number8030335
EAN7320760950579
File Type Download
S66220.0XR4.0 — 3D Model STP Download
S66220.0XR4.0 — 2D Model DXF Download
S66220.0XR4.0 — Line Drawing PDF Download
