UGC DOR8030338
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$108.36 CAD - $108.36 CAD
$108.36 CAD
$108.36 CAD - $108.36 CAD
$108.36 CAD

Vendu en lots de : 1

Fraise tonneau de longueur normale à 3 dents, diamètre 6mm avec 22mm de longueur de coupe, 67mm de longueur totale, rayon de profil complet de 1mm et rayon tangentiel de 95mm, selon la norme DORMER, avec un attachement cylindrique de 6mm, en carbure monobloc avec revêtement AlCrN, hélice de 30° et angle de dépouille de 8° pour le fraisage en plongée et le fraisage-tournage dans l'acier, l'acier moulé ou la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S7916.0
GradeAlCrN
Product Number8030338
Product FamilyS791

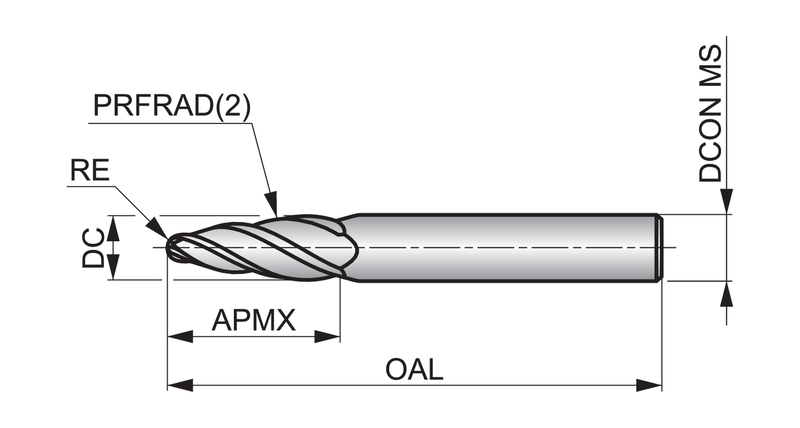

Insert Geometry
Corner Radius — in (RE)0.0394"
Corner Radius — mm (RE)1 mm
Depth of Cut Max — in (APMX)0.8661"
Depth of Cut Max — mm (APMX)22.0 mm
Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)2.6378"
Overall Length — mm (OAL)67.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number8030338
EAN7320760950586
File Type Download
S7916.0 — 3D Model STP Download
S7916.0 — 2D Model DXF Download
S7916.0 — Line Drawing PDF Download
