UGC DOR8030339
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$151.17 CAD - $151.17 CAD
$151.17 CAD
$151.17 CAD - $151.17 CAD
$151.17 CAD

Vendu en lots de : 1

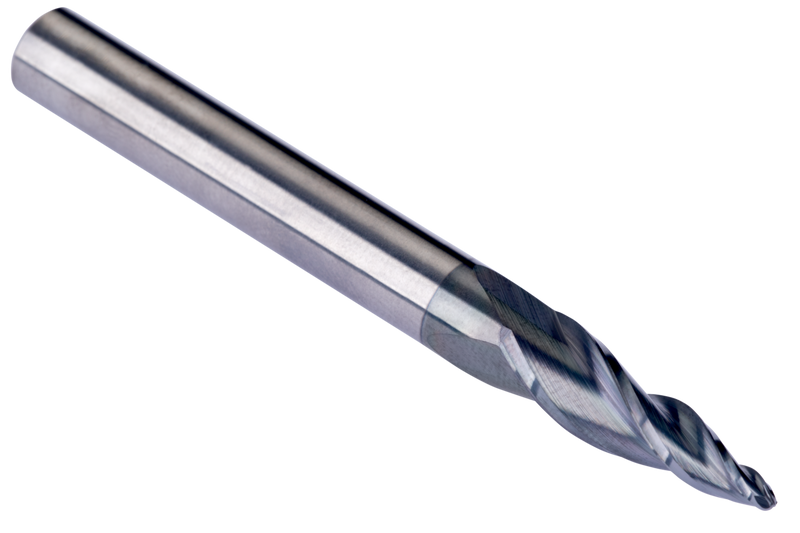

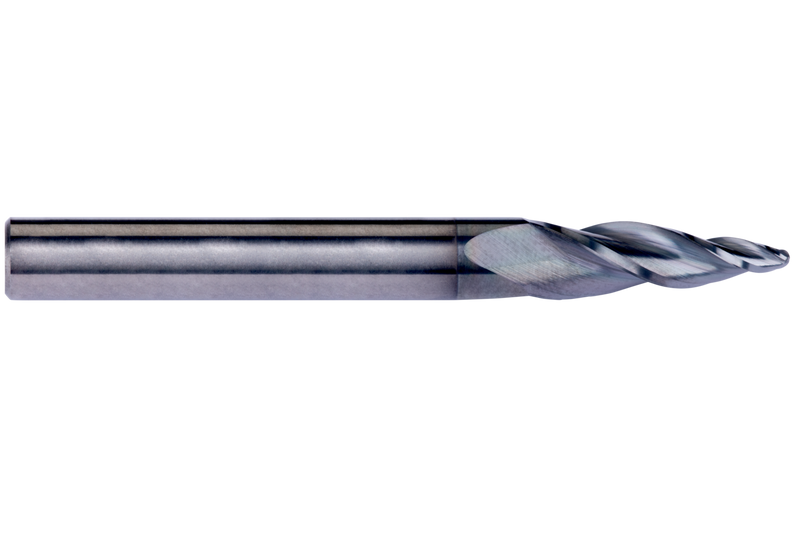

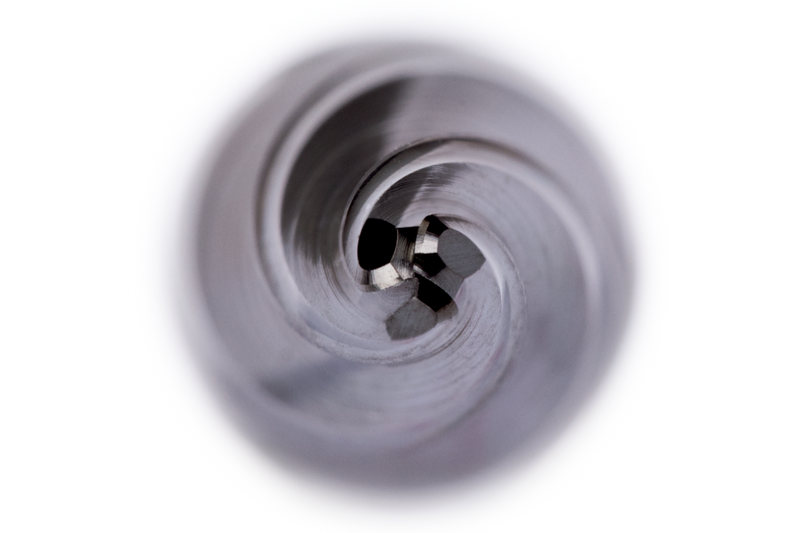

Fraise tonneau de longueur standard à 3 dents, diamètre 8 mm avec une longueur de coupe de 25 mm, longueur totale de 75 mm, rayon de profil complet de 1 mm et rayon tangentiel de 90 mm, selon la norme DORMER avec une queue cylindrique de 8 mm, en carbure monobloc avec revêtement AlCrN, hélice à 30° et angle de dépouille de 8° pour le fraisage de copiage et le fraisage-tournage dans l'acier, l'acier moulé ou la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S7918.0
GradeAlCrN
Product Number8030339
Product FamilyS791

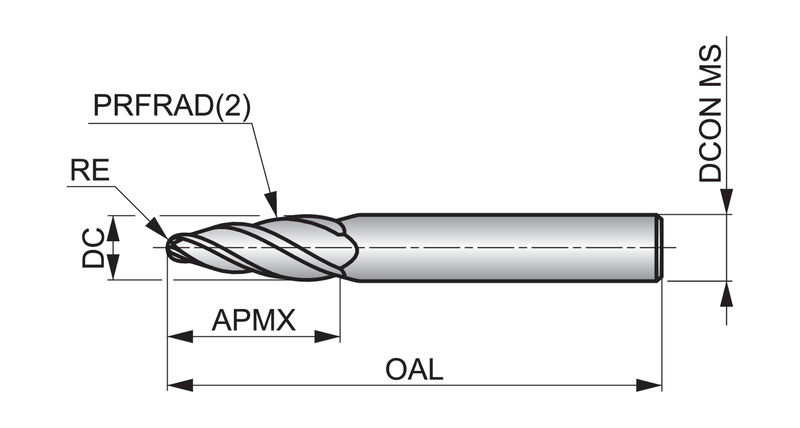

Insert Geometry
Corner Radius — in (RE)0.0394"
Corner Radius — mm (RE)1 mm
Depth of Cut Max — in (APMX)0.9843"
Depth of Cut Max — mm (APMX)25.0 mm
Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)2.9528"
Overall Length — mm (OAL)75.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number8030339
EAN7320760950593
File Type Download
S7918.0 — 3D Model STP Download
S7918.0 — 2D Model DXF Download
S7918.0 — Line Drawing PDF Download
