UGC DOR8030340
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$220.41 CAD - $220.41 CAD
$220.41 CAD
$220.41 CAD - $220.41 CAD
$220.41 CAD

Vendu en lots de : 1

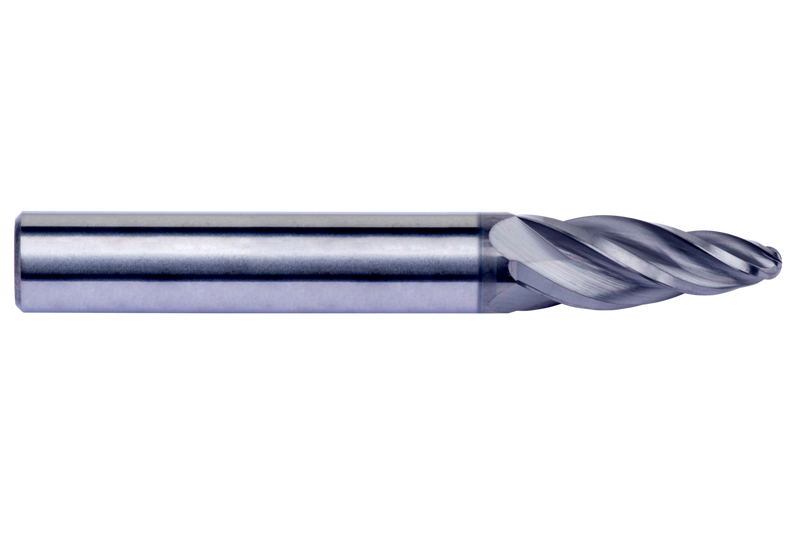

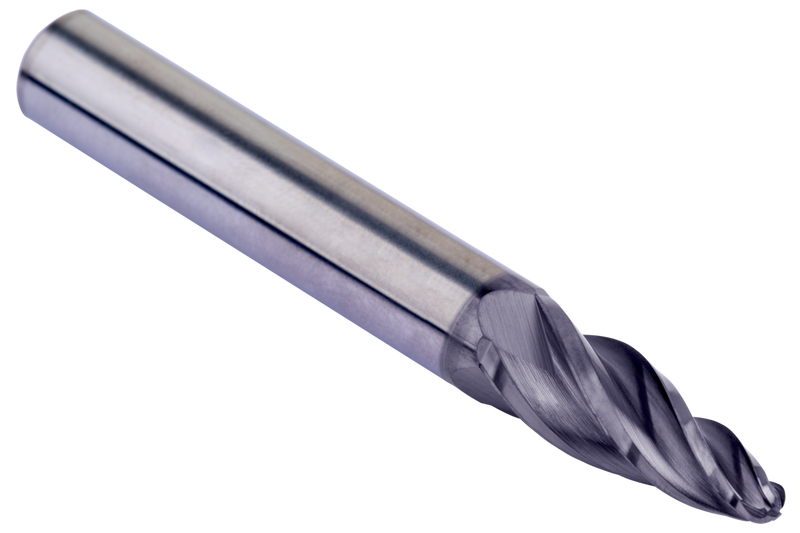

Fraise tonneau de longueur standard à 4 dents, diamètre 10mm, longueur de coupe 26mm, longueur totale 75mm, rayon de profil complet 2mm et rayon tangentiel 85mm, conforme à la norme DORMER avec un corps cylindrique 10mm, en carbure monobloc avec revêtement AlCrN, hélice 30° et angle de dépouille 8° pour le fraisage par copiage et le fraisage-tournage dans l'acier et l'acier moulé ou la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S79110.0
GradeAlCrN
Product Number8030340
Product FamilyS791

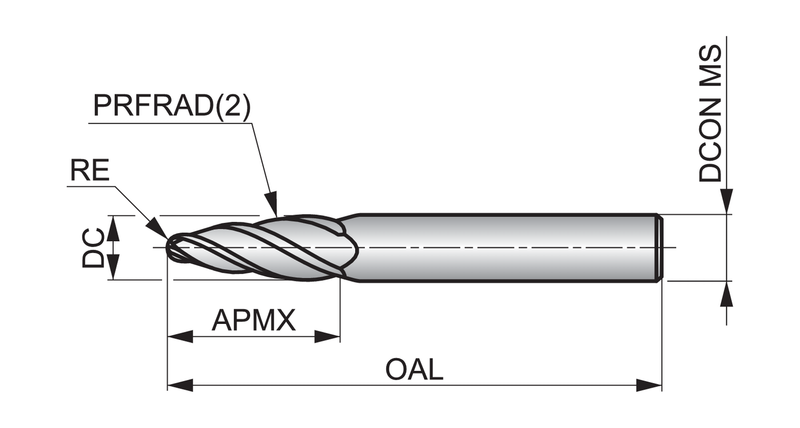

Insert Geometry
Corner Radius — in (RE)0.0787"
Corner Radius — mm (RE)2 mm
Depth of Cut Max — in (APMX)1.0236"
Depth of Cut Max — mm (APMX)26.0 mm
Dimensions
Cutting Diameter — in (DC)0.3937"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)2.9528"
Overall Length — mm (OAL)75.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number8030340
EAN7320760950609
File Type Download
S79110.0 — 3D Model STP Download
S79110.0 — 2D Model DXF Download
S79110.0 — Line Drawing PDF Download
