UGC DOR8030341
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$306.04 CAD - $306.04 CAD
$306.04 CAD
$306.04 CAD - $306.04 CAD
$306.04 CAD

Vendu en lots de : 1

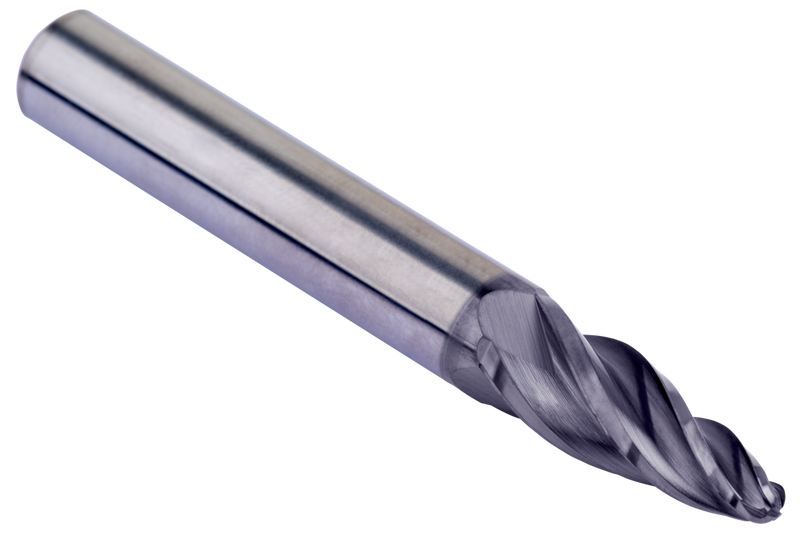

Fraise tonneau de longueur standard à 4 dents, diamètre 12mm avec une longueur de coupe de 28mm, une longueur totale de 83mm, un rayon de profil complet de 2mm et un rayon tangentiel de 80mm, selon la norme DORMER, avec une queue cylindrique de 12mm, en carbure monobloc avec revêtement AlCrN, hélice à 30° et angle de dépouille de 8° pour le fraisage en copie et le fraisage-tournage dans l'acier, l'acier moulé ou la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S79112.0
GradeAlCrN
Product Number8030341
Product FamilyS791

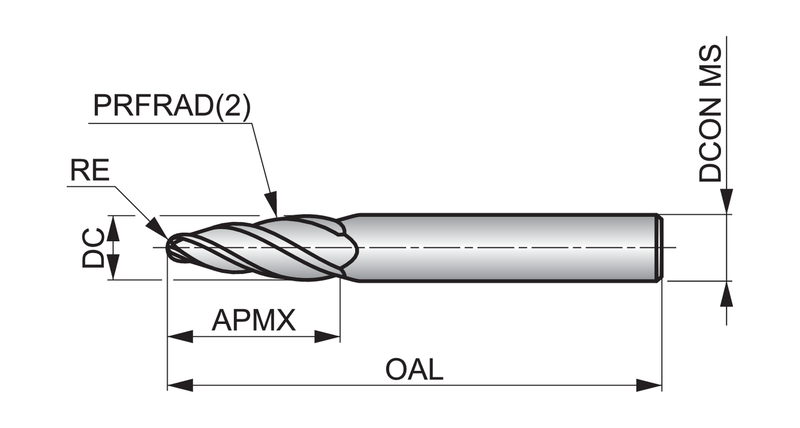

Insert Geometry
Corner Radius — in (RE)0.0787"
Corner Radius — mm (RE)2 mm
Depth of Cut Max — in (APMX)1.1024"
Depth of Cut Max — mm (APMX)28.0 mm
Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)3.2677"
Overall Length — mm (OAL)83.0 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number8030341
EAN7320760950616
File Type Download
S79112.0 — 3D Model STP Download
S79112.0 — 2D Model DXF Download
S79112.0 — Line Drawing PDF Download
