UGC DOR8030342
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$499.50 CAD - $499.50 CAD
$499.50 CAD
$499.50 CAD - $499.50 CAD
$499.50 CAD

Vendu en lots de : 1

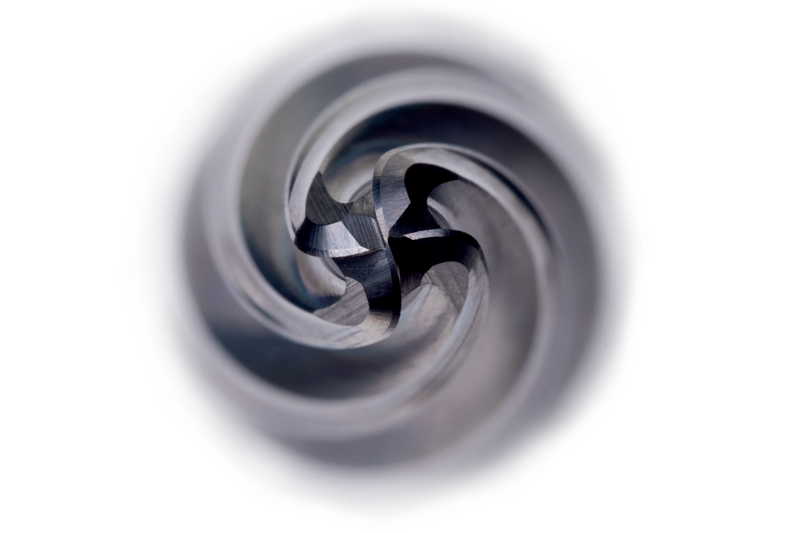

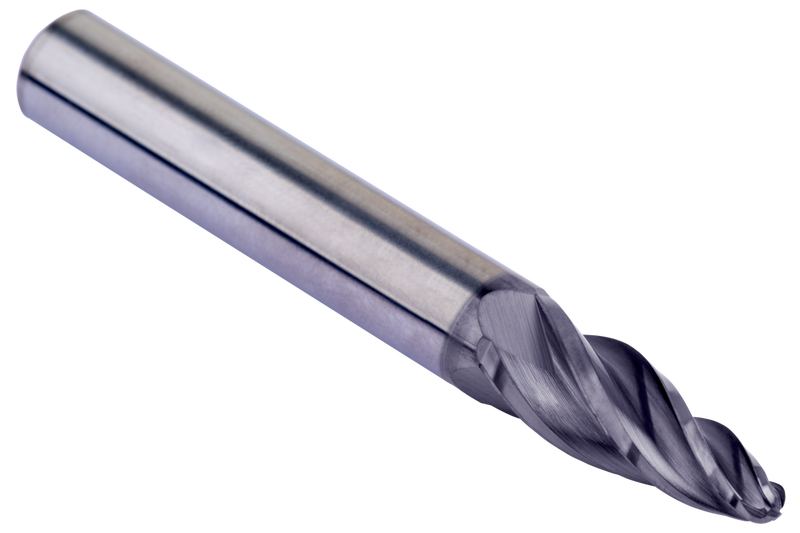

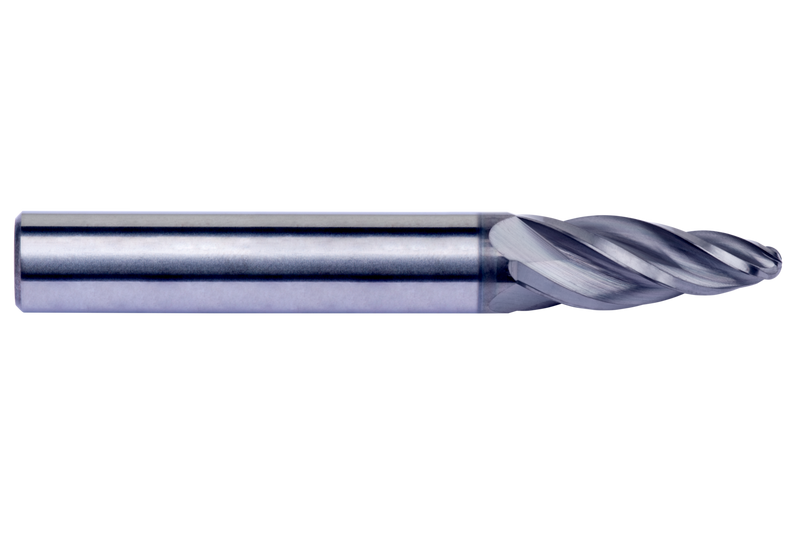

Fraise à surfacer-dresser cylindrique de longueur standard, 4 dents, diamètre de 16 mm avec une longueur de coupe de 31 mm, longueur totale de 90 mm, un rayon de profil complet de 3 mm et un rayon tangentiel de 75 mm, selon la norme DORMER avec une queue cylindrique de 16 mm, en carbure monobloc avec revêtement AlCrN, hélice de 30° et angle de dégagement de 8° pour le fraisage par copiage et le fraisage-tournage dans l'acier et l'acier moulé ou la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S79116.0
GradeAlCrN
Product Number8030342
Product FamilyS791

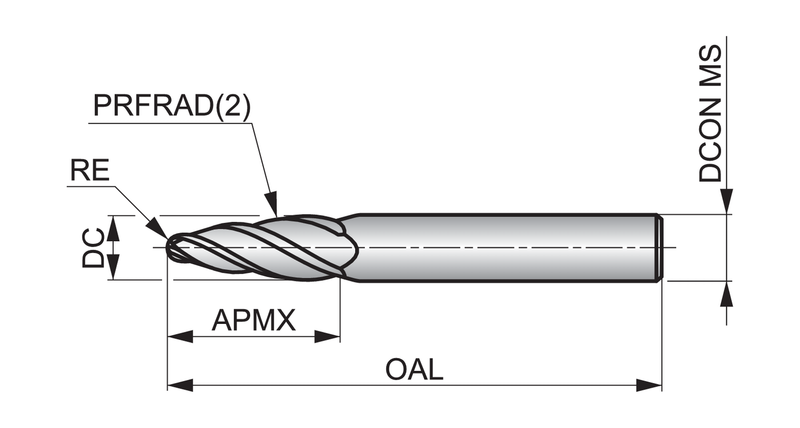

Insert Geometry
Corner Radius — in (RE)0.1181"
Corner Radius — mm (RE)3 mm
Depth of Cut Max — in (APMX)1.2205"
Depth of Cut Max — mm (APMX)31.0 mm
Dimensions
Cutting Diameter — in (DC)0.6299"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)3.5433"
Overall Length — mm (OAL)90.0 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number8030342
EAN7320760950623
File Type Download
S79116.0 — 3D Model STP Download
S79116.0 — 2D Model DXF Download
S79116.0 — Line Drawing PDF Download
