UGC DOR8030343
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$90.39 CAD - $90.39 CAD
$90.39 CAD
$90.39 CAD - $90.39 CAD
$90.39 CAD

Vendu en lots de : 1

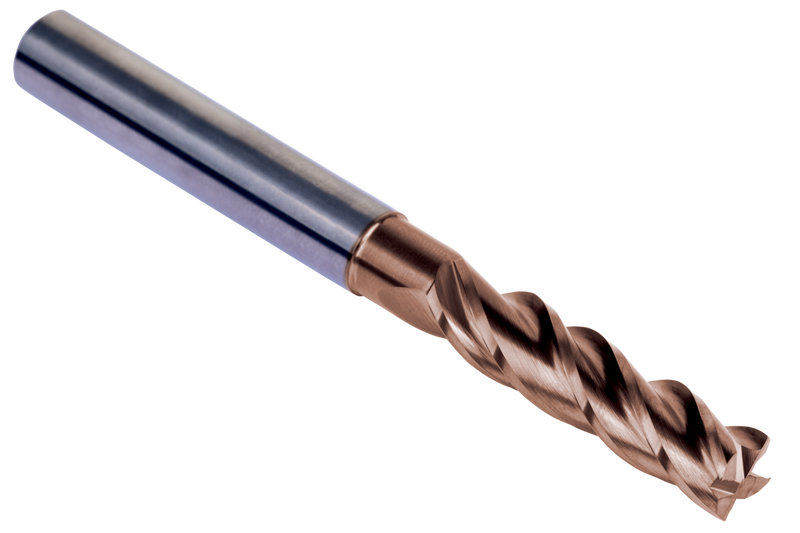

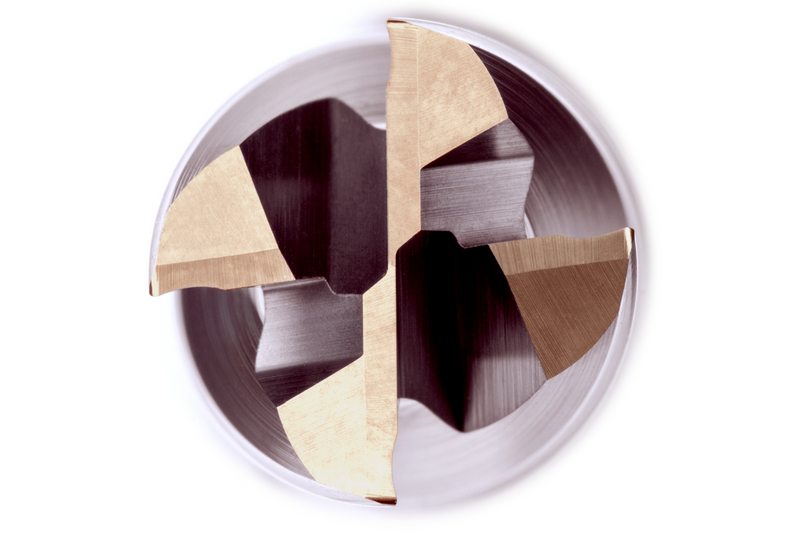

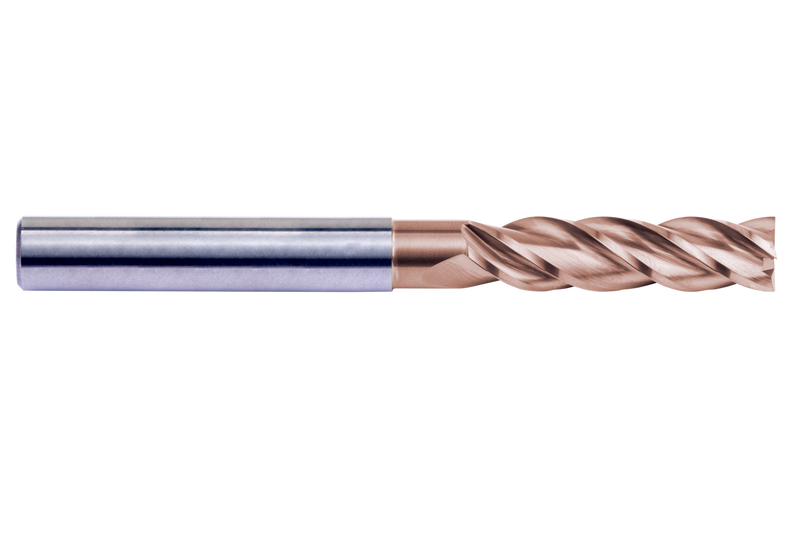

Fraise en bout série longue 4 dents, diamètre 4mm, longueur de coupe 19mm, longueur totale 75mm, longueur utile 32mm avec dégagement de col et rayons d'angle de 0,1mm, selon la norme DORMER avec une queue cylindrique 6mm, carbure monobloc avec revêtement TiSiN, hélice différentielle et angle de coupe 10° pour le fraisage d'épaulement et le plongeage dans l'acier et l'acier moulé, l'acier inoxydable, la fonte ou les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S7684.0
GradeTiSiN
Product Number8030343
Product FamilyS768
Insert Geometry
Corner Radius — in (RE)0.0039"
Corner Radius — mm (RE)0.1 mm
Depth of Cut Max — in (APMX)0.748"
Depth of Cut Max — mm (APMX)19.0 mm

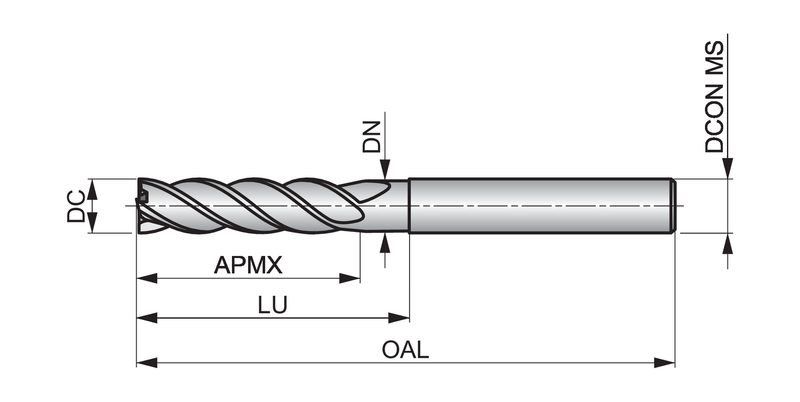

Dimensions
Cutting Diameter — in (DC)0.1575"
Cutting Diameter — mm (DC)4.0 mm
Overall Length — in (OAL)2.9528"
Overall Length — mm (OAL)75.0 mm
Usable Length — mm (LU)32.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)4
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number8030343
EAN7320760950630
File Type Download
S7684.0 — 3D Model STP Download
S7684.0 — 2D Model DXF Download
S7684.0 — Line Drawing PDF Download
