S7685.0
S7685.0
S7685.0
S7685.0

S7685.0

UGC DOR8030344
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$91.44 CAD - $91.44 CAD
$91.44 CAD
$91.44 CAD - $91.44 CAD
$91.44 CAD

Vendu en lots de : 1

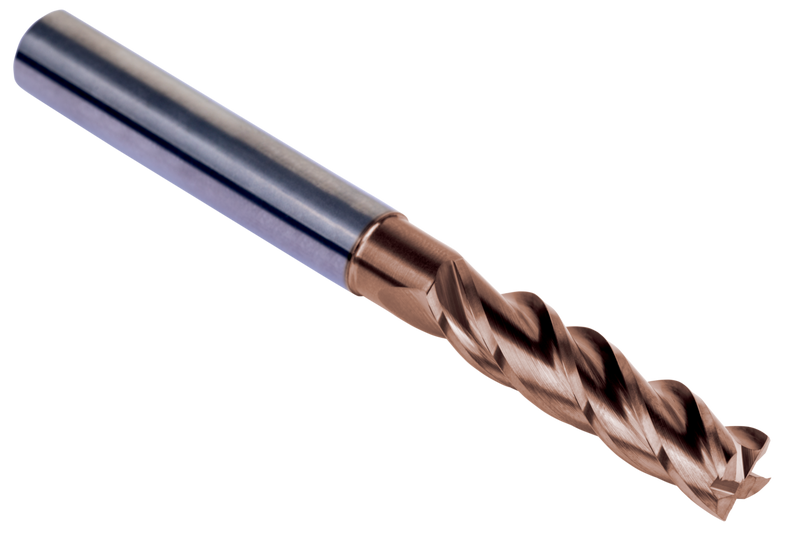

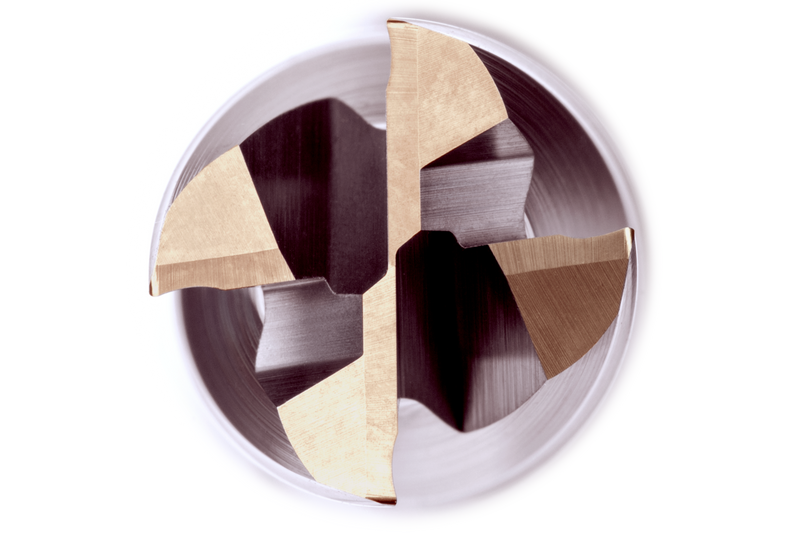

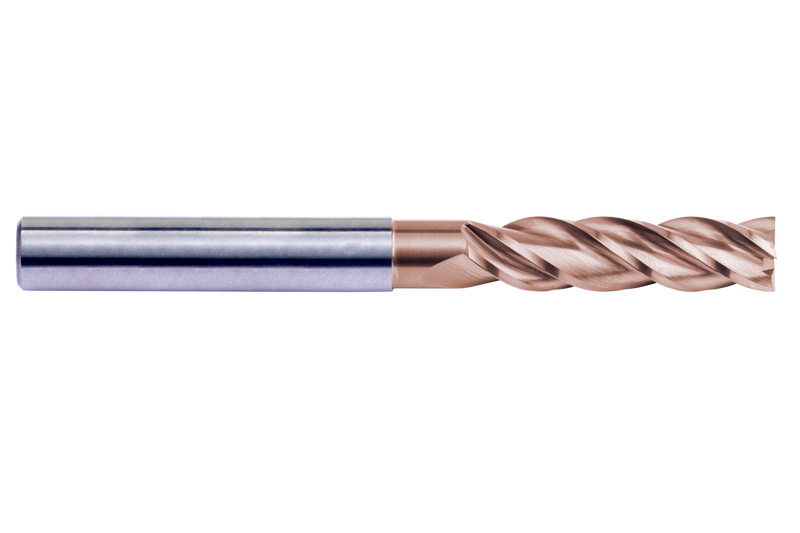

Fraise en bout série longue à 4 dents, diamètre 5 mm avec une longueur de coupe de 19 mm, longueur totale de 75 mm, portée de 32 mm avec dégagement et rayons d'angle de 0,1 mm, selon la norme DORMER avec une queue cylindrique de 6 mm, carbure monobloc avec revêtement TiSiN, hélice inégale et angle de coupe de 10° pour le fraisage en plongée et d'épaulement dans l'acier et l'acier moulé, l'acier inoxydable, la fonte ou les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S7685.0
GradeTiSiN
Product Number8030344
Product FamilyS768
Insert Geometry
Corner Radius — in (RE)0.0039"
Corner Radius — mm (RE)0.1 mm
Depth of Cut Max — in (APMX)0.748"
Depth of Cut Max — mm (APMX)19.0 mm

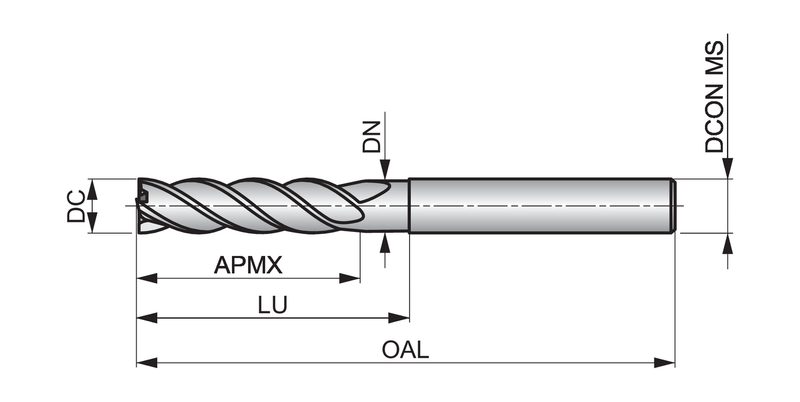

Dimensions
Cutting Diameter — in (DC)0.1969"
Cutting Diameter — mm (DC)5.0 mm
Overall Length — in (OAL)2.9528"
Overall Length — mm (OAL)75.0 mm
Usable Length — mm (LU)32.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)4
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number8030344
EAN7320760950647
File Type Download
S7685.0 — 3D Model STP Download
S7685.0 — 2D Model DXF Download
S7685.0 — Line Drawing PDF Download
