S7686.0
S7686.0
S7686.0
S7686.0

S7686.0

UGC DOR8030345
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$91.44 CAD - $91.44 CAD
$91.44 CAD
$91.44 CAD - $91.44 CAD
$91.44 CAD

Vendu en lots de : 1

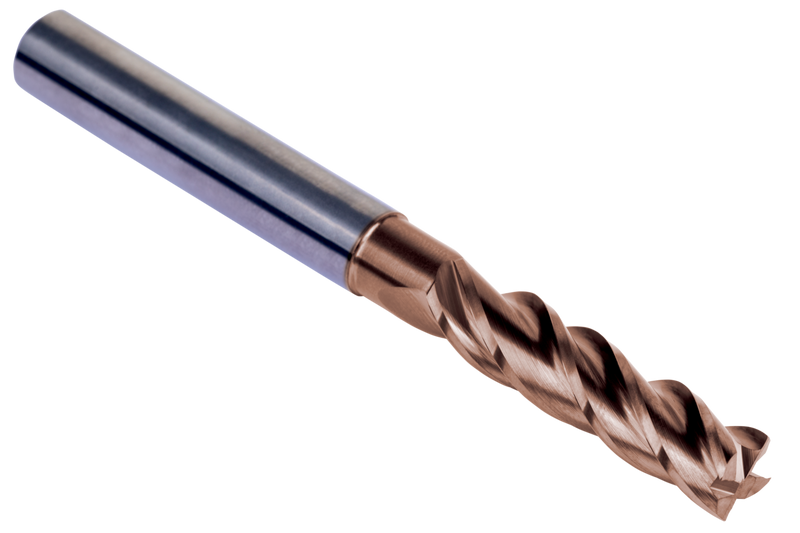

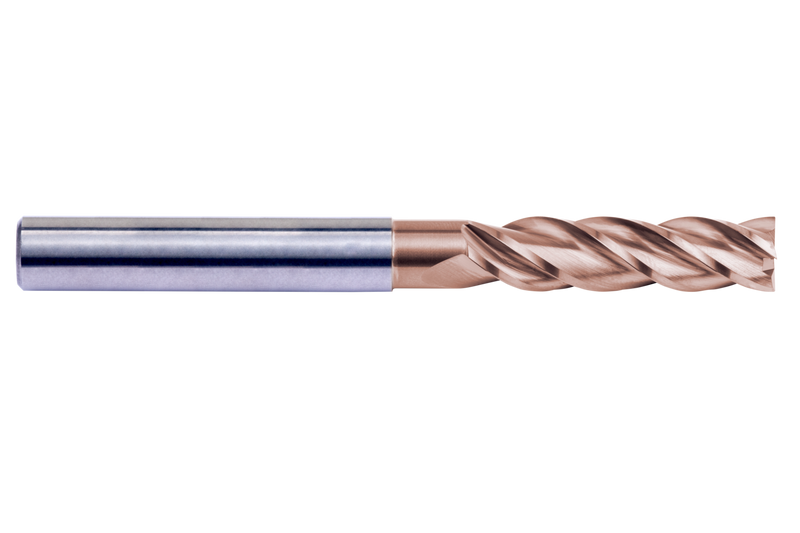

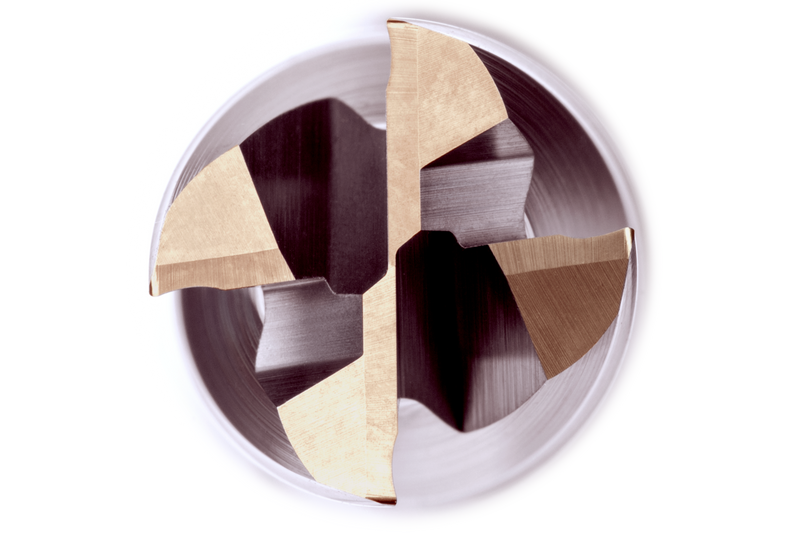

Fraise en bout série longue à 4 dents, diamètre 6mm avec une longueur de coupe de 25mm, longueur totale de 75mm, longueur utile de 32mm avec dégagement de col et des rayons de coin de 0.1mm, selon le standard DORMER avec une queue cylindrique de 6mm, carbure monobloc avec revêtement TiSiN, hélice différentielle et angle de coupe de 10° pour le fraisage d'épaulements et le plongée dans l'acier et l'acier moulé, l'acier inoxydable, la fonte ou les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S7686.0
GradeTiSiN
Product Number8030345
Product FamilyS768
Insert Geometry
Corner Radius — in (RE)0.0039"
Corner Radius — mm (RE)0.1 mm
Depth of Cut Max — in (APMX)0.9843"
Depth of Cut Max — mm (APMX)25.0 mm

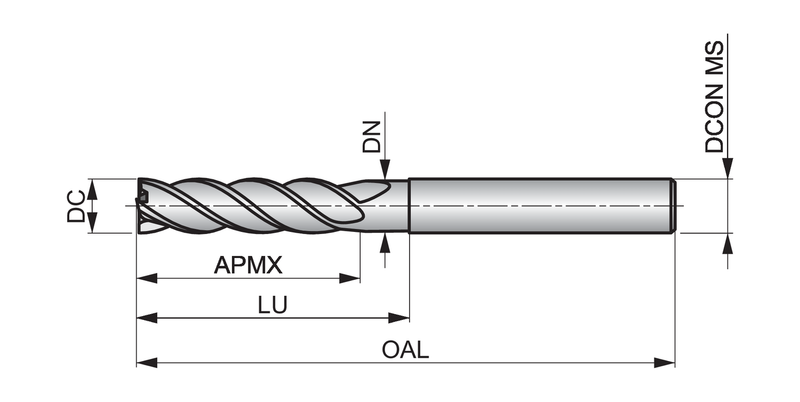

Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)2.9528"
Overall Length — mm (OAL)75.0 mm
Usable Length — mm (LU)32.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)4
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number8030345
EAN7320760950654
File Type Download
S7686.0 — 3D Model STP Download
S7686.0 — 2D Model DXF Download
S7686.0 — Line Drawing PDF Download
