UGC DOR8030347
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$170.20 CAD - $170.20 CAD
$170.20 CAD
$170.20 CAD - $170.20 CAD
$170.20 CAD

Vendu en lots de : 1

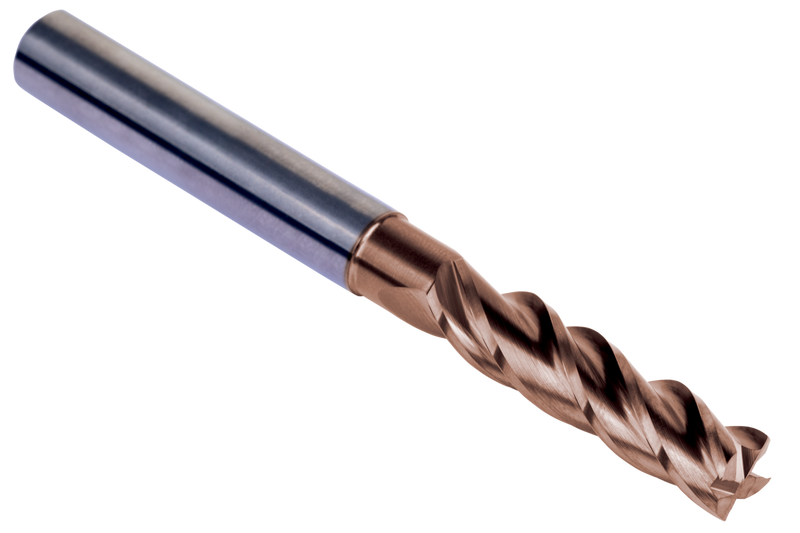

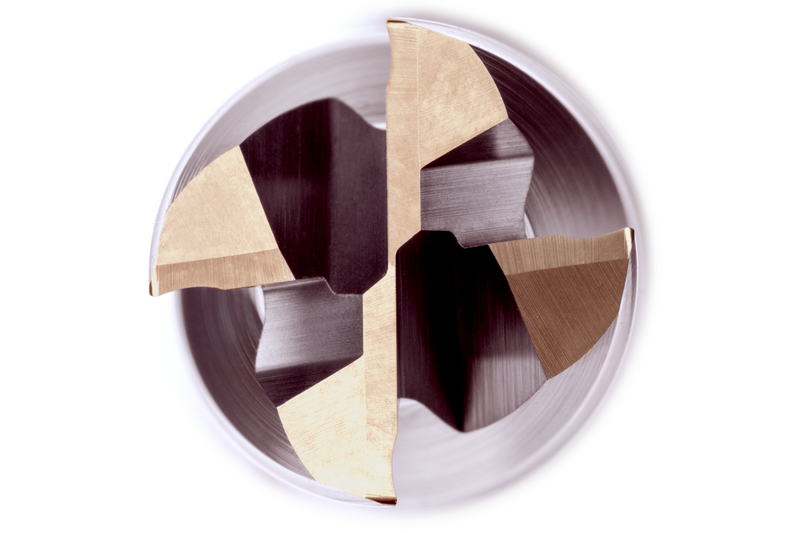

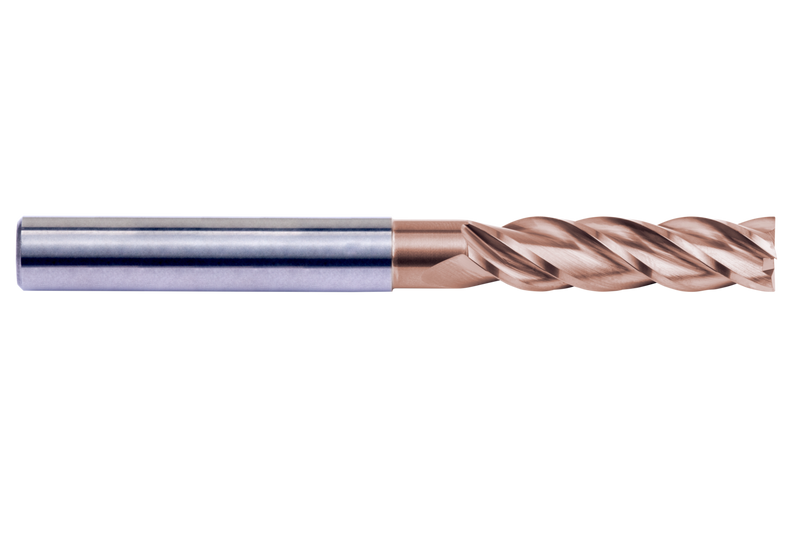

Fraise en bout série longue à 4 dents, diamètre 10mm avec une longueur de coupe de 40mm, longueur totale de 100mm, portée de 50mm avec dégagement et rayons de coin de 0.2mm, selon la norme DORMER avec une queue cylindrique de 10mm, en carbure monobloc avec revêtement TiSiN, hélice inégale et angle de coupe de 10° pour le fraisage d'épaulement et le fraisage en plongée dans l'acier et l'acier moulé, l'acier inoxydable, la fonte ou les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S76810.0
GradeTiSiN
Product Number8030347
Product FamilyS768

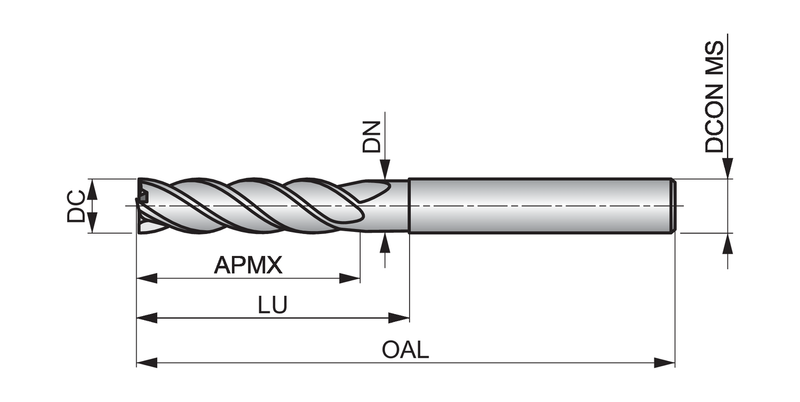

Insert Geometry
Corner Radius — in (RE)0.0079"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)1.5748"
Depth of Cut Max — mm (APMX)40.0 mm
Dimensions
Cutting Diameter — in (DC)0.3937"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Usable Length — mm (LU)50.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)4
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number8030347
EAN7320760950678
File Type Download
S76810.0 — 3D Model STP Download
S76810.0 — 2D Model DXF Download
S76810.0 — Line Drawing PDF Download
