S76820.0
S76820.0
S76820.0
S76820.0

S76820.0

UGC DOR8030350
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$597.81 CAD - $597.81 CAD
$597.81 CAD
$597.81 CAD - $597.81 CAD
$597.81 CAD

Vendu en lots de : 1

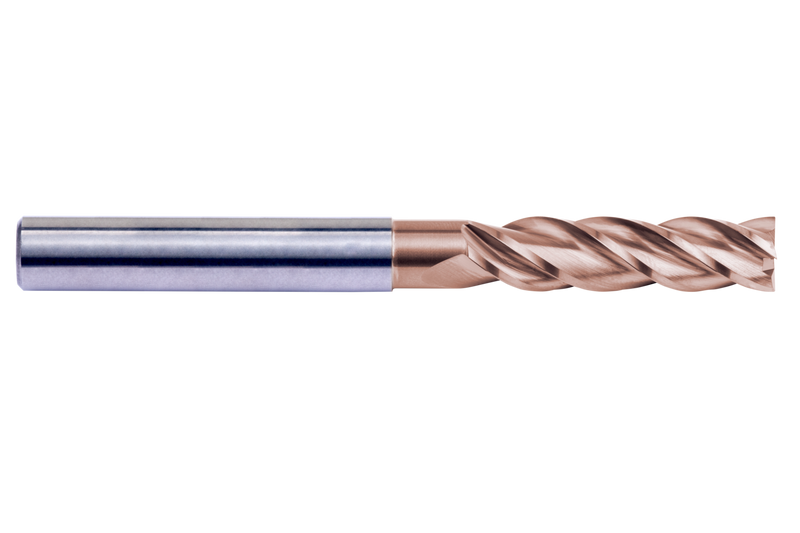

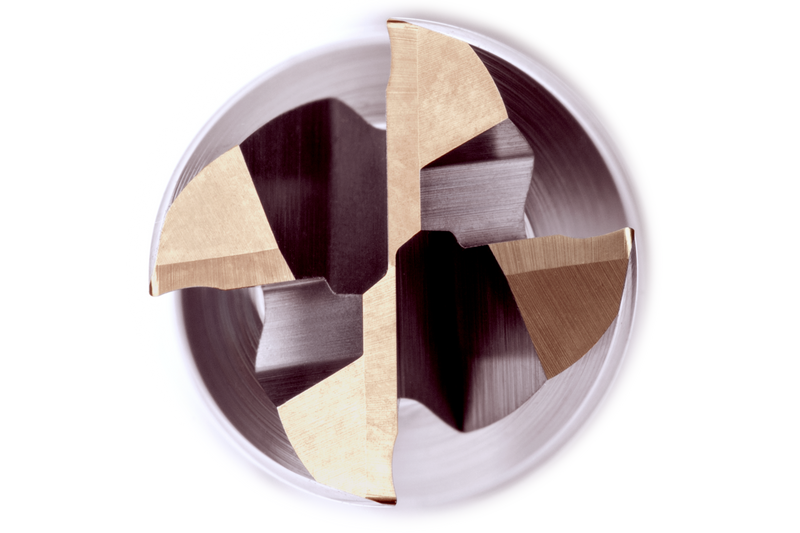

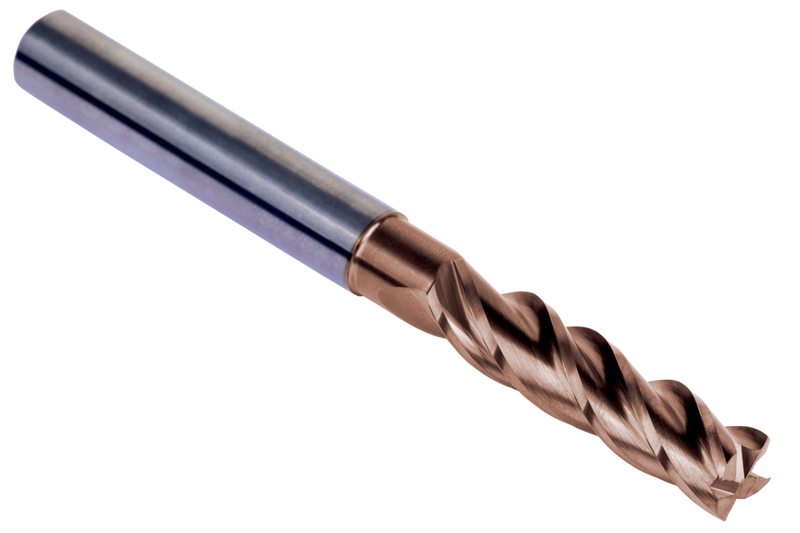

Fraise en bout série longue à 4 dents, diamètre 20mm, longueur de coupe 65mm, longueur totale 125mm, portée 75mm avec dégagement et rayons de coin de 0,3mm, selon la norme DORMER avec une queue cylindrique de 20mm, en carbure monobloc avec revêtement TiSiN, hélice inégale et angle de coupe de 10° pour le fraisage d'épaulement et en plongée dans l'acier et l'acier moulé, l'acier inoxydable, la fonte ou les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S76820.0
GradeTiSiN
Product Number8030350
Product FamilyS768
Insert Geometry
Corner Radius — in (RE)0.0118"
Corner Radius — mm (RE)0.3 mm
Depth of Cut Max — in (APMX)2.5591"
Depth of Cut Max — mm (APMX)65.0 mm

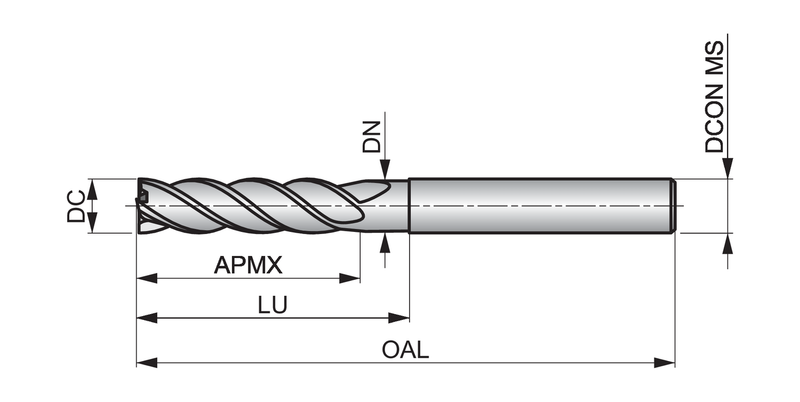

Dimensions
Cutting Diameter — in (DC)0.7874"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)4.9213"
Overall Length — mm (OAL)125.0 mm
Usable Length — mm (LU)75.0 mm
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)4
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number8030350
EAN7320760950708
File Type Download
S76820.0 — 3D Model STP Download
S76820.0 — 2D Model DXF Download
S76820.0 — Line Drawing PDF Download
