UGC DOR8030351
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$68.71 CAD - $68.71 CAD
$68.71 CAD
$68.71 CAD - $68.71 CAD
$68.71 CAD

Vendu en lots de : 1

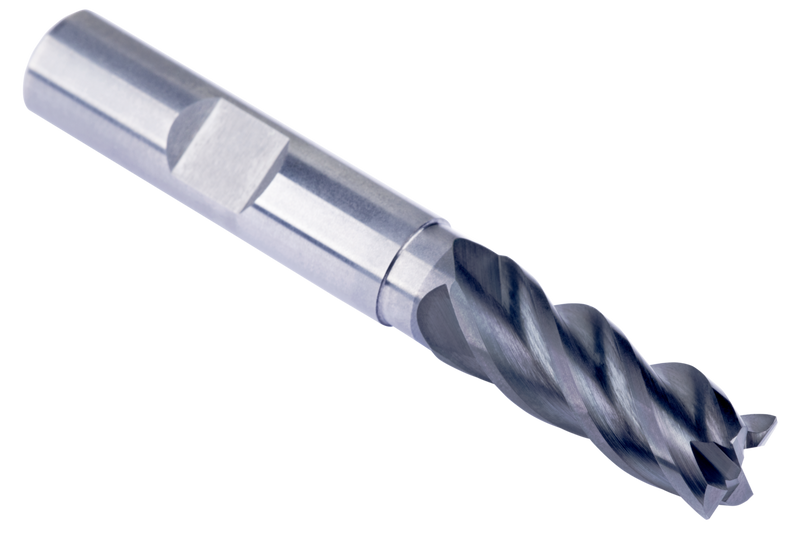

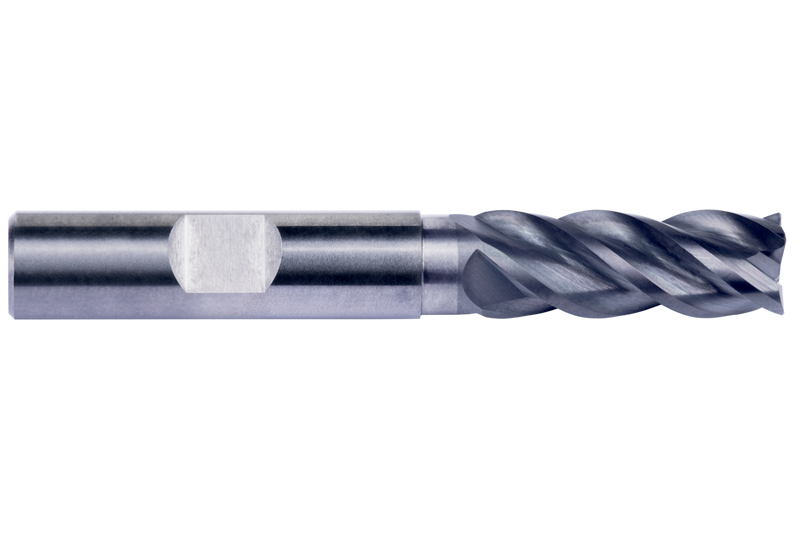

Fraise en bout de longueur standard à 4 dents, diamètre 3 mm avec une longueur de coupe de 9 mm, longueur totale de 50 mm, portée de 15 mm avec dégagement de collet et rayons de coin de 0,1 mm, selon la norme DORMER avec une queue Weldon de 6 mm, en carbure monobloc avec revêtement AlCrN, hélice de 40° et angle de dépouille de 7° pour le fraisage d'épaulements dans l'acier et l'acier moulé, l'acier inoxydable, la fonte ou les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S722HB3.0
GradeAlCrN
Product Number8030351
Product FamilyS722HB
Insert Geometry
Corner Radius — in (RE)0.0039"
Corner Radius — mm (RE)0.1 mm
Depth of Cut Max — in (APMX)0.3543"
Depth of Cut Max — mm (APMX)9.0 mm

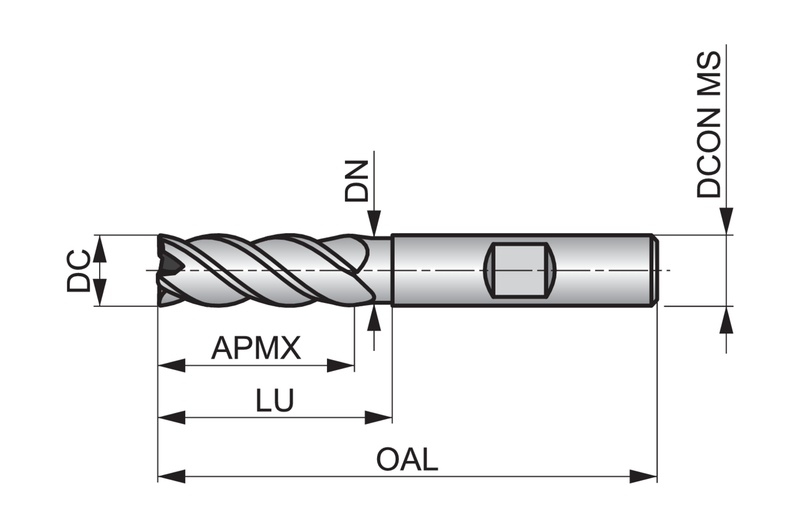

Dimensions
Cutting Diameter — in (DC)0.1181"
Cutting Diameter — mm (DC)3.0 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Usable Length — mm (LU)15.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm

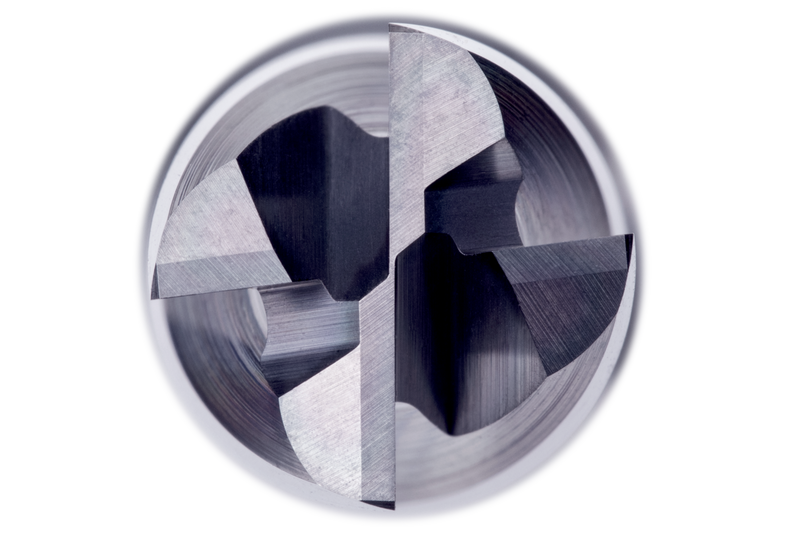

Number of Flutes (NOF)4
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HB
StandardNorme de travail
Reference Numbers
EDP Number8030351
EAN7320760950715
File Type Download
S722HB3.0 — 3D Model STP Download
S722HB3.0 — 2D Model DXF Download
S722HB3.0 — Line Drawing PDF Download
