UGC DOR8030353
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$76.64 CAD - $76.64 CAD
$76.64 CAD
$76.64 CAD - $76.64 CAD
$76.64 CAD

Vendu en lots de : 1

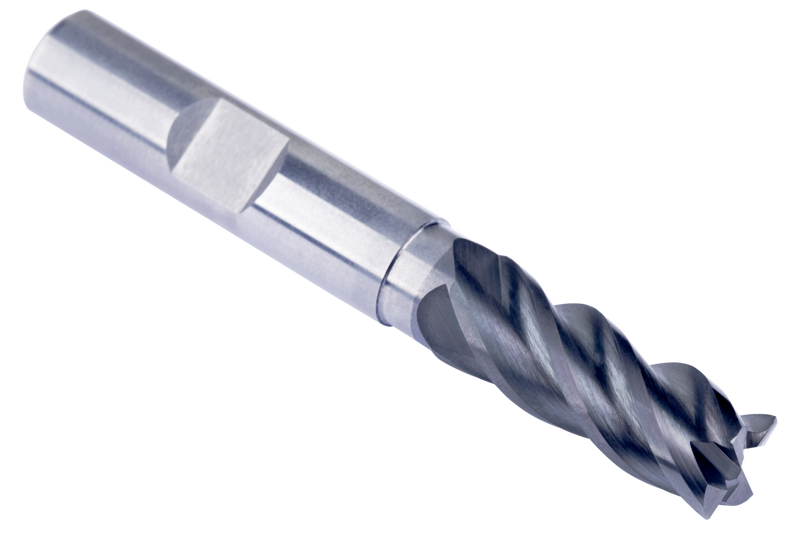

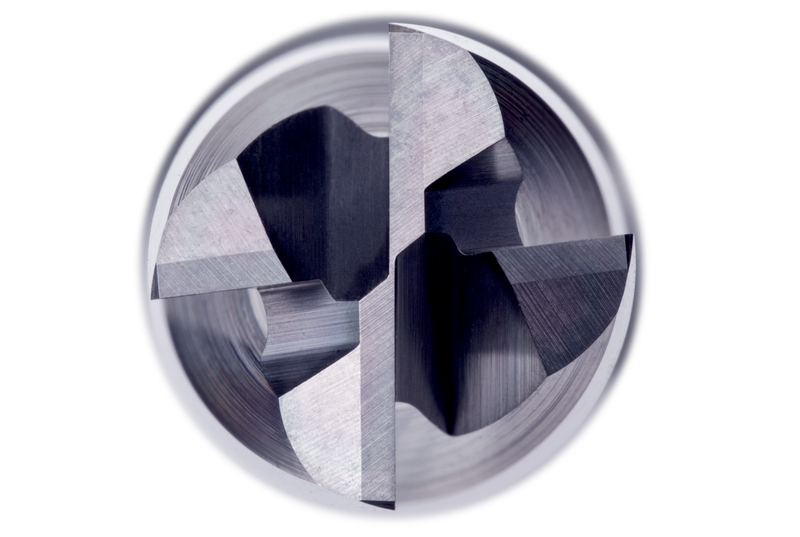

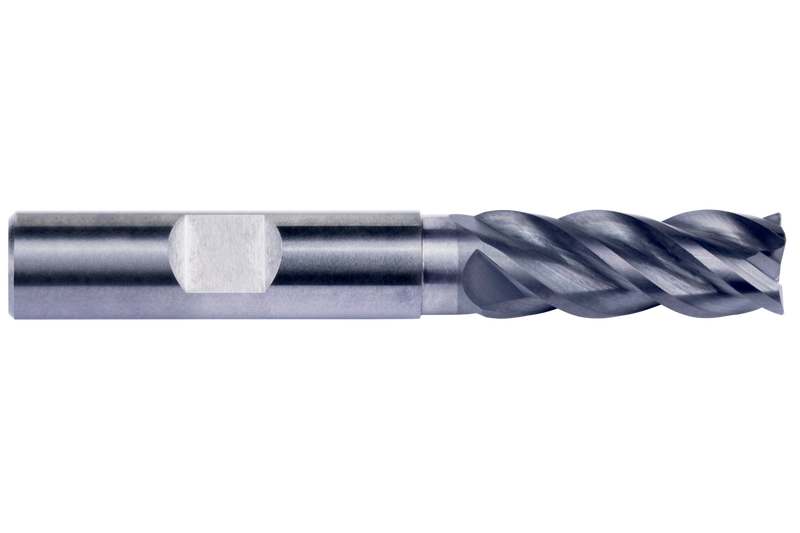

Fraise en bout de longueur standard à 4 dents, diamètre de 5 mm avec une longueur de coupe de 13 mm, longueur totale de 57 mm, portée de 20 mm avec dégagement de col et rayons d'angle de 0,1 mm, selon la norme DORMER avec une queue Weldon de 6 mm, carbure monobloc avec revêtement AlCrN, hélice de 40° et angle de dépouille de 7° pour le fraisage d'épaulements dans l'acier et l'acier moulé, l'acier inoxydable, la fonte ou les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S722HB5.0
GradeAlCrN
Product Number8030353
Product FamilyS722HB

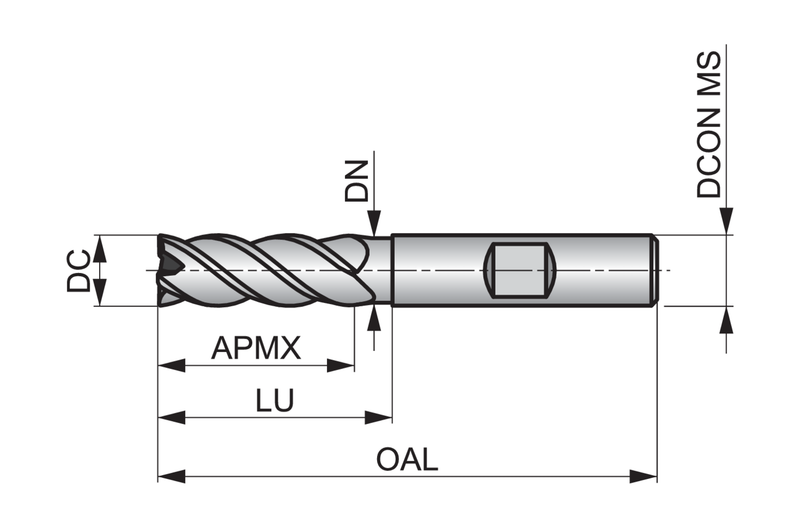

Insert Geometry
Corner Radius — in (RE)0.0039"
Corner Radius — mm (RE)0.1 mm
Depth of Cut Max — in (APMX)0.5118"
Depth of Cut Max — mm (APMX)13.0 mm
Dimensions
Cutting Diameter — in (DC)0.1969"
Cutting Diameter — mm (DC)5.0 mm
Overall Length — in (OAL)2.2441"
Overall Length — mm (OAL)57.0 mm
Usable Length — mm (LU)20.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HB
StandardNorme de travail
Reference Numbers
EDP Number8030353
EAN7320760950739
File Type Download
S722HB5.0 — 3D Model STP Download
S722HB5.0 — 2D Model DXF Download
S722HB5.0 — Line Drawing PDF Download
