UGC DOR8030355
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$106.24 CAD - $106.24 CAD
$106.24 CAD
$106.24 CAD - $106.24 CAD
$106.24 CAD

Vendu en lots de : 1

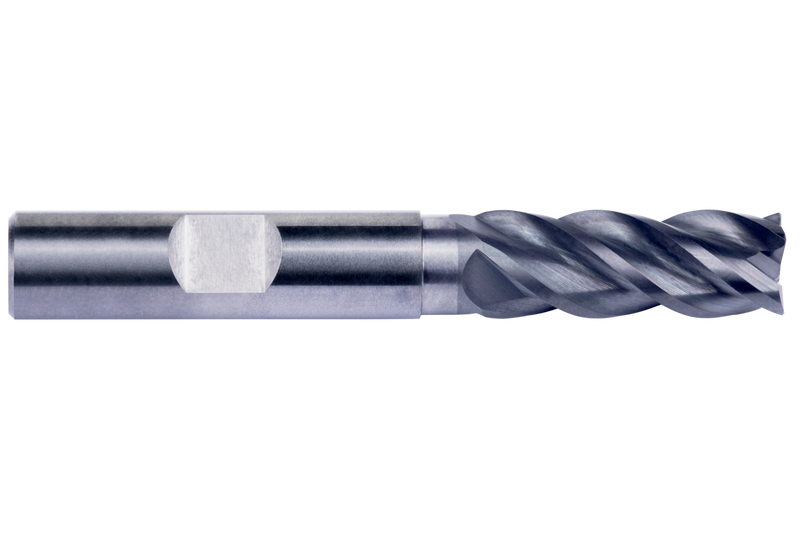

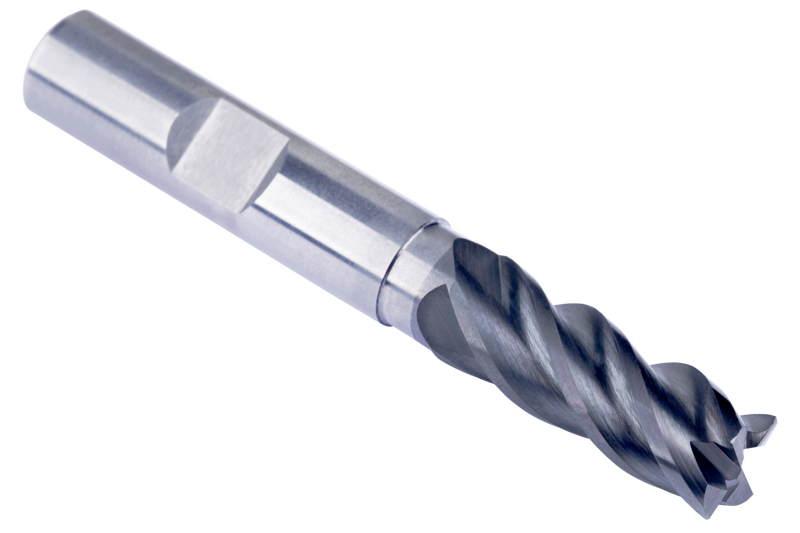

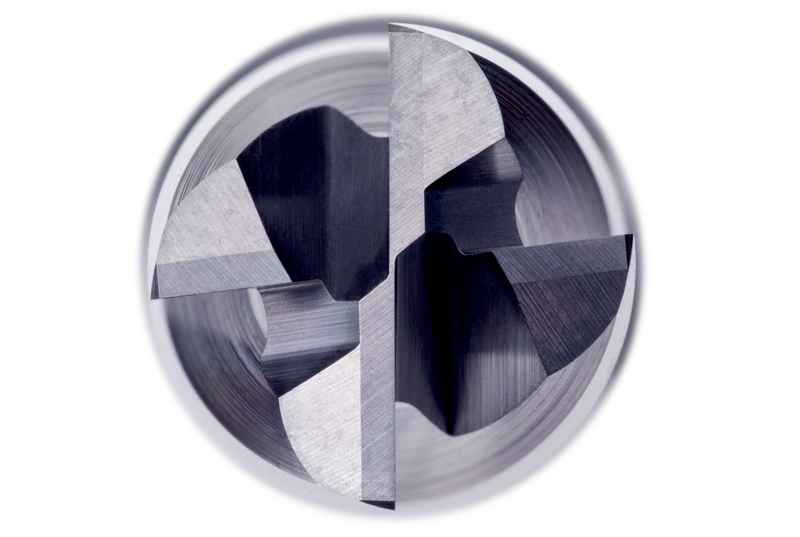

Fraise en bout longueur normale à 4 dents, diamètre 8mm avec une longueur de coupe de 20mm, longueur totale de 64mm, portée de 26mm avec dégagement de col et rayons de coin de 0.2mm, selon la norme DORMER avec une queue Weldon de 8mm, carbure monobloc avec revêtement AlCrN, hélice à 40° et angle de dépouille de 7° pour le fraisage d'épaulements dans l'acier et l'acier moulé, l'acier inoxydable, la fonte ou les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S722HB8.0
GradeAlCrN
Product Number8030355
Product FamilyS722HB
Insert Geometry
Corner Radius — in (RE)0.0079"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.7874"
Depth of Cut Max — mm (APMX)20.0 mm

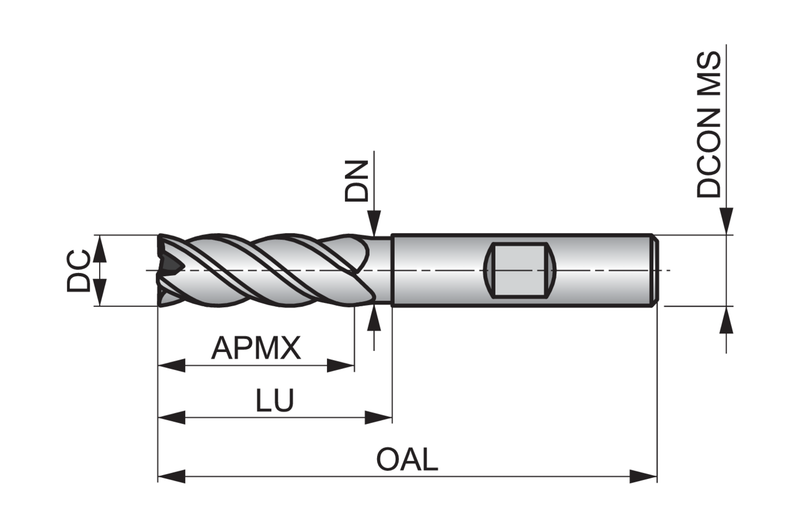

Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)2.5197"
Overall Length — mm (OAL)64.0 mm
Usable Length — mm (LU)26.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HB
StandardNorme de travail
Reference Numbers
EDP Number8030355
EAN7320760950753
File Type Download
S722HB8.0 — 3D Model STP Download
S722HB8.0 — 2D Model DXF Download
S722HB8.0 — Line Drawing PDF Download
