UGC DOR8030356
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$141.13 CAD - $141.13 CAD
$141.13 CAD
$141.13 CAD - $141.13 CAD
$141.13 CAD

Vendu en lots de : 1

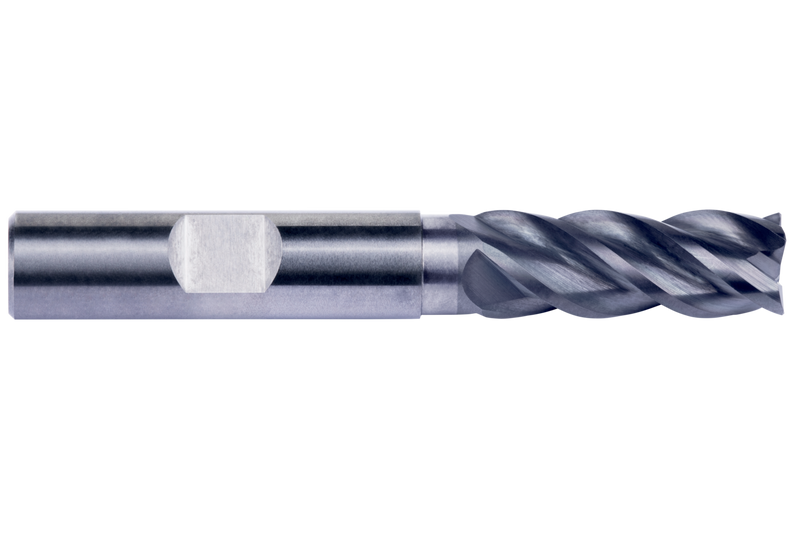

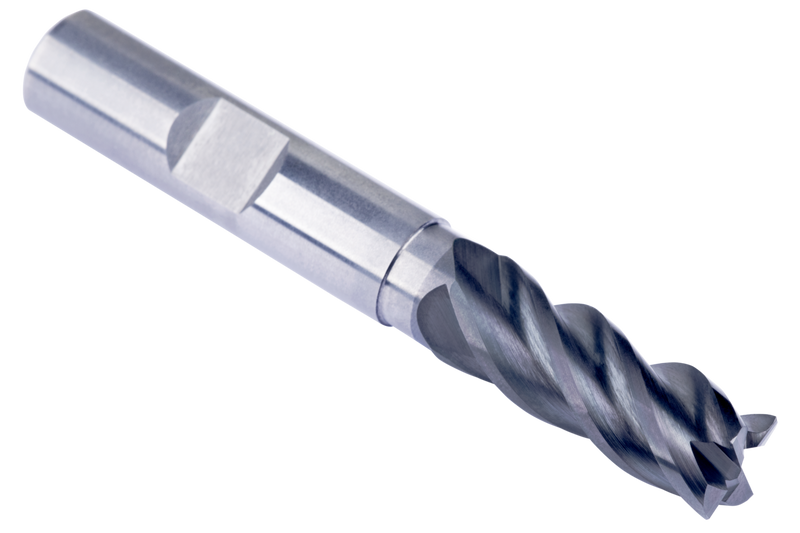

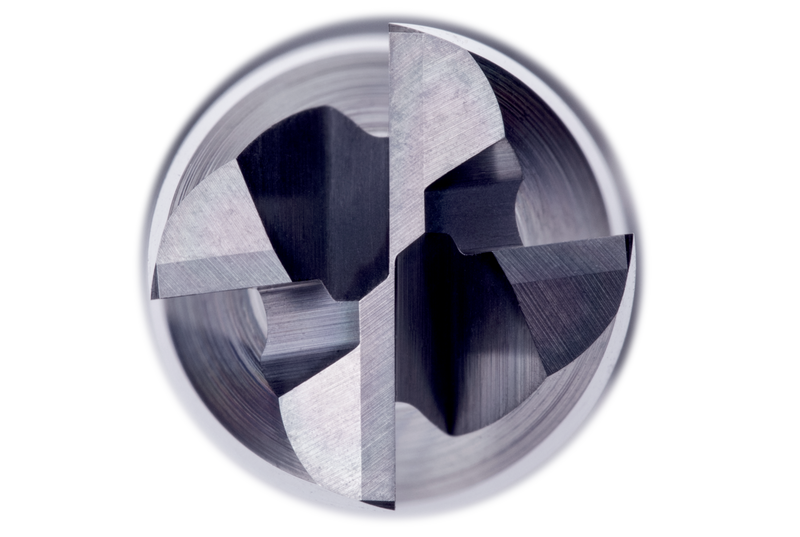

Fraise à queue de longueur standard 4 dents, diamètre 10 mm avec longueur de coupe 27 mm, longueur totale 70 mm, portée de 32 mm avec dégagement de col et rayons de coin de 0,2 mm, selon la norme DORMER, avec queue Weldon de 10 mm, carbure monobloc avec revêtement AlCrN, hélice de 40° et angle de dépouille de 7° pour le surfaçage-dressage dans l'acier et l'acier moulé, l'acier inoxydable, la fonte ou les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S722HB10.0
GradeAlCrN
Product Number8030356
Product FamilyS722HB

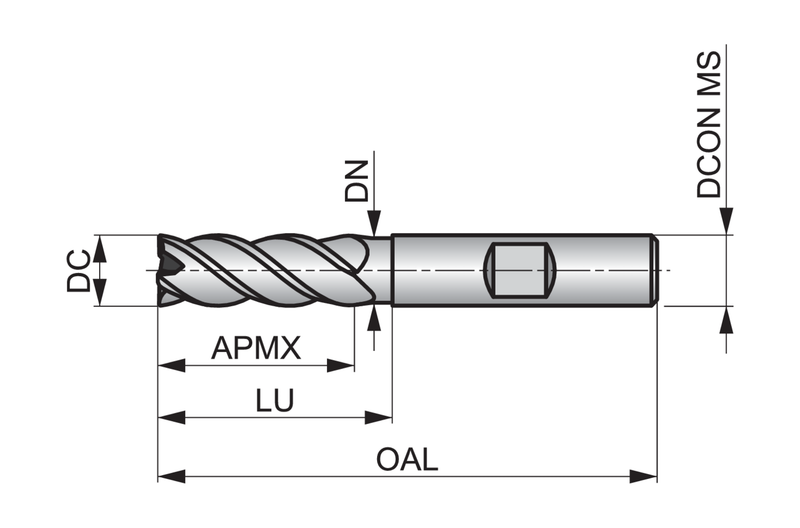

Insert Geometry
Corner Radius — in (RE)0.0079"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)1.063"
Depth of Cut Max — mm (APMX)27.0 mm
Dimensions
Cutting Diameter — in (DC)0.3937"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)2.7559"
Overall Length — mm (OAL)70.0 mm
Usable Length — mm (LU)32.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HB
StandardNorme de travail
Reference Numbers
EDP Number8030356
EAN7320760950760
File Type Download
S722HB10.0 — 3D Model STP Download
S722HB10.0 — 2D Model DXF Download
S722HB10.0 — Line Drawing PDF Download
