UGC DOR8030359
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$320.31 CAD - $320.31 CAD
$320.31 CAD
$320.31 CAD - $320.31 CAD
$320.31 CAD

Vendu en lots de : 1

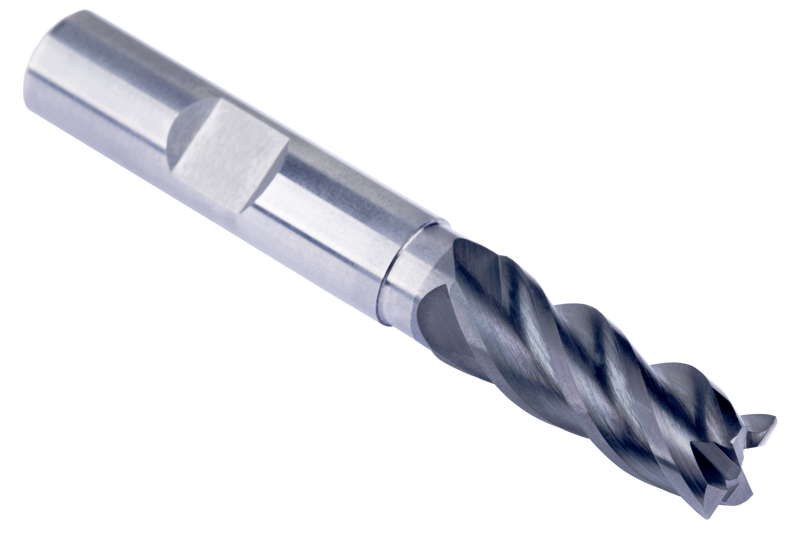

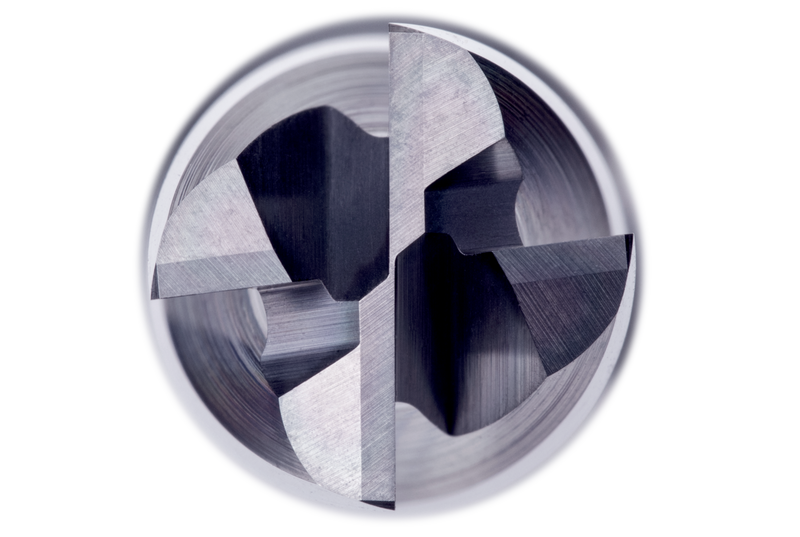

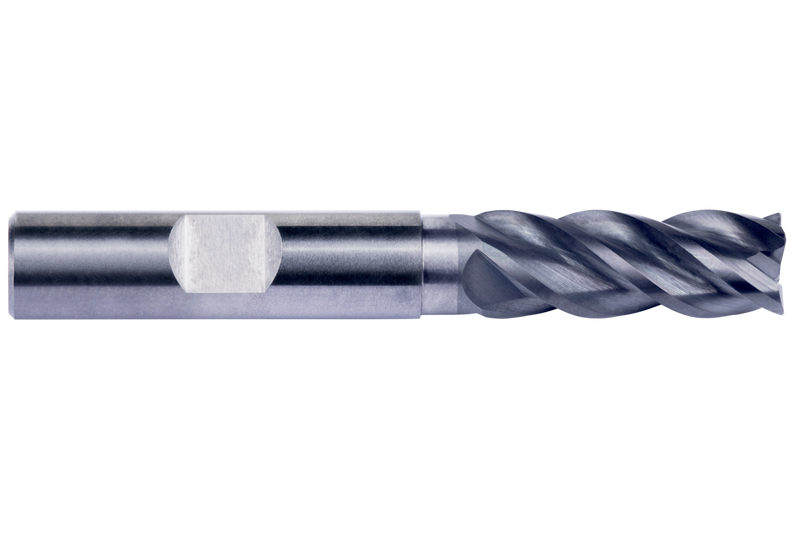

Fraise en bout de longueur normale à 4 dents, diamètre 16 mm avec longueur de coupe de 32 mm, longueur totale de 92 mm, portée de 42 mm avec dégagement de col et rayons de coin de 0,2 mm, conforme à la norme DORMER avec une queue Weldon de 16 mm, en carbure monobloc avec revêtement AlCrN, hélice de 40° et angle de dépouille de 7° pour le fraisage d’épaulement dans l’acier et l’acier moulé, l’acier inoxydable, la fonte ou les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S722HB16.0
GradeAlCrN
Product Number8030359
Product FamilyS722HB

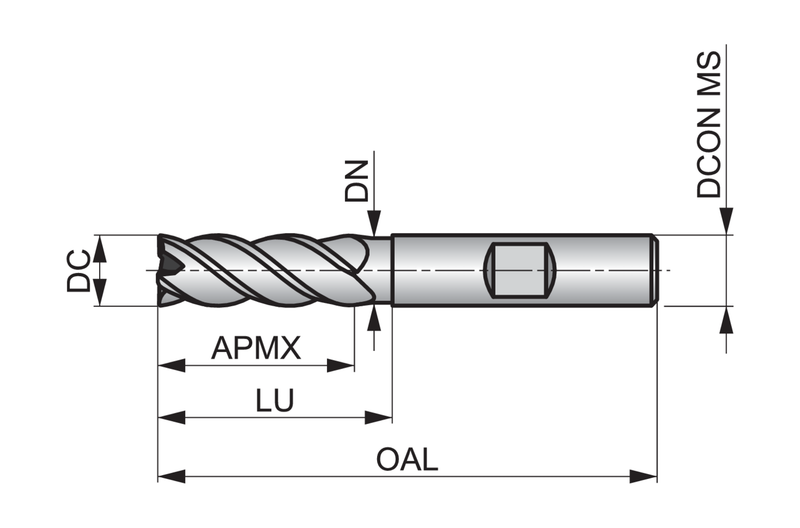

Insert Geometry
Corner Radius — in (RE)0.0079"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)1.2598"
Depth of Cut Max — mm (APMX)32.0 mm
Dimensions
Cutting Diameter — in (DC)0.6299"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)3.622"
Overall Length — mm (OAL)92.0 mm
Usable Length — mm (LU)42.0 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HB
StandardNorme de travail
Reference Numbers
EDP Number8030359
EAN7320760950791
File Type Download
S722HB16.0 — 3D Model STP Download
S722HB16.0 — 2D Model DXF Download
S722HB16.0 — Line Drawing PDF Download
