UGC DOR8030361
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$498.44 CAD - $498.44 CAD
$498.44 CAD
$498.44 CAD - $498.44 CAD
$498.44 CAD

Vendu en lots de : 1

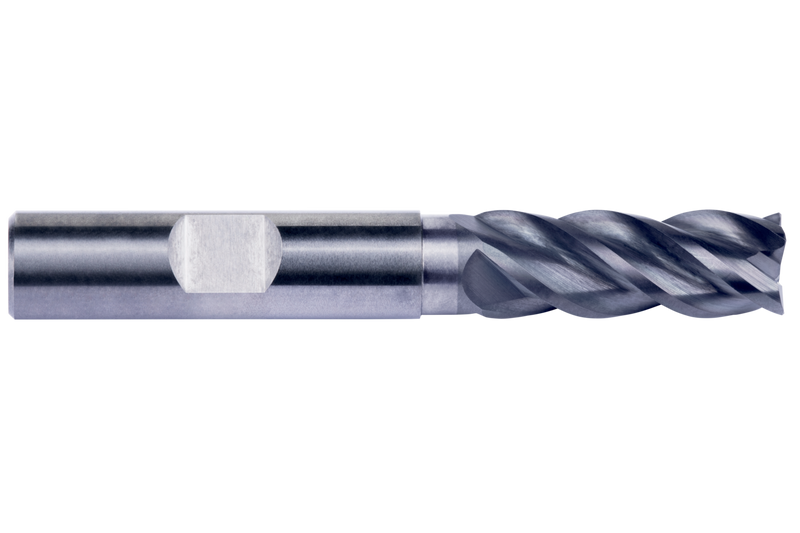

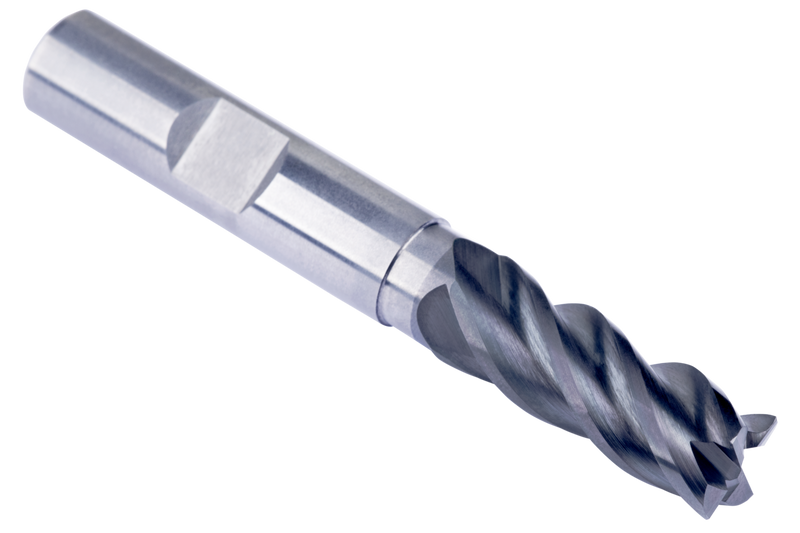

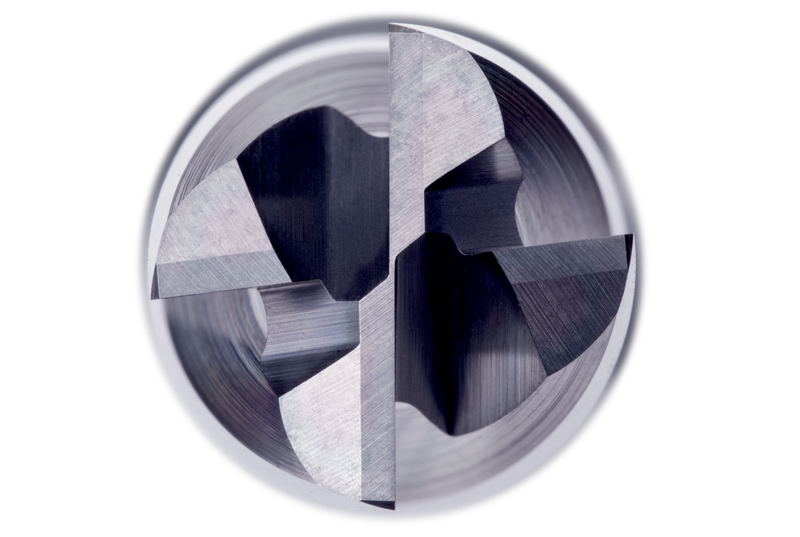

Fraise en bout longueur normale à 4 dents, diamètre 20 mm, longueur de coupe 38 mm, longueur totale 104 mm, dégagement de 50 mm avec dépouille de col et rayons d'angle de 0,2 mm, conforme à la norme DORMER avec une queue Weldon de 20 mm, en carbure monobloc avec revêtement AlCrN, hélice à 40° et angle de dépouille de 7° pour le surfaçage dans l'acier et l'acier moulé, l'acier inoxydable, la fonte ou les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S722HB20.0
GradeAlCrN
Product Number8030361
Product FamilyS722HB
Insert Geometry
Corner Radius — in (RE)0.0079"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)1.4961"
Depth of Cut Max — mm (APMX)38.0 mm

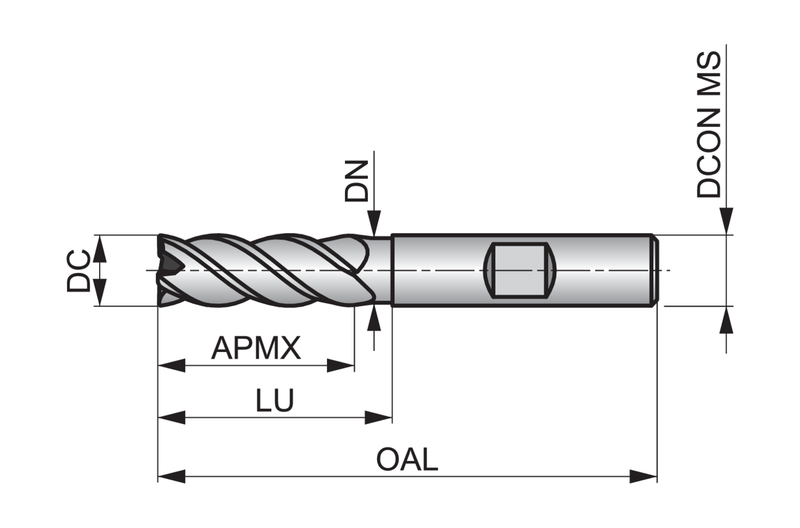

Dimensions
Cutting Diameter — in (DC)0.7874"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)4.0945"
Overall Length — mm (OAL)104.0 mm
Usable Length — mm (LU)50.0 mm
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HB
StandardNorme de travail
Reference Numbers
EDP Number8030361
EAN7320760950814
File Type Download
S722HB20.0 — 3D Model STP Download
S722HB20.0 — 2D Model DXF Download
S722HB20.0 — Line Drawing PDF Download
