S765HB8.0
S765HB8.0
S765HB8.0
S765HB8.0

S765HB8.0

UGC DOR8030363
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$121.57 CAD - $121.57 CAD
$121.57 CAD
$121.57 CAD - $121.57 CAD
$121.57 CAD

Vendu en lots de : 1

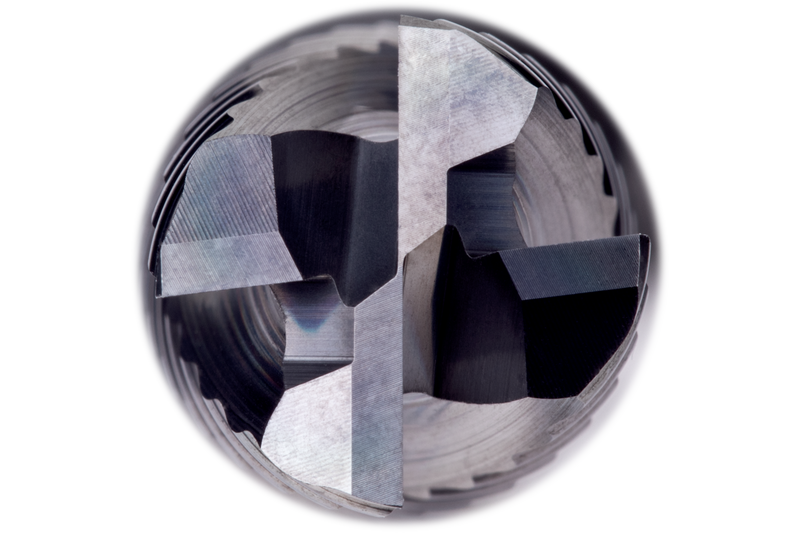

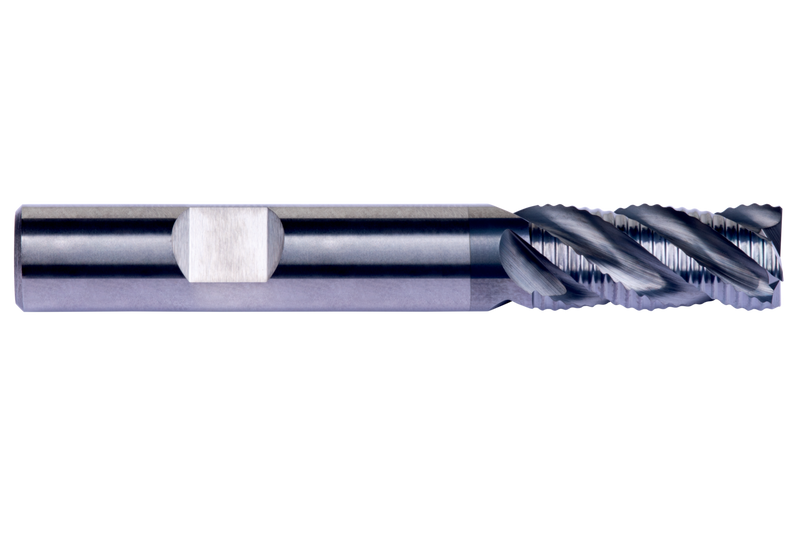

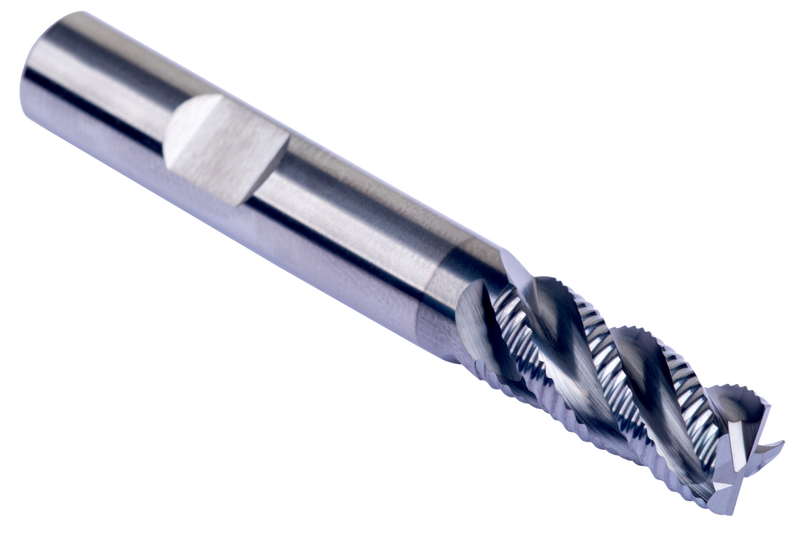

Fraise d'ébauche courte à profil d'ébauche asymétrique NRA et 4 dents, diamètre 8mm avec longueur de coupe de 20mm, longueur totale de 64mm et chanfrein d'angle de 0.2mm à 45°, selon la norme DORMER avec un attachement Weldon de 8mm, carbure monobloc avec revêtement AlCrN, hélice de 40° et angle de dépouille de 10° pour le surfaçage-dressage et le fraisage de rainures dans l'acier et l'acier moulé, l'acier inoxydable, la fonte ou les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S765HB8.0
GradeAlCrN
Product Number8030363
Product FamilyS765HB

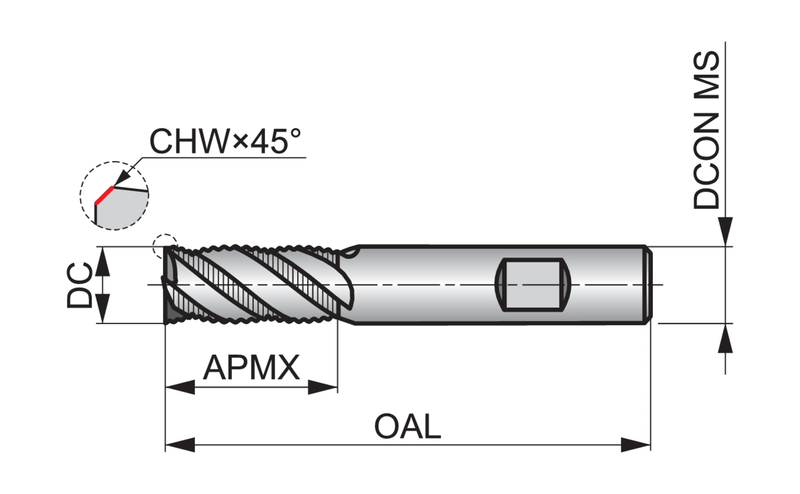

Insert Geometry
Depth of Cut Max — in (APMX)0.7874"
Depth of Cut Max — mm (APMX)20.0 mm
Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)2.5197"
Overall Length — mm (OAL)64.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HB
StandardNorme de travail
Reference Numbers
EDP Number8030363
EAN7320760950838
File Type Download
S765HB8.0 — 3D Model STP Download
S765HB8.0 — 2D Model DXF Download
S765HB8.0 — Line Drawing PDF Download
