S765HB10.0
S765HB10.0
S765HB10.0
S765HB10.0

S765HB10.0

UGC DOR8030364
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$161.21 CAD - $161.21 CAD
$161.21 CAD
$161.21 CAD - $161.21 CAD
$161.21 CAD

Vendu en lots de : 1

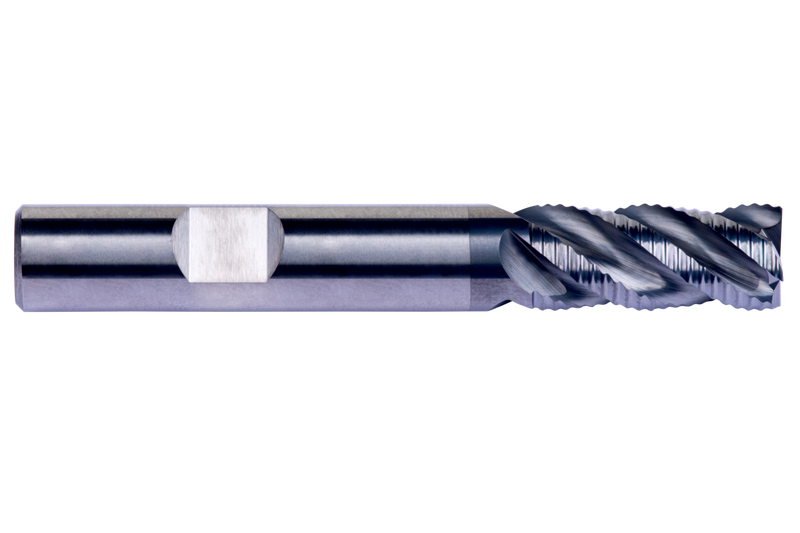

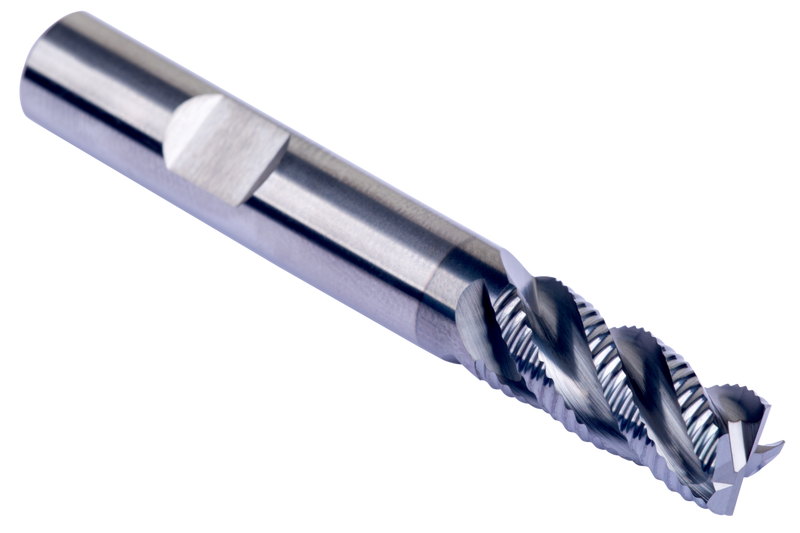

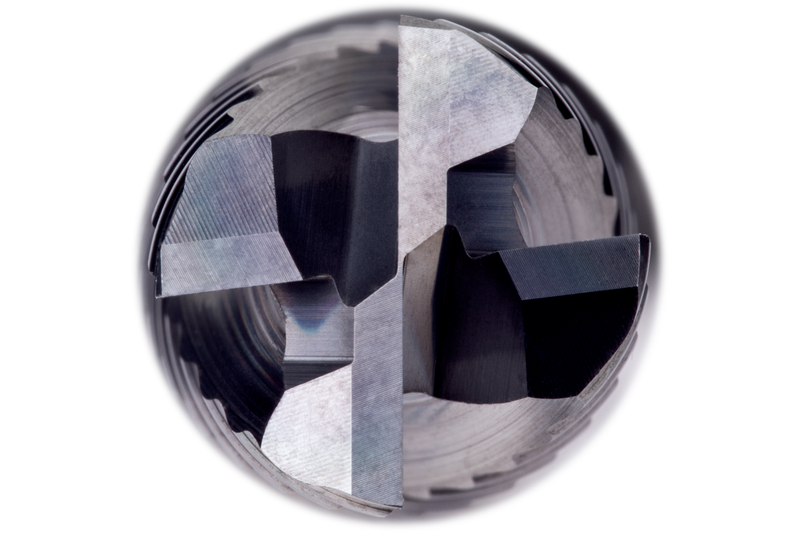

Fraise d'ébauche courte à profil asymétrique NRA à pas grossier et 4 arêtes de coupe, diamètre 10 mm avec longueur de coupe de 22 mm, longueur totale de 70 mm et chanfreins d'angle de 0,2 mm à 45°, selon la norme DORMER avec queue Weldon de 10 mm, en carbure monobloc avec revêtement AlCrN, hélice à 40° et angle de dépouille de 10° pour le fraisage d'épaulements et de rainures dans l'acier et l'acier moulé, l'acier inoxydable, la fonte ou les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S765HB10.0
GradeAlCrN
Product Number8030364
Product FamilyS765HB

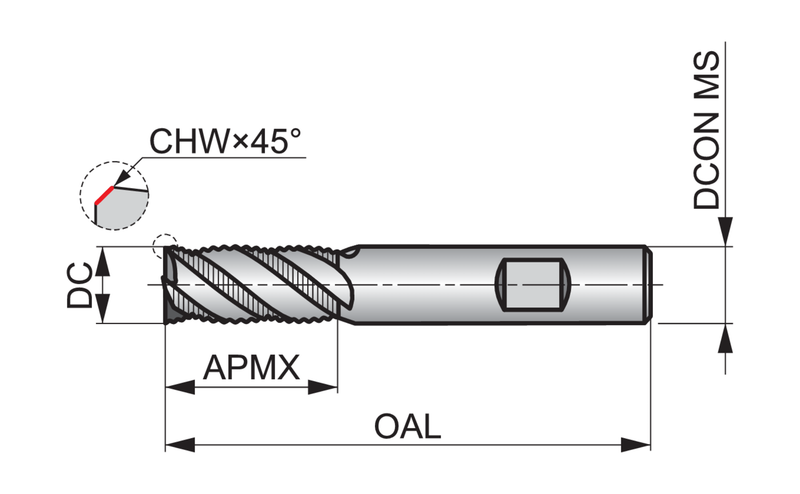

Insert Geometry
Depth of Cut Max — in (APMX)0.8661"
Depth of Cut Max — mm (APMX)22.0 mm
Dimensions
Cutting Diameter — in (DC)0.3937"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)2.7559"
Overall Length — mm (OAL)70.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HB
StandardNorme de travail
Reference Numbers
EDP Number8030364
EAN7320760950845
File Type Download
S765HB10.0 — 3D Model STP Download
S765HB10.0 — 2D Model DXF Download
S765HB10.0 — Line Drawing PDF Download
