S765HB12.0
S765HB12.0
S765HB12.0
S765HB12.0

S765HB12.0

UGC DOR8030365
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$222.53 CAD - $222.53 CAD
$222.53 CAD
$222.53 CAD - $222.53 CAD
$222.53 CAD

Vendu en lots de : 1

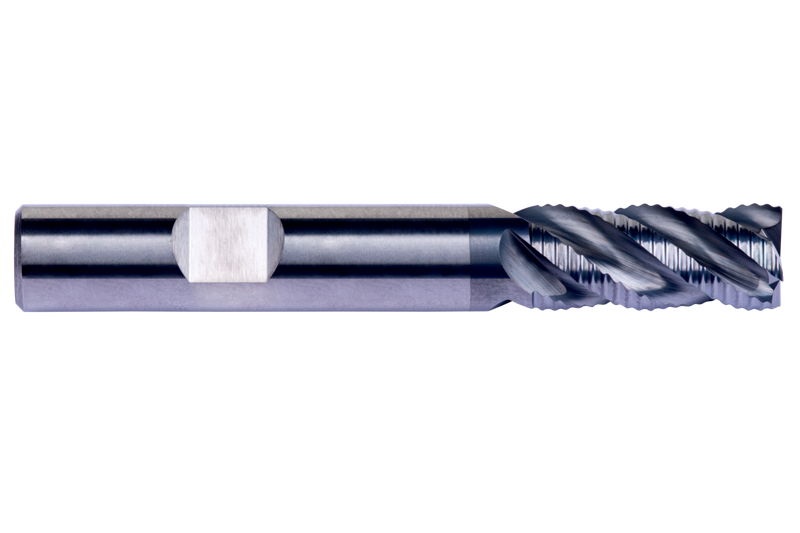

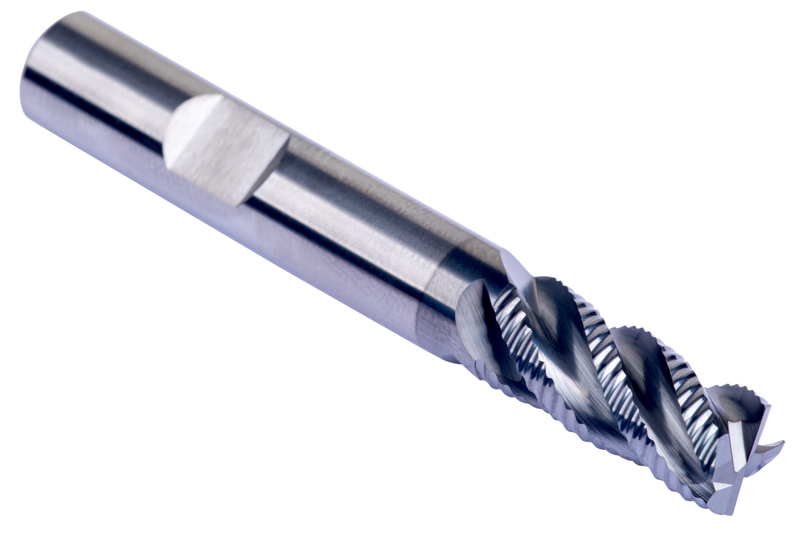

Fraise d'ébauche courte à profil d'ébauche asymétrique NRA et 4 dents, diamètre 12mm avec une longueur de coupe de 26mm, longueur totale de 75mm et des arêtes chanfreinées à 45° de 0,2mm, conforme à la norme DORMER avec une queue Weldon de 12mm, en carbure monobloc avec revêtement AlCrN, hélice à 40° et angle de dépouille de 10° pour le fraisage en bout et le fraisage de rainures dans l'acier et l'acier moulé, l'acier inoxydable, la fonte ou les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S765HB12.0
GradeAlCrN
Product Number8030365
Product FamilyS765HB
Insert Geometry
Depth of Cut Max — in (APMX)1.0236"
Depth of Cut Max — mm (APMX)26.0 mm

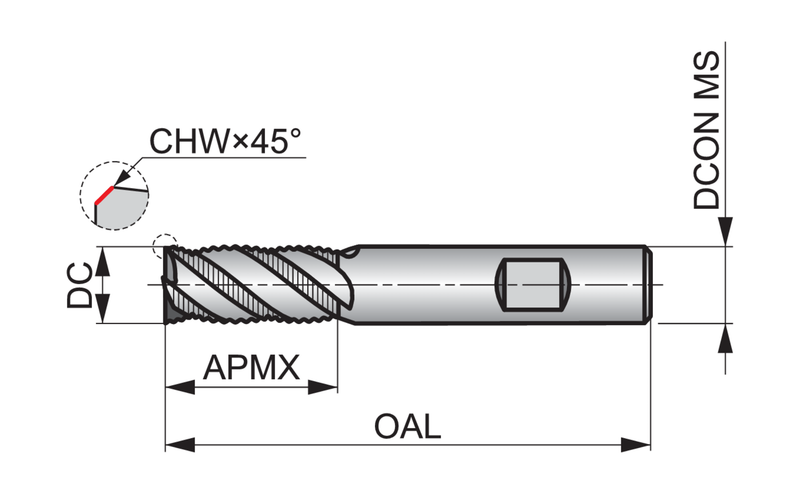

Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)2.9528"
Overall Length — mm (OAL)75.0 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm

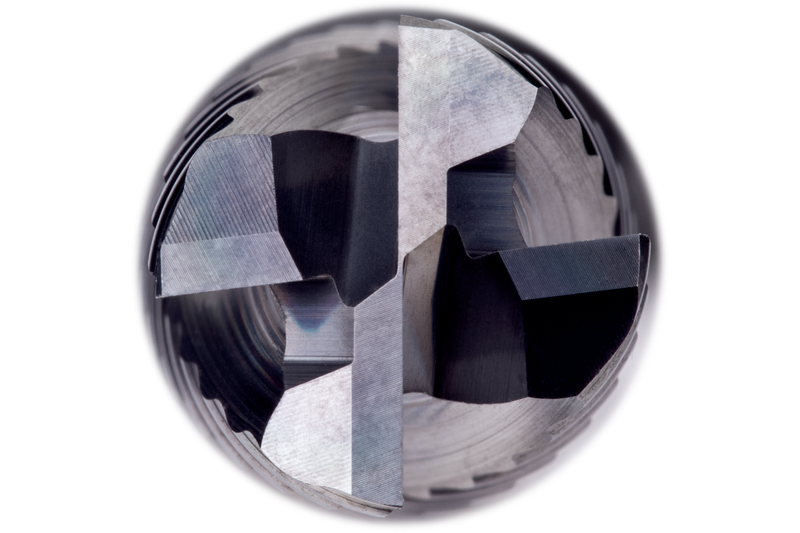

Number of Flutes (NOF)4
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HB
StandardNorme de travail
Reference Numbers
EDP Number8030365
EAN7320760950852
File Type Download
S765HB12.0 — 3D Model STP Download
S765HB12.0 — 2D Model DXF Download
S765HB12.0 — Line Drawing PDF Download
