S765HB14.0
S765HB14.0
S765HB14.0
S765HB14.0

S765HB14.0

UGC DOR8030366
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$279.09 CAD - $279.09 CAD
$279.09 CAD
$279.09 CAD - $279.09 CAD
$279.09 CAD

Vendu en lots de : 1

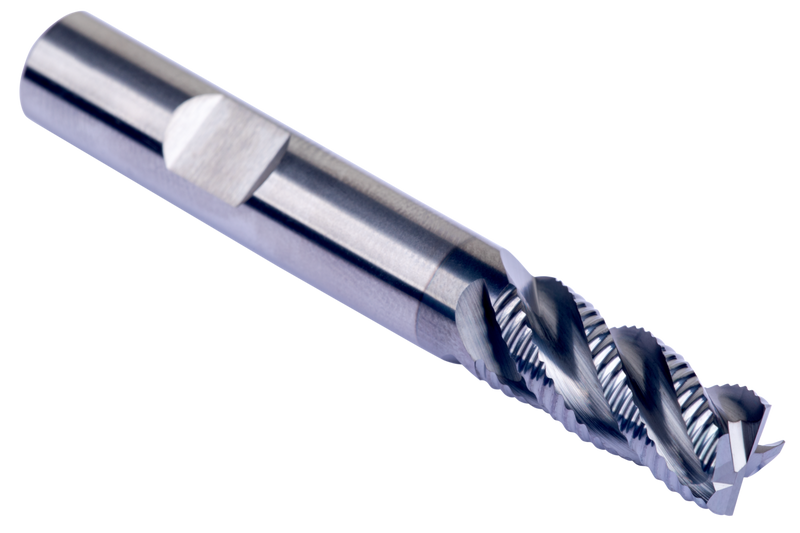

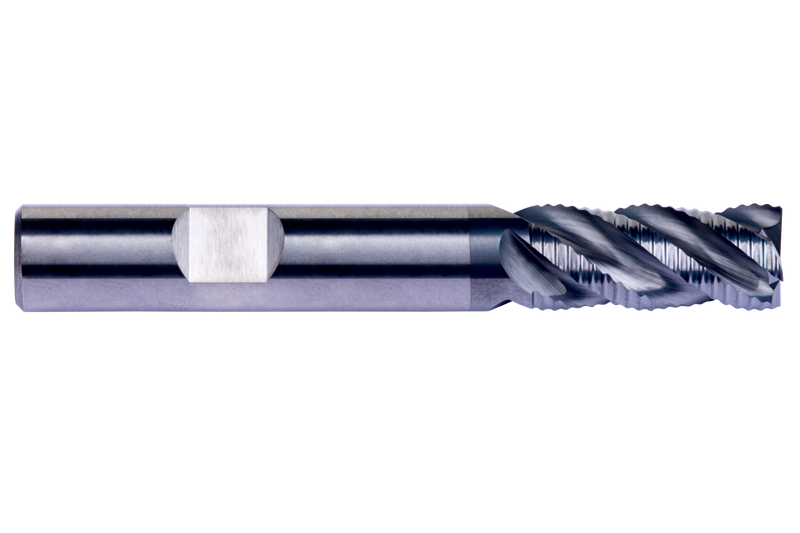

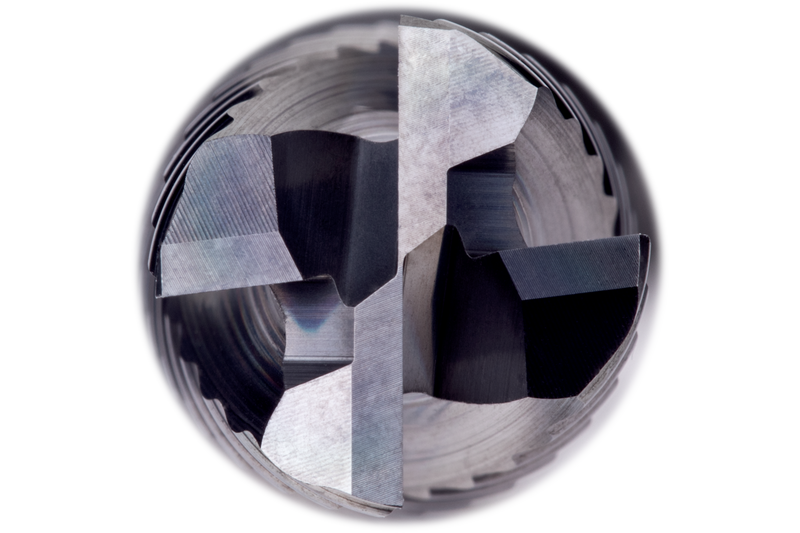

Fraise d'ébauche courte à profil NRA asymétrique à pas grossier et 4 arêtes de coupe, diamètre de 14mm, longueur de coupe de 32mm, longueur totale de 90mm et chanfrein d'angle de 0.3mm à 45°, selon la norme DORMER avec une queue Weldon de 14mm, carbure monobloc avec revêtement AlCrN, hélice de 40° et angle de dépouille de 10° pour le fraisage d'épaulement et de rainure dans l'acier et l'acier moulé, l'acier inoxydable, la fonte ou les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S765HB14.0
GradeAlCrN
Product Number8030366
Product FamilyS765HB
Insert Geometry
Depth of Cut Max — in (APMX)1.2598"
Depth of Cut Max — mm (APMX)32.0 mm

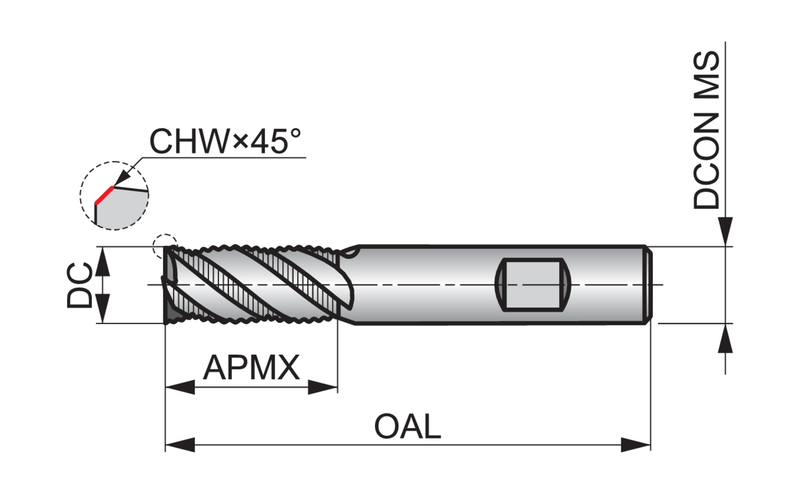

Dimensions
Cutting Diameter — in (DC)0.5512"
Cutting Diameter — mm (DC)14.0 mm
Overall Length — in (OAL)3.5433"
Overall Length — mm (OAL)90.0 mm
Connection Dia. — in (DCON)0.5512"
Connection Dia. — mm (DCON)14.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HB
StandardNorme de travail
Reference Numbers
EDP Number8030366
EAN7320760950869
File Type Download
S765HB14.0 — 3D Model STP Download
S765HB14.0 — 2D Model DXF Download
S765HB14.0 — Line Drawing PDF Download
