UGC DOR8030367
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$364.19 CAD - $364.19 CAD
$364.19 CAD
$364.19 CAD - $364.19 CAD
$364.19 CAD

Vendu en lots de : 1

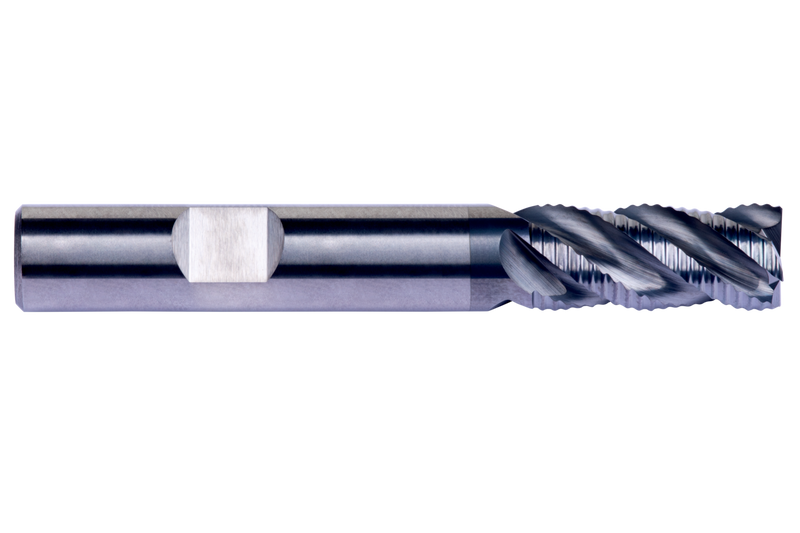

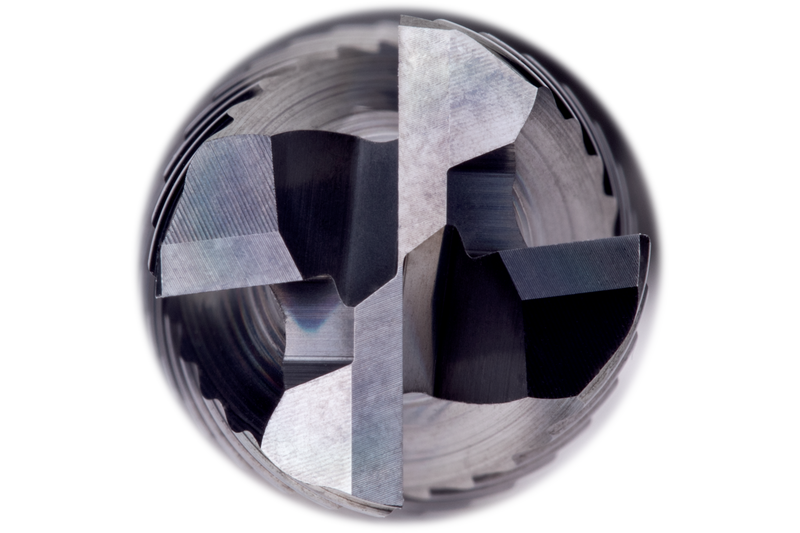

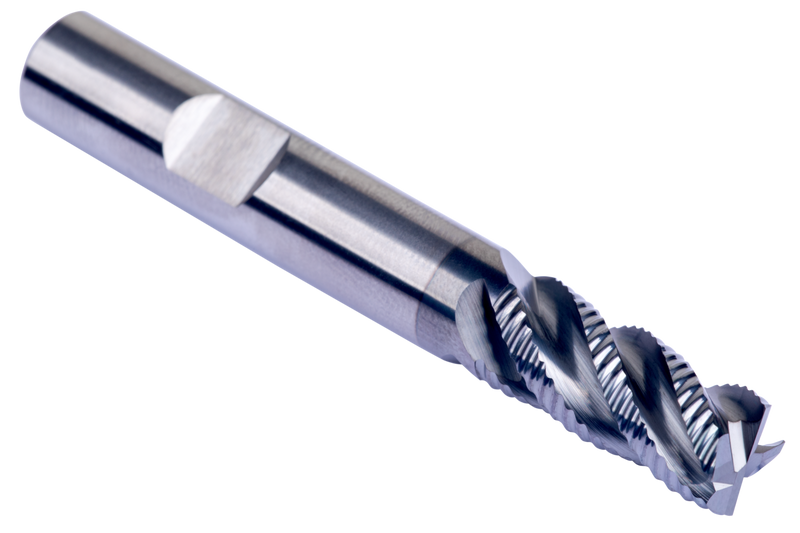

Fraise d'ébauche série courte avec profil de pas grossier asymétrique NRA et 4 dents, diamètre 16mm avec longueur de coupe de 32mm, longueur totale de 90mm et chanfreins de 0.3mm à 45° sur les arêtes, selon la norme DORMER avec queue Weldon de 16mm, carbure monobloc avec revêtement AlCrN, hélice de 40° et angle de dépouille de 10° pour le fraisage d'épaulement et le fraisage de rainures dans l'acier et l'acier moulé, l'acier inoxydable, la fonte ou les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S765HB16.0
GradeAlCrN
Product Number8030367
Product FamilyS765HB
Insert Geometry
Depth of Cut Max — in (APMX)1.2598"
Depth of Cut Max — mm (APMX)32.0 mm

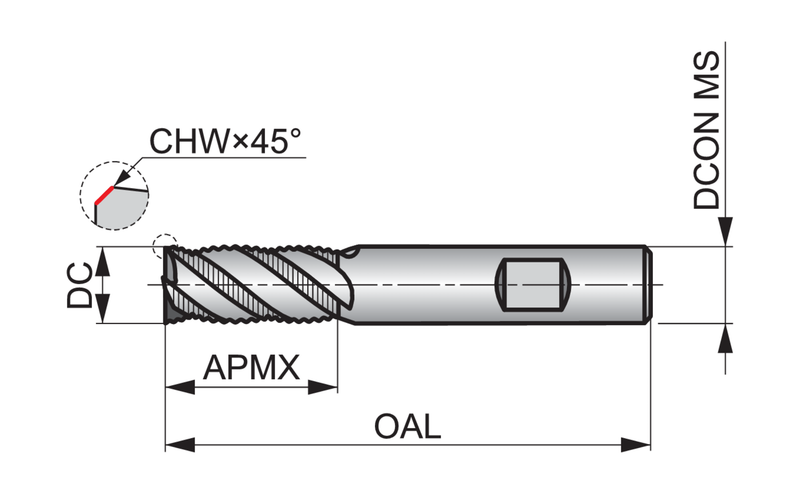

Dimensions
Cutting Diameter — in (DC)0.6299"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)3.5433"
Overall Length — mm (OAL)90.0 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HB
StandardNorme de travail
Reference Numbers
EDP Number8030367
EAN7320760950876
File Type Download
S765HB16.0 — 3D Model STP Download
S765HB16.0 — 2D Model DXF Download
S765HB16.0 — Line Drawing PDF Download
