UGC DOR8030369
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$565.57 CAD - $565.57 CAD
$565.57 CAD
$565.57 CAD - $565.57 CAD
$565.57 CAD

Vendu en lots de : 1

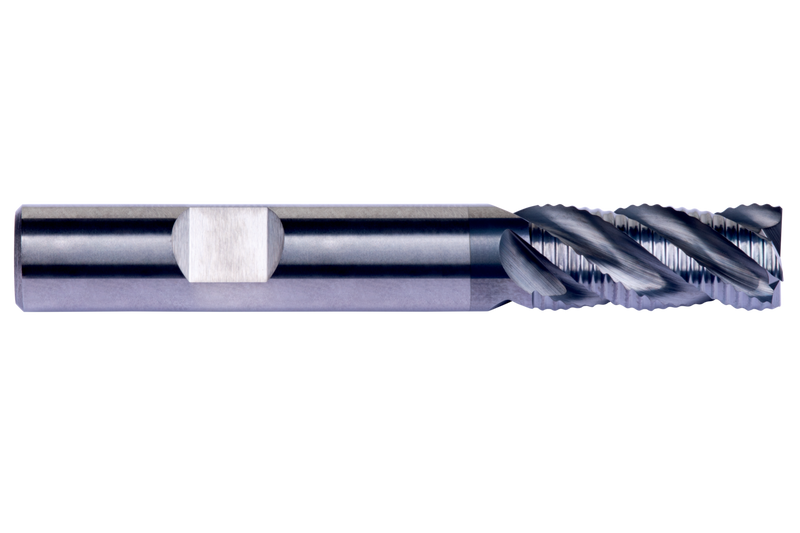

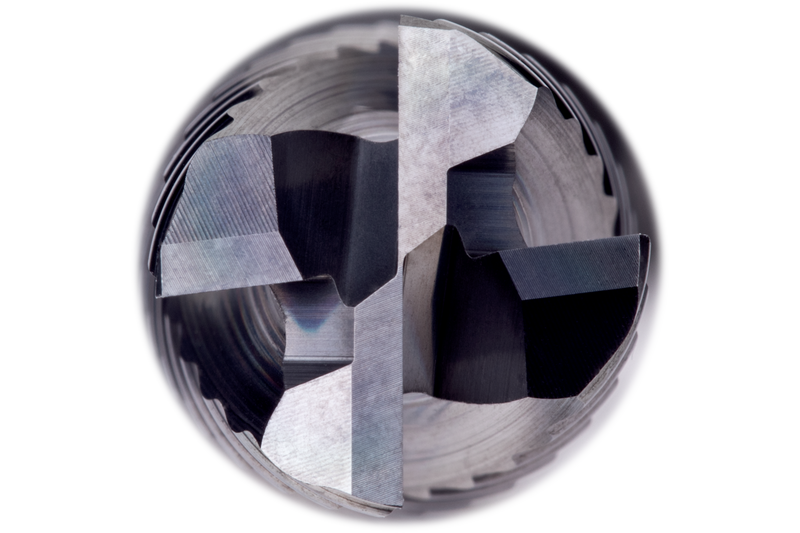

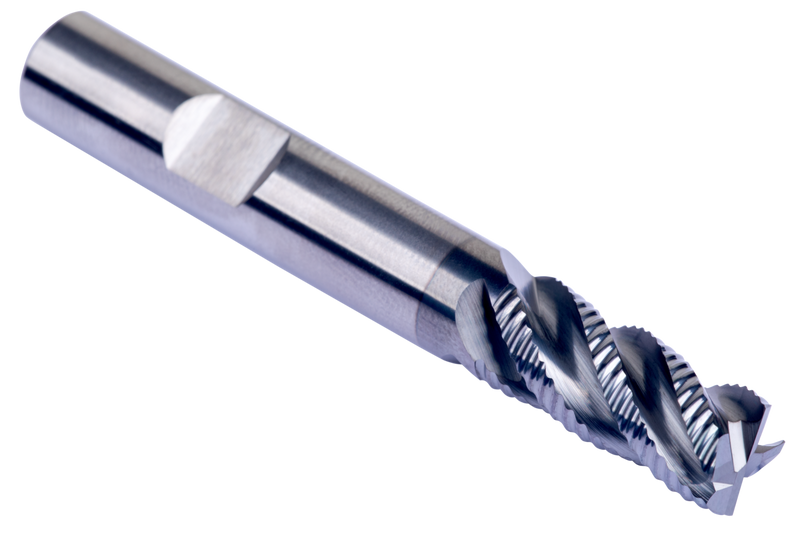

Fraise d'ébauche courte à profil NRA asymétrique à pas grossier et 4 arêtes de coupe, diamètre 20mm avec 38mm de longueur de coupe, 100mm de longueur totale et chanfreins de 0,4mm à 45° sur les arêtes, selon la norme DORMER avec un attachement Weldon de 20mm, carbure monobloc avec revêtement AlCrN, hélice de 40° et angle de dégagement de 10° pour le fraisage d'épaulements et le fraisage de rainures dans l'acier et l'acier moulé, l'acier inoxydable, la fonte ou les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S765HB20.0
GradeAlCrN
Product Number8030369
Product FamilyS765HB
Insert Geometry
Depth of Cut Max — in (APMX)1.4961"
Depth of Cut Max — mm (APMX)38.0 mm

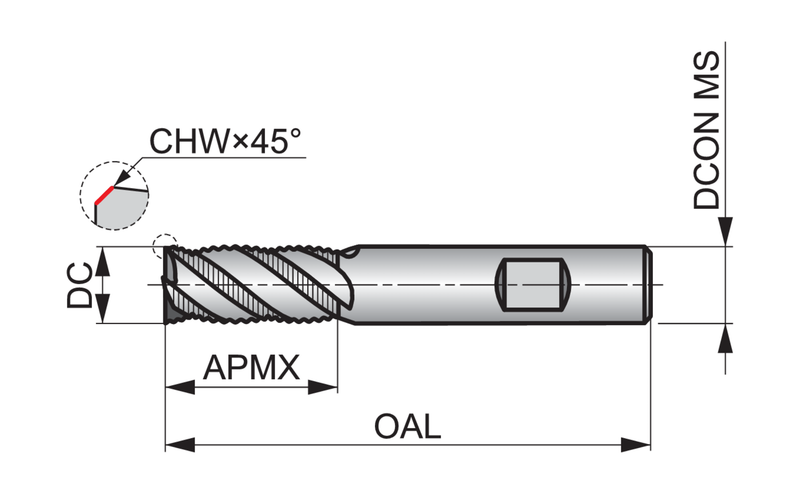

Dimensions
Cutting Diameter — in (DC)0.7874"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HB
StandardNorme de travail
Reference Numbers
EDP Number8030369
EAN7320760950890
File Type Download
S765HB20.0 — 3D Model STP Download
S765HB20.0 — 2D Model DXF Download
S765HB20.0 — Line Drawing PDF Download
