UGC DOR8030377
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$79.81 CAD - $79.81 CAD
$79.81 CAD
$79.81 CAD - $79.81 CAD
$79.81 CAD

Vendu en lots de : 1

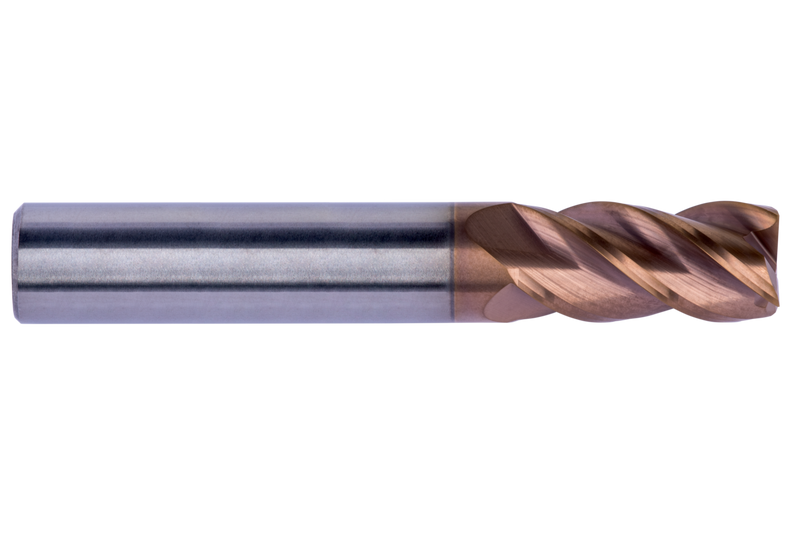

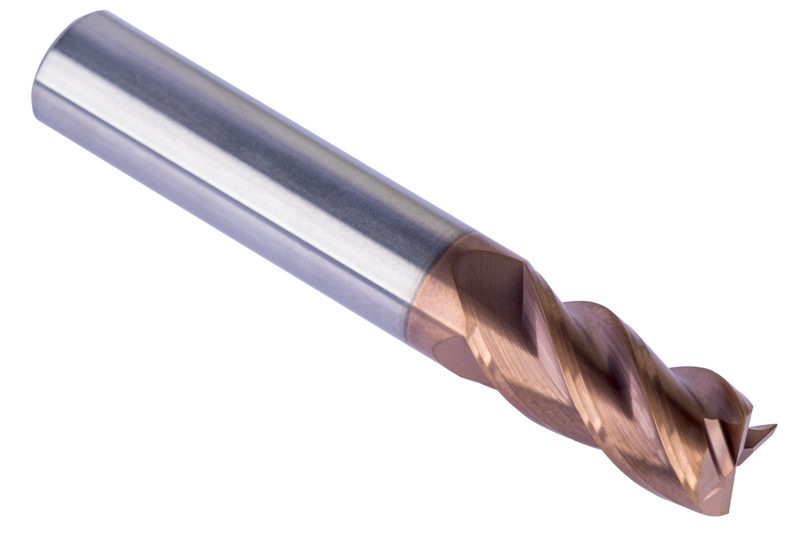

Fraise en bout de longueur standard à 4 dents, diamètre 6mm avec une longueur de coupe de 20mm et une longueur totale de 60mm, selon la norme DORMER avec une queue cylindrique de 6mm, en carbure monobloc avec revêtement TiSiN, hélice de 40° et angle de dépouille de -6° pour le fraisage d'épaulement, le plongement, le ramping, le fraisage en plongée progressive et le fraisage hélicoïdal dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S5616.0
GradeTiSiN
Product Number8030377
Product FamilyS561
Insert Geometry

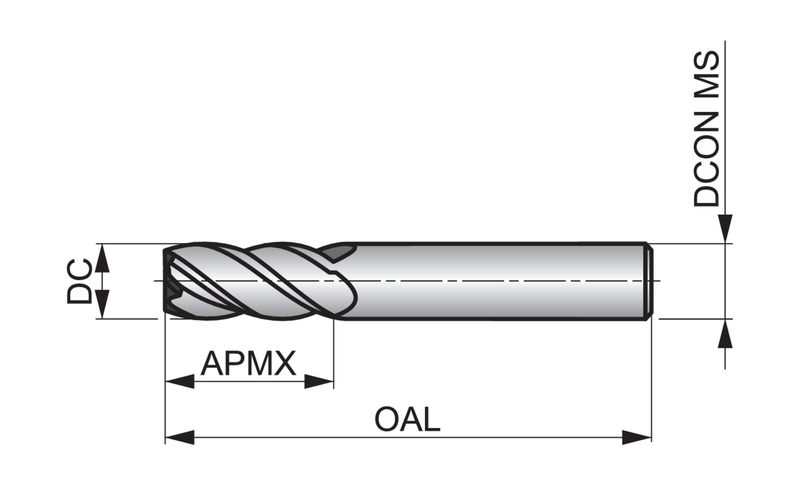

Depth of Cut Max — in (APMX)0.7874"
Depth of Cut Max — mm (APMX)20.0 mm
Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)2.3622"
Overall Length — mm (OAL)60.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm

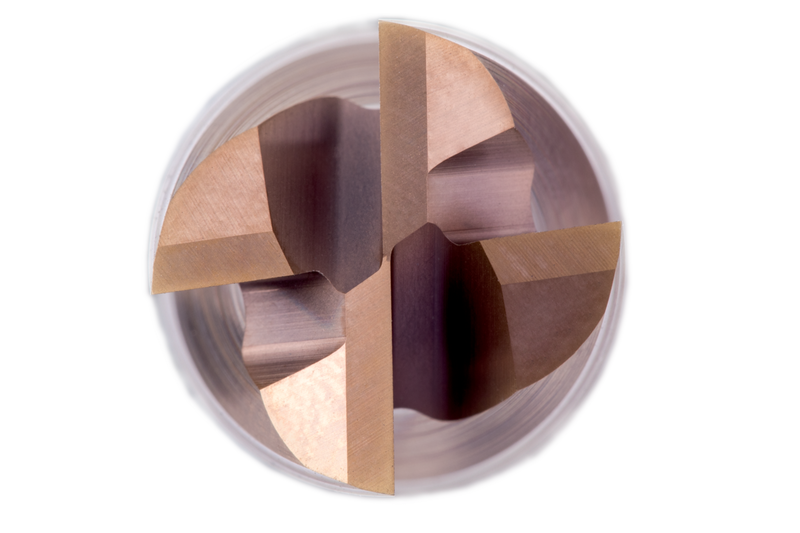

Number of Flutes (NOF)4
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number8030377
EAN7320760950975
File Type Download
S5616.0 — 3D Model STP Download
S5616.0 — 2D Model DXF Download
S5616.0 — Line Drawing PDF Download
