UGC DOR8030379
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$147.47 CAD - $147.47 CAD
$147.47 CAD
$147.47 CAD - $147.47 CAD
$147.47 CAD

Vendu en lots de : 1

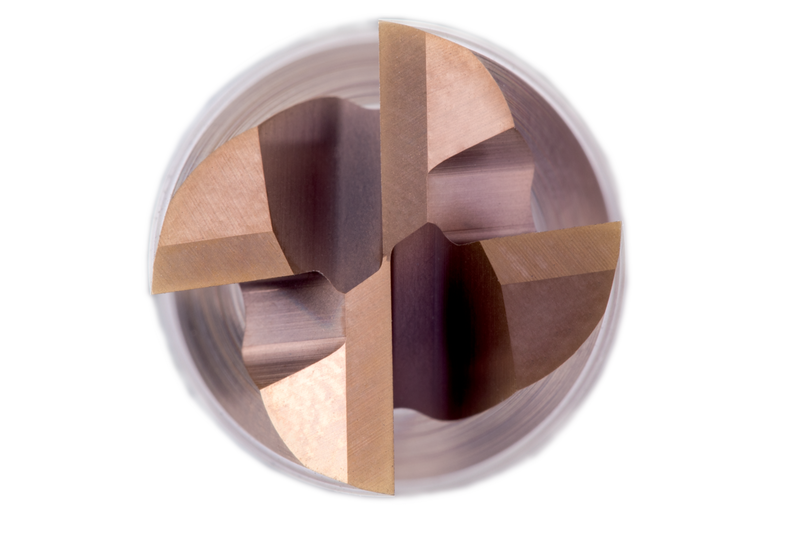

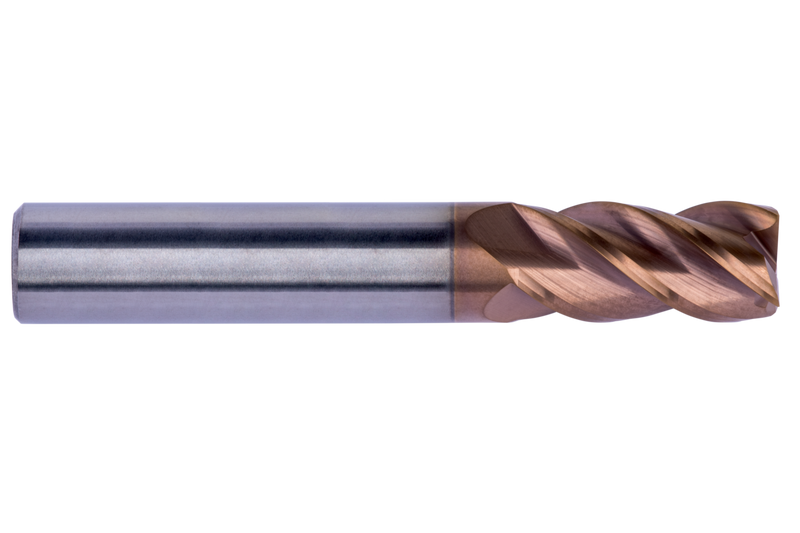

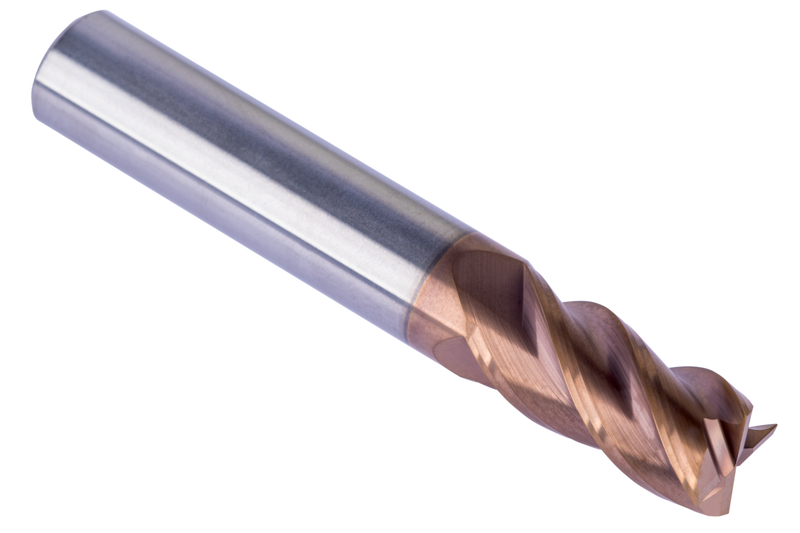

Fraise en bout de longueur normale à 4 cannelures, diamètre 10 mm avec longueur de coupe de 22 mm et longueur totale de 70 mm, conforme à la norme DORMER avec une queue cylindrique de 10 mm, en carbure monobloc avec revêtement TiSiN, hélice de 40° et angle de dépouille de -6° pour le surfaçage en bout, le plongement, le ramping, le fraisage en plongée progressive et le fraisage hélicoïdal dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S56110.0
GradeTiSiN
Product Number8030379
Product FamilyS561

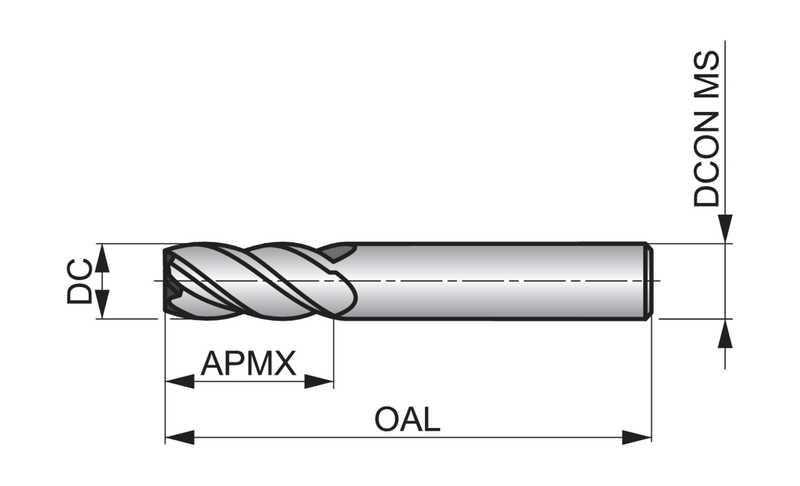

Insert Geometry
Depth of Cut Max — in (APMX)0.8661"
Depth of Cut Max — mm (APMX)22.0 mm
Dimensions
Cutting Diameter — in (DC)0.3937"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)2.7559"
Overall Length — mm (OAL)70.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number8030379
EAN7320760950999
File Type Download
S56110.0 — 3D Model STP Download
S56110.0 — 2D Model DXF Download
S56110.0 — Line Drawing PDF Download
