UGC DOR8030381
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$256.36 CAD - $256.36 CAD
$256.36 CAD
$256.36 CAD - $256.36 CAD
$256.36 CAD

Vendu en lots de : 1

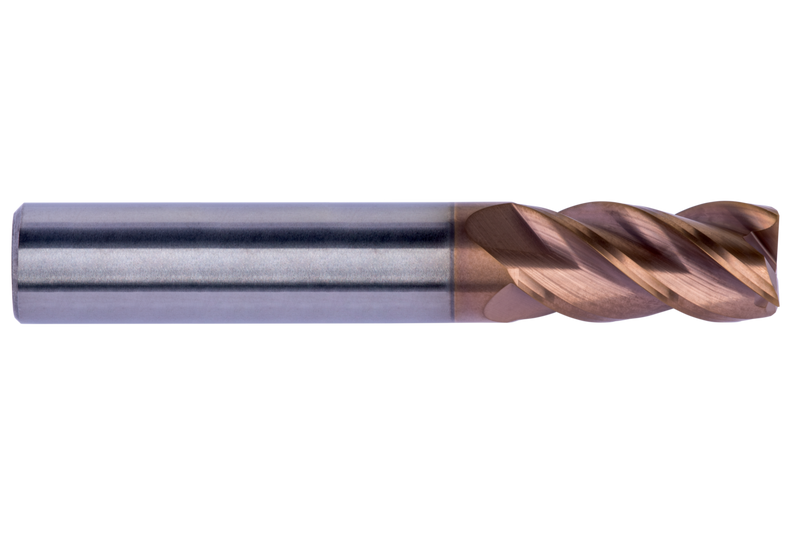

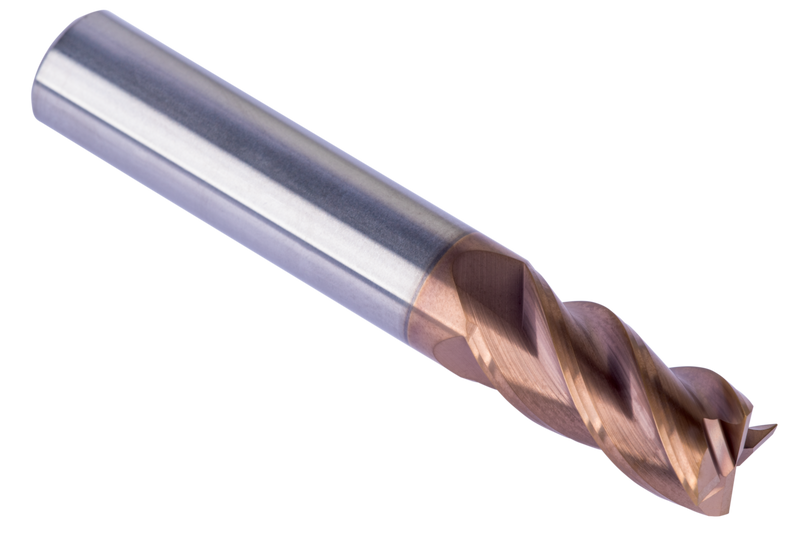

Fraise en bout de longueur normale à 4 dents, diamètre 14 mm, longueur de coupe 32 mm et longueur totale 90 mm, conforme à la norme DORMER, avec queue cylindrique 14 mm, en carbure monobloc avec revêtement TiSiN, hélice 40° et angle de dépouille -6° pour le fraisage d'épaulements, le rainurage, l'usinage en ramping, le fraisage par plongées successives et le fraisage hélicoïdal dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S56114.0
GradeTiSiN
Product Number8030381
Product FamilyS561
Insert Geometry

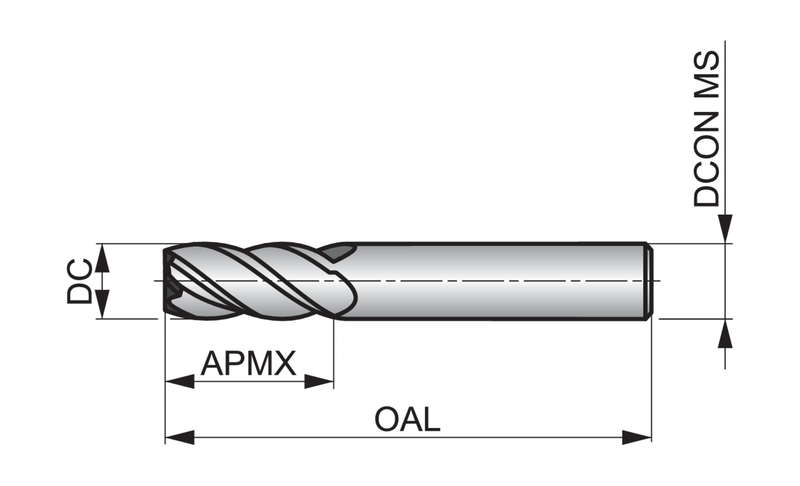

Depth of Cut Max — in (APMX)1.2598"
Depth of Cut Max — mm (APMX)32.0 mm
Dimensions
Cutting Diameter — in (DC)0.5512"
Cutting Diameter — mm (DC)14.0 mm
Overall Length — in (OAL)3.5433"
Overall Length — mm (OAL)90.0 mm
Connection Dia. — in (DCON)0.5512"
Connection Dia. — mm (DCON)14.0 mm

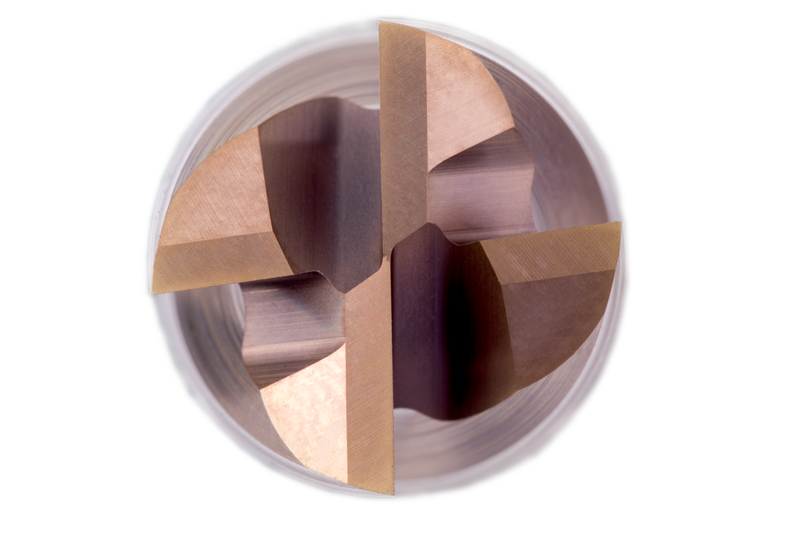

Number of Flutes (NOF)4
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number8030381
EAN7320760951019
File Type Download
S56114.0 — 3D Model STP Download
S56114.0 — 2D Model DXF Download
S56114.0 — Line Drawing PDF Download
