S770HB10.0
S770HB10.0
S770HB10.0
S770HB10.0

S770HB10.0

UGC DOR8030386
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$135.31 CAD - $135.31 CAD
$135.31 CAD
$135.31 CAD - $135.31 CAD
$135.31 CAD

Vendu en lots de : 1

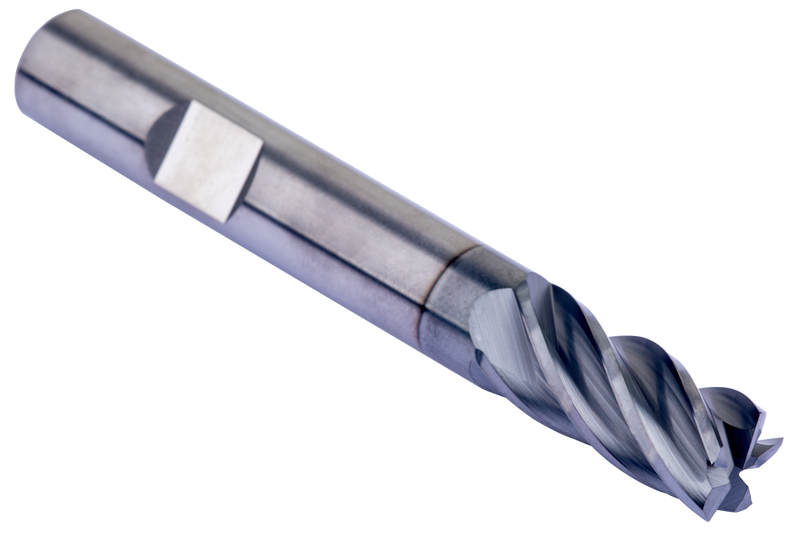

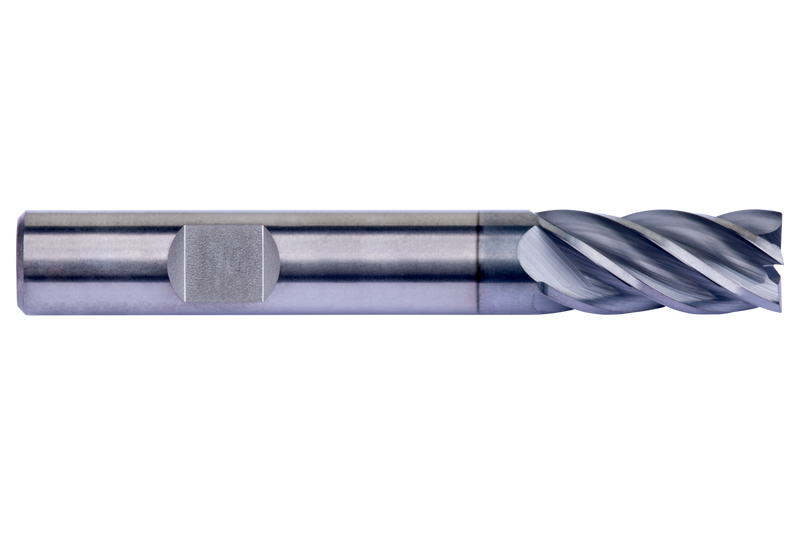

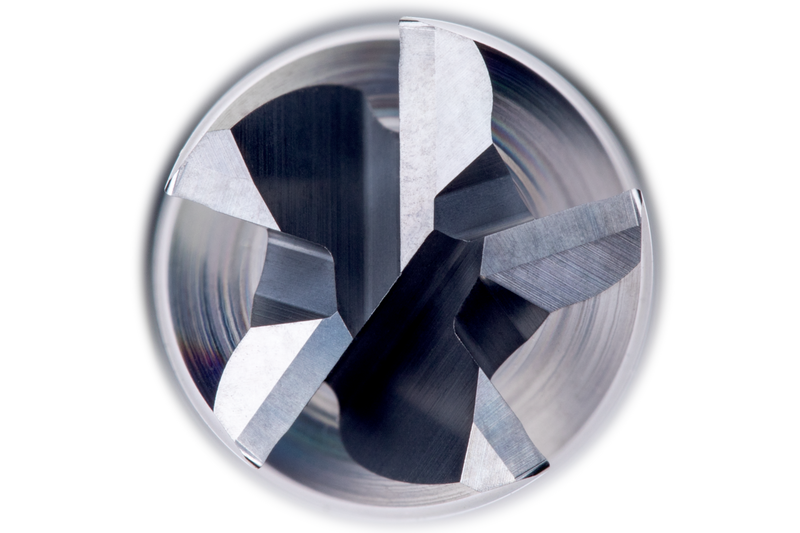

Fraise à surfacer-dresser en carbure monobloc, série courte, 5 dents, diamètre 10 mm, longueur de coupe 22 mm, longueur totale 72 mm, rayon de coin 0,2 mm, selon la norme DORMER, avec queue Weldon 10 mm, revêtement AlCrN, hélice différentielle et angle de coupe de 10° pour le fraisage d'épaulements, l'usinage en rampe, le fraisage hélicoïdal et le fraisage trochoïdal dans l'acier et l'acier moulé, l'acier inoxydable, la fonte ou les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S770HB10.0
GradeAlCrN
Product Number8030386
Product FamilyS770HB
Insert Geometry
Corner Radius — in (RE)0.0079"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.8661"
Depth of Cut Max — mm (APMX)22.0 mm

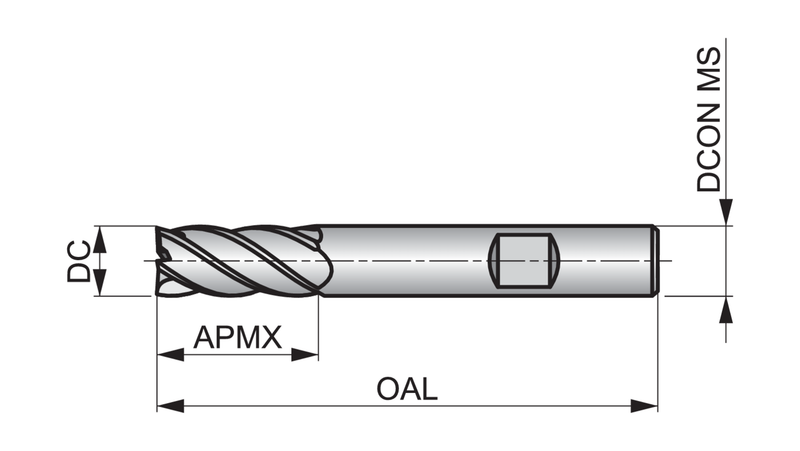

Dimensions
Cutting Diameter — in (DC)0.3937"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)2.8346"
Overall Length — mm (OAL)72.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)5
Tool Information
ShankQueue cylindrique DIN 6535 HB
StandardNorme de travail
Reference Numbers
EDP Number8030386
EAN7320760951057
File Type Download
S770HB10.0 — 3D Model STP Download
S770HB10.0 — 2D Model DXF Download
S770HB10.0 — Line Drawing PDF Download
