UGC DOR8030387
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$186.06 CAD - $186.06 CAD
$186.06 CAD
$186.06 CAD - $186.06 CAD
$186.06 CAD

Vendu en lots de : 1

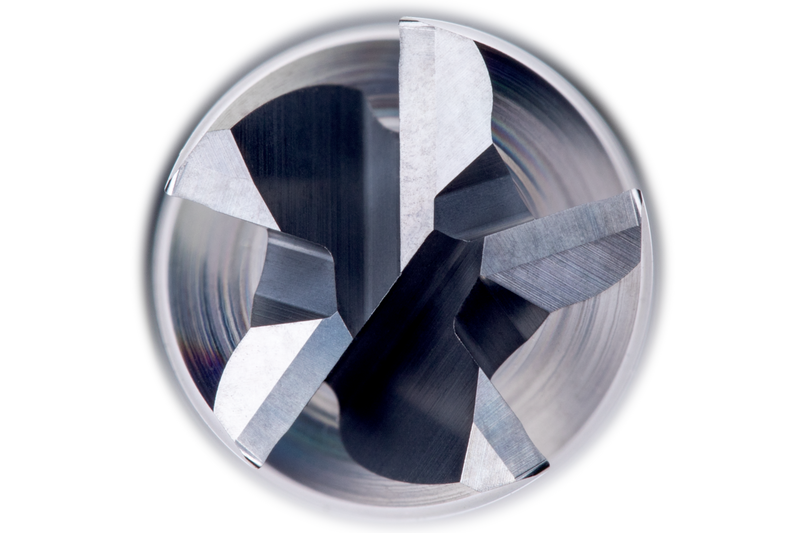

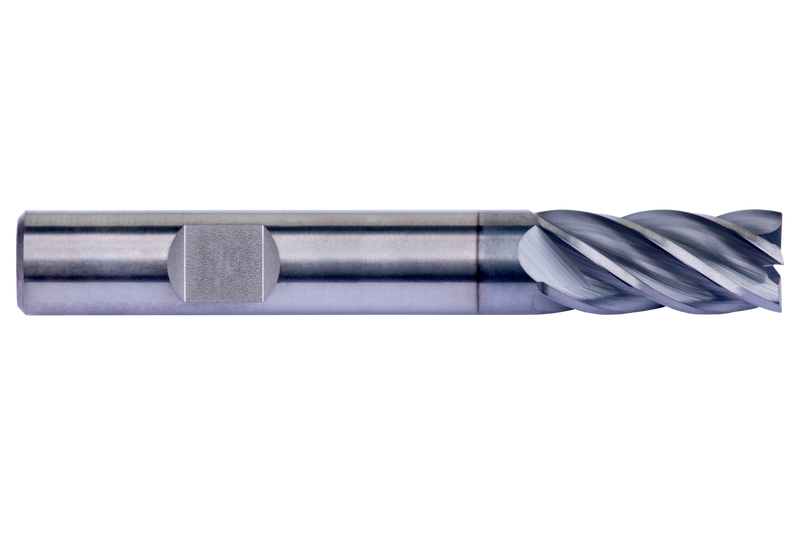

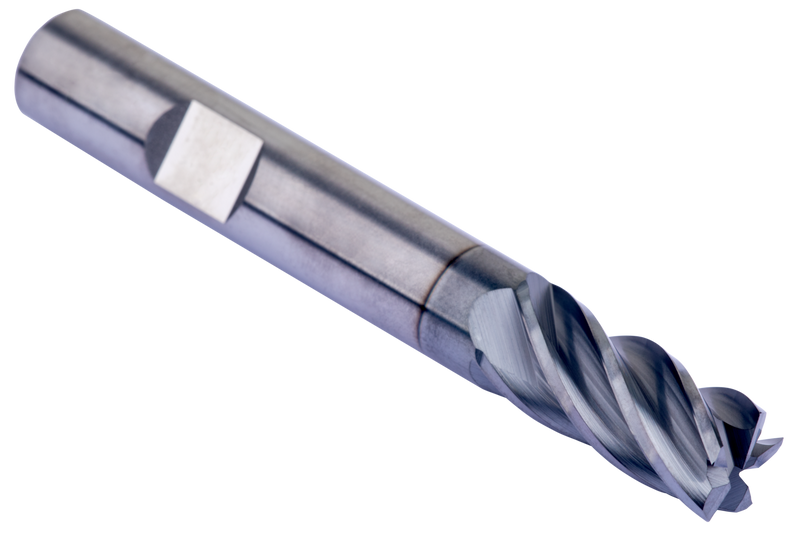

Fraise en bout torique série courte avec 5 dents, diamètre 12mm avec une longueur de coupe de 26mm, une longueur totale de 83mm et un rayon de coin de 0.3mm, selon la norme DORMER avec une queue Weldon de 12mm, en carbure monobloc avec revêtement AlCrN, hélice inégale et angle de coupe de 10° pour le fraisage d'épaulements, le ramping, le fraisage hélicoïdal et le fraisage trochoïdal dans l'acier et l'acier moulé, l'acier inoxydable, la fonte ou les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S770HB12.0
GradeAlCrN
Product Number8030387
Product FamilyS770HB
Insert Geometry
Corner Radius — in (RE)0.0118"
Corner Radius — mm (RE)0.3 mm
Depth of Cut Max — in (APMX)1.0236"
Depth of Cut Max — mm (APMX)26.0 mm

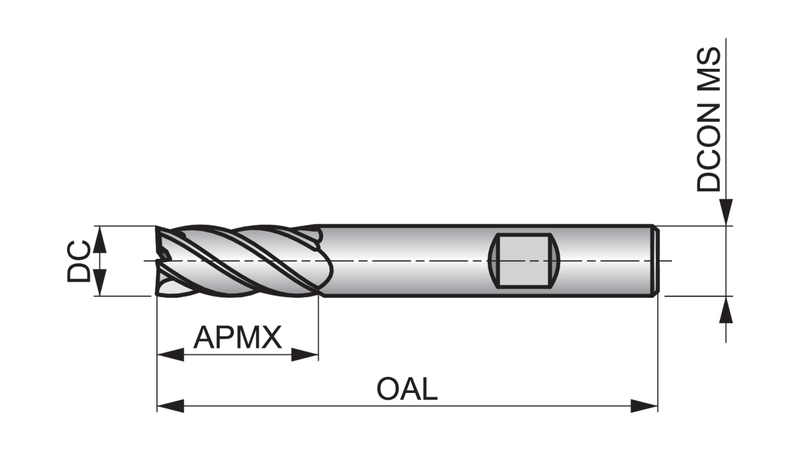

Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)3.2677"
Overall Length — mm (OAL)83.0 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)5
Tool Information
ShankQueue cylindrique DIN 6535 HB
StandardNorme de travail
Reference Numbers
EDP Number8030387
EAN7320760951064
File Type Download
S770HB12.0 — 3D Model STP Download
S770HB12.0 — 2D Model DXF Download
S770HB12.0 — Line Drawing PDF Download
