UGC DOR8030388
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$304.46 CAD - $304.46 CAD
$304.46 CAD
$304.46 CAD - $304.46 CAD
$304.46 CAD

Vendu en lots de : 1

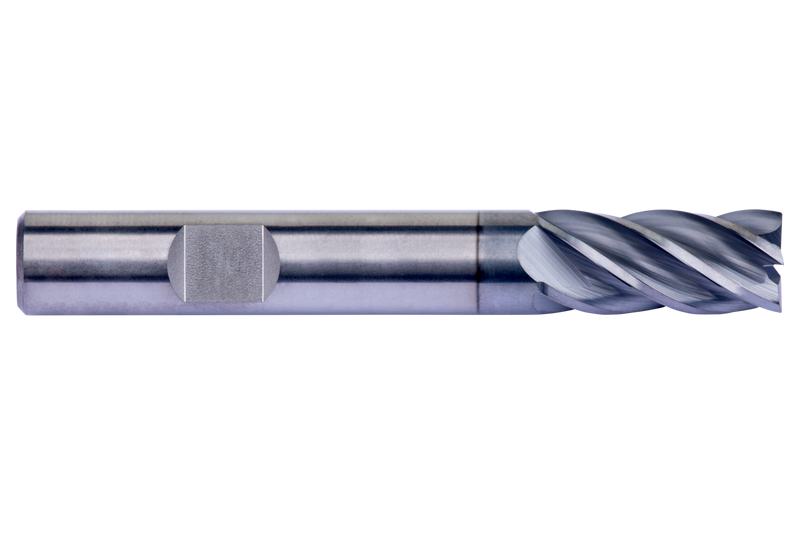

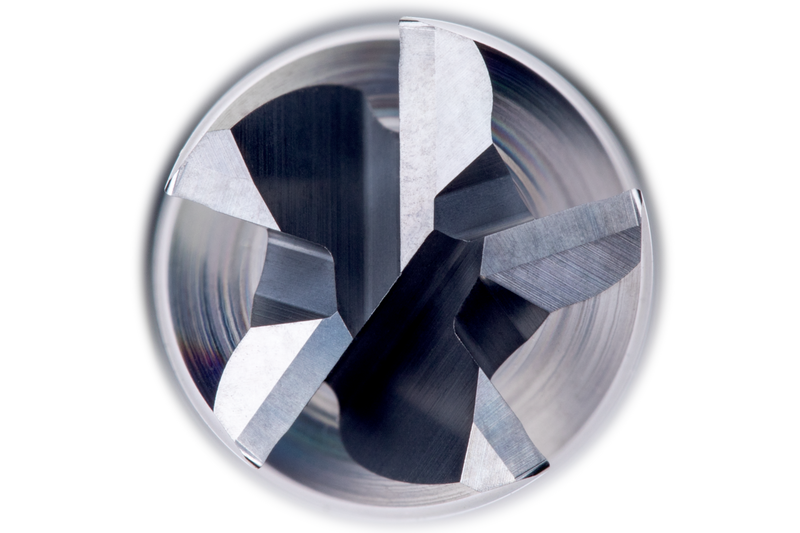

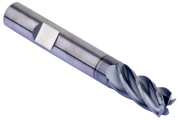

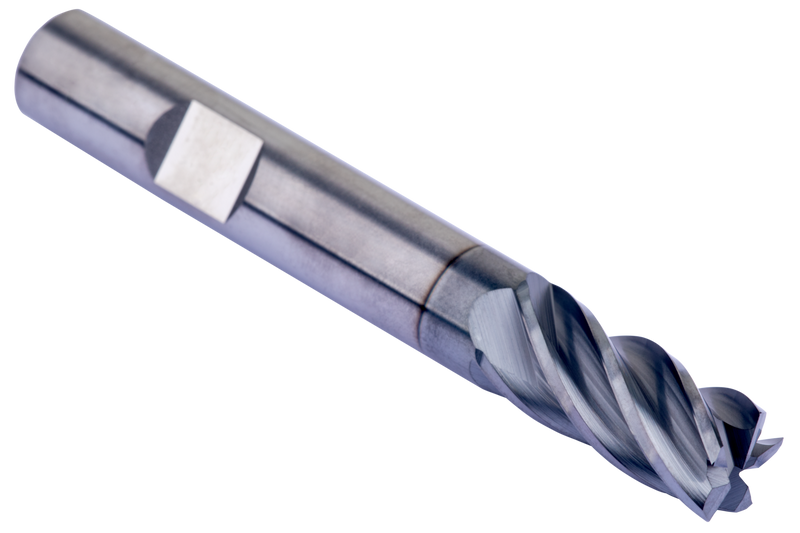

Fraise en bout toroïdale série courte 5 dents, diamètre 16 mm avec longueur de coupe 32 mm, longueur totale 92 mm et rayons de coin 0,3 mm, selon la norme DORMER avec une queue Weldon de 16 mm, carbure monobloc avec revêtement AlCrN, hélice inégale et angle de coupe 10° pour le fraisage d'épaulement, l'usinage en rampe, le fraisage hélicoïdal et le fraisage trochoïdal dans l'acier et l'acier moulé, l'acier inoxydable, la fonte ou les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI)S770HB16.0
Product Name (ISO)S770HB16,0
GradeAlCrN
Product Number8030388
Product FamilyS770HB
Insert Geometry
Corner Radius — in (RE)0.0118"
Corner Radius — mm (RE)0.3 mm
Depth of Cut Max — in (APMX)1.2598"
Depth of Cut Max — mm (APMX)32.0 mm

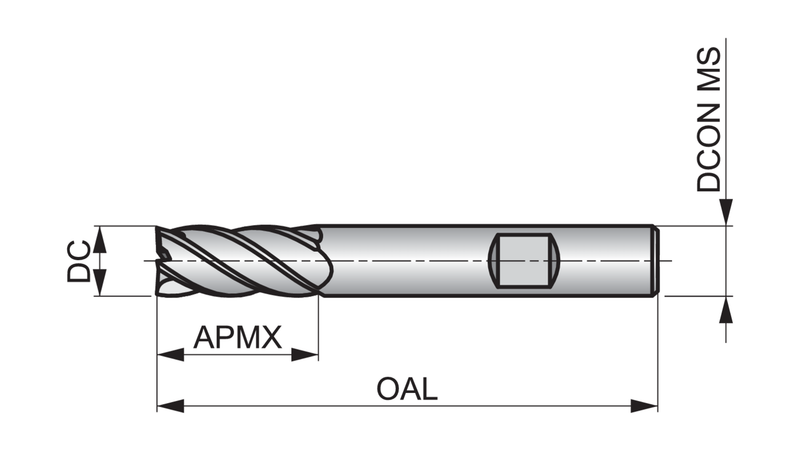

Dimensions
Cutting Diameter — in (DC)0.6299"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)3.622"
Overall Length — mm (OAL)92.0 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)5
Tool Information
ShankQueue cylindrique DIN 6535 HB
StandardNorme de travail
Reference Numbers
EDP Number8030388
EAN7320760951071
File Type Download
S770HB16.0 — 3D Model STP Download
S770HB16.0 — 2D Model DXF Download
S770HB16.0 — Line Drawing PDF Download
