S770HB20.0
S770HB20.0
S770HB20.0
S770HB20.0

S770HB20.0

UGC DOR8030389
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$473.07 CAD - $473.07 CAD
$473.07 CAD
$473.07 CAD - $473.07 CAD
$473.07 CAD

Vendu en lots de : 1

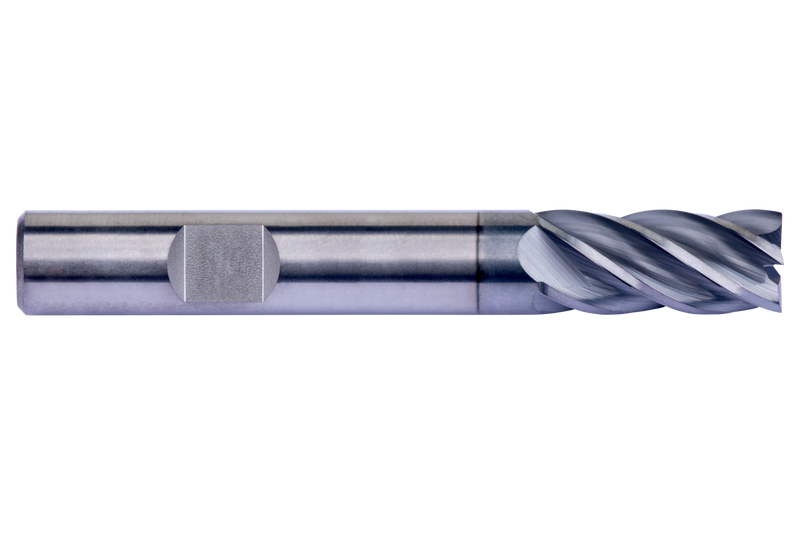

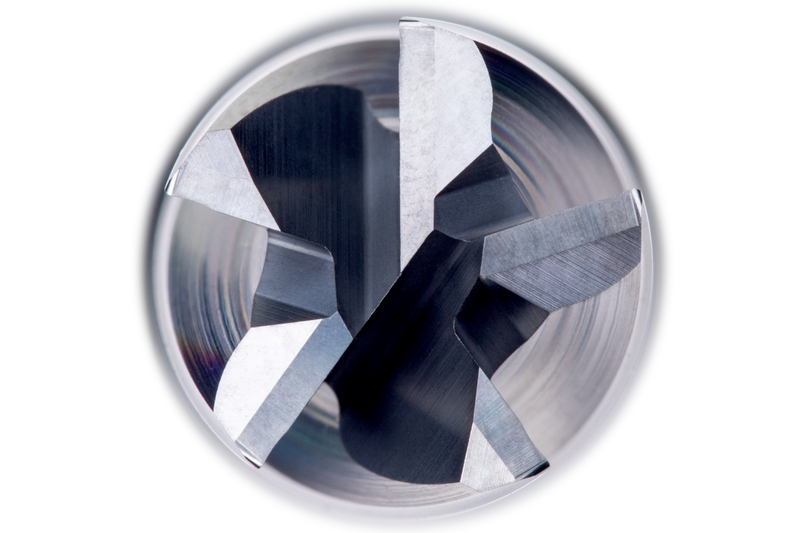

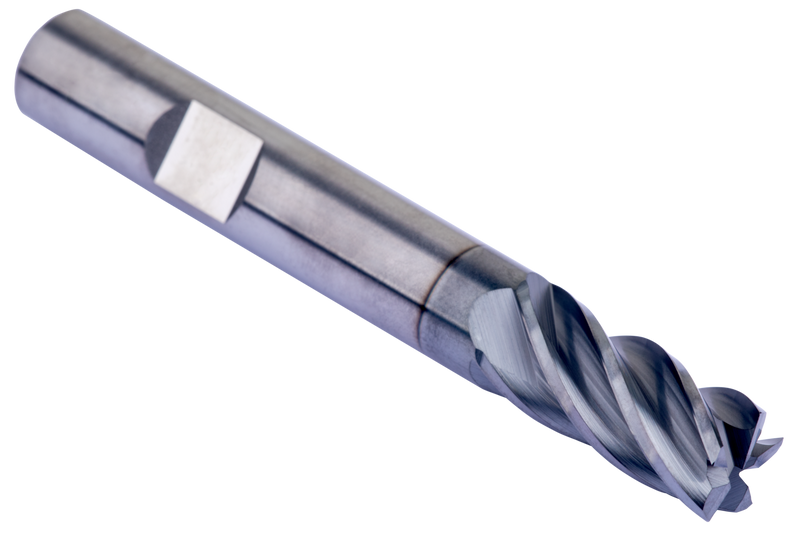

Fraise en bout Trochoïdale série courte 5 dents, diamètre 20mm avec 38mm de longueur de coupe, 104mm de longueur totale et rayon de coin 0.3mm, selon la norme DORMER avec un attachement Weldon 20mm, carbure monobloc avec revêtement AlCrN, hélice inégale et angle de coupe 10° pour le fraisage d'épaulement, l'interpolation hélicoïdale, le fraisage hélicoïdal et le fraisage trochoïdal dans l'acier et l'acier moulé, l'acier inoxydable, la fonte ou les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S770HB20.0
GradeAlCrN
Product Number8030389
Product FamilyS770HB
Insert Geometry
Corner Radius — in (RE)0.0118"
Corner Radius — mm (RE)0.3 mm
Depth of Cut Max — in (APMX)1.4961"
Depth of Cut Max — mm (APMX)38.0 mm

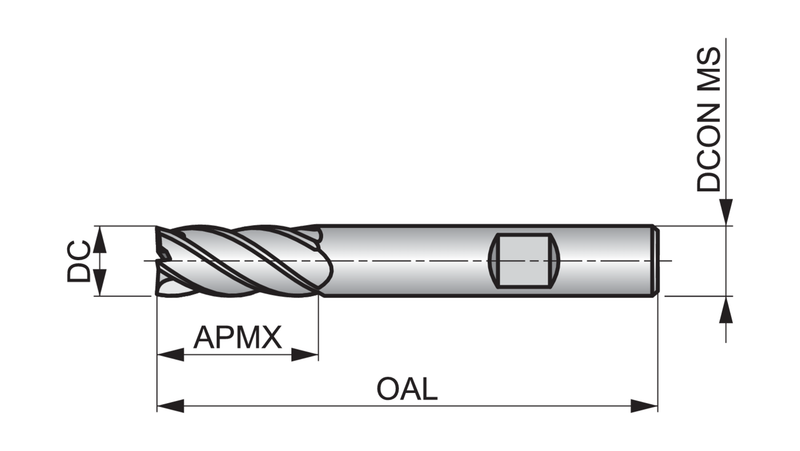

Dimensions
Cutting Diameter — in (DC)0.7874"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)4.0945"
Overall Length — mm (OAL)104.0 mm
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)5
Tool Information
ShankQueue cylindrique DIN 6535 HB
StandardNorme de travail
Reference Numbers
EDP Number8030389
EAN7320760951088
File Type Download
S770HB20.0 — 3D Model STP Download
S770HB20.0 — 2D Model DXF Download
S770HB20.0 — Line Drawing PDF Download
