UGC DOR8030390
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$147.47 CAD - $147.47 CAD
$147.47 CAD
$147.47 CAD - $147.47 CAD
$147.47 CAD

Vendu en lots de : 1

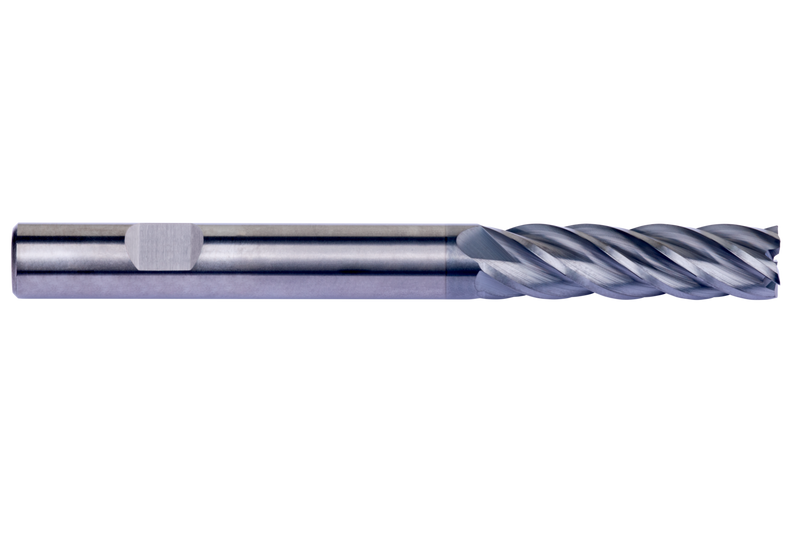

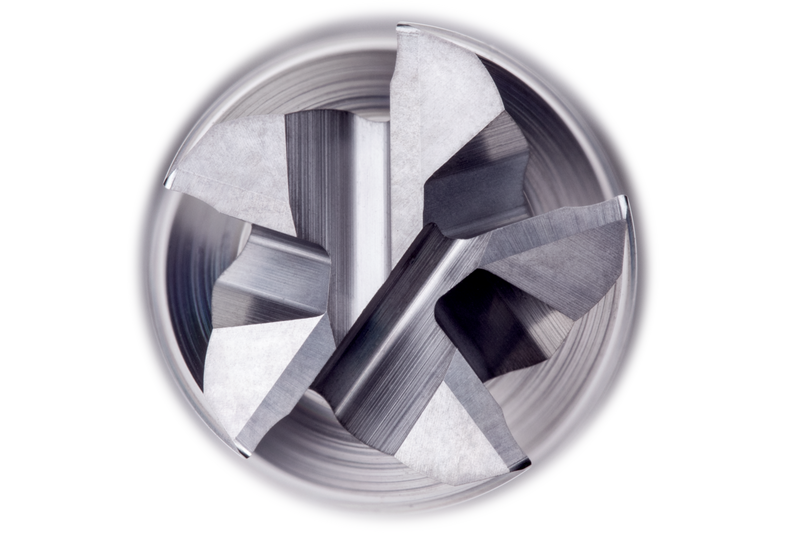

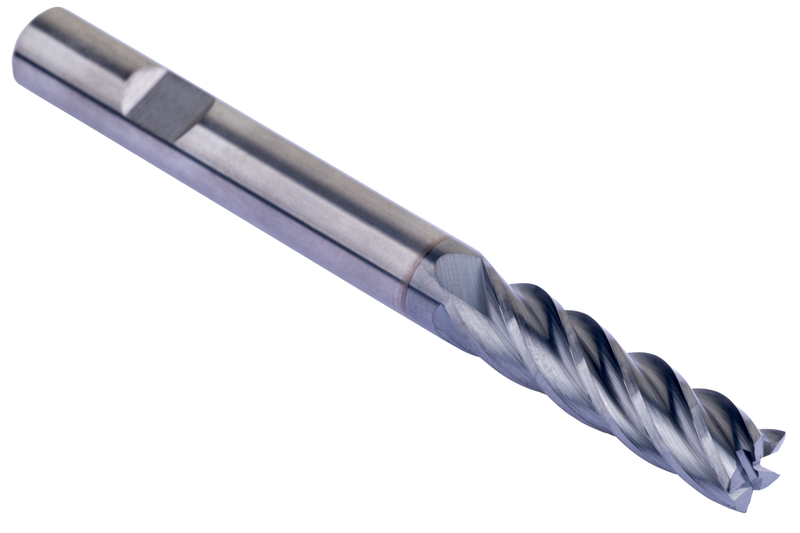

Fraise en bout Trochoïdale série longue à 5 dents, diamètre 10mm avec une longueur de coupe de 38mm, une longueur totale de 100mm et des rayons de coin de 0,2mm, selon la norme DORMER avec un attachement Weldon de 10mm, en carbure monobloc avec revêtement AlCrN, hélice inégale et un angle de coupe de 10° pour le fraisage d'épaulement, l'usinage en ramping, le fraisage hélicoïdal et le fraisage trochoïdal dans l'acier et l'acier moulé, l'acier inoxydable, la fonte ou les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S772HB10.0
GradeAlCrN
Product Number8030390
Product FamilyS772HB

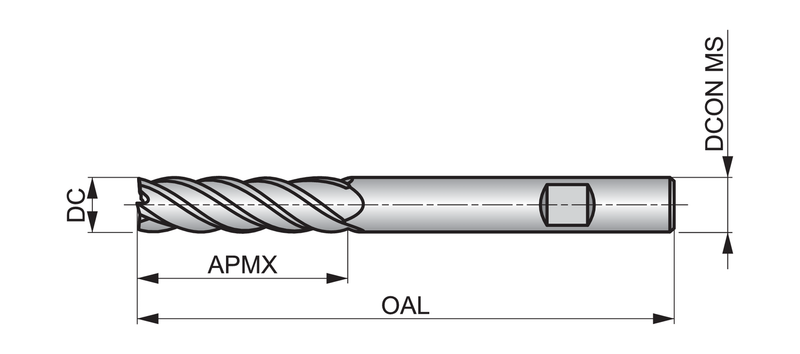

Insert Geometry
Corner Radius — in (RE)0.0079"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)1.4961"
Depth of Cut Max — mm (APMX)38.0 mm
Dimensions
Cutting Diameter — in (DC)0.3937"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)5
Tool Information
ShankQueue cylindrique DIN 6535 HB
StandardNorme de travail
Reference Numbers
EDP Number8030390
EAN7320760951095
File Type Download
S772HB10.0 — 3D Model STP Download
S772HB10.0 — 2D Model DXF Download
S772HB10.0 — Line Drawing PDF Download
