S772HB12.0
S772HB12.0
S772HB12.0
S772HB12.0

S772HB12.0

UGC DOR8030391
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$205.61 CAD - $205.61 CAD
$205.61 CAD
$205.61 CAD - $205.61 CAD
$205.61 CAD

Vendu en lots de : 1

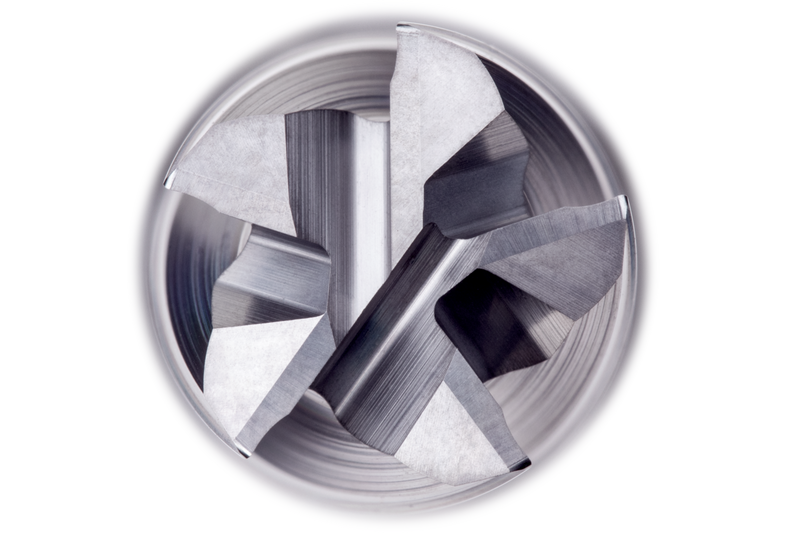

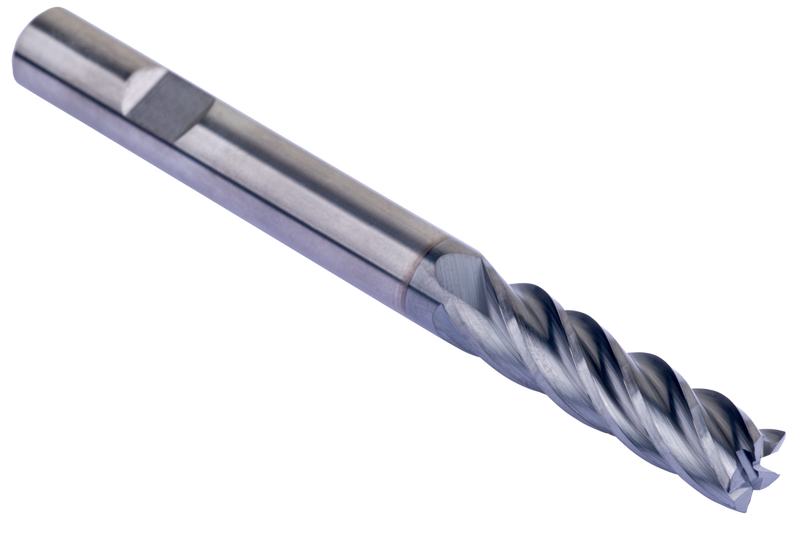

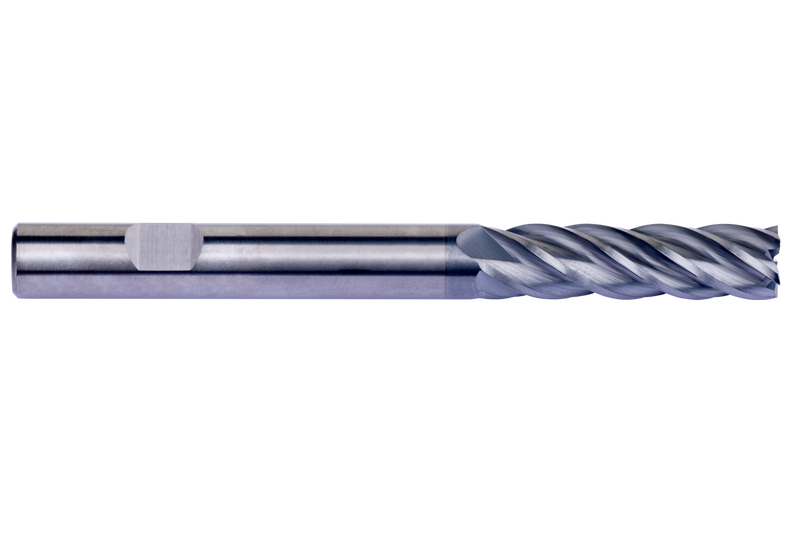

Fraise à surfacer-dresser pour opérations trochoïdales série longue, 5 goujures, diamètre 12mm avec une longueur de coupe de 45mm, une longueur totale de 100mm et un rayon de coin de 0,3mm, conforme à la norme DORMER avec une queue Weldon de 12mm, en carbure monobloc avec revêtement AlCrN, hélice inégale et angle de coupe de 10° pour le fraisage d'épaulements, le ramping, le fraisage hélicoïdal et le fraisage trochoïdal dans l'acier et l'acier moulé, l'acier inoxydable, la fonte ou les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S772HB12.0
GradeAlCrN
Product Number8030391
Product FamilyS772HB
Insert Geometry
Corner Radius — in (RE)0.0118"
Corner Radius — mm (RE)0.3 mm
Depth of Cut Max — in (APMX)1.7717"
Depth of Cut Max — mm (APMX)45.0 mm

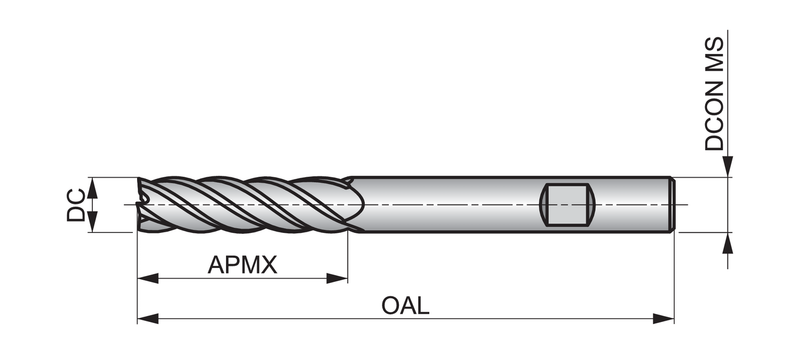

Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)5
Tool Information
ShankQueue cylindrique DIN 6535 HB
StandardNorme de travail
Reference Numbers
EDP Number8030391
EAN7320760951101
File Type Download
S772HB12.0 — 3D Model STP Download
S772HB12.0 — 2D Model DXF Download
S772HB12.0 — Line Drawing PDF Download
