S772HB16,0
S772HB16,0
S772HB16,0
S772HB16,0

S772HB16,0

UGC DOR8030392
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$334.59 CAD - $334.59 CAD
$334.59 CAD
$334.59 CAD - $334.59 CAD
$334.59 CAD

Vendu en lots de : 1

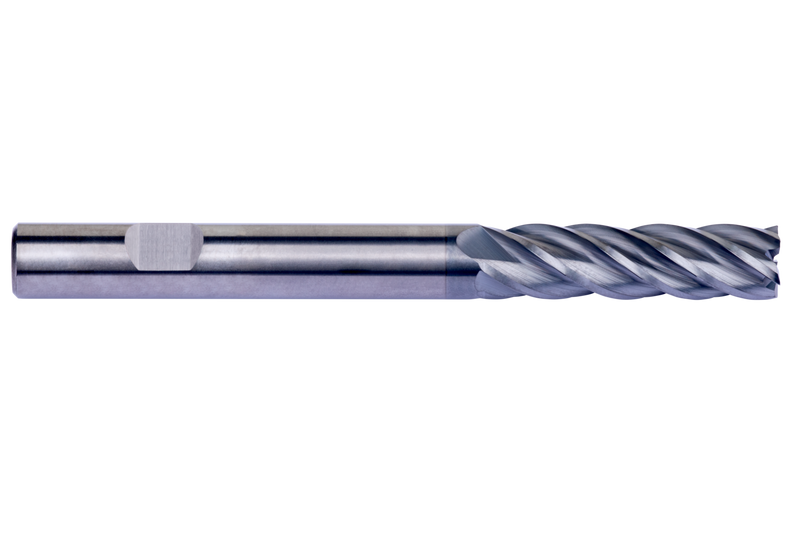

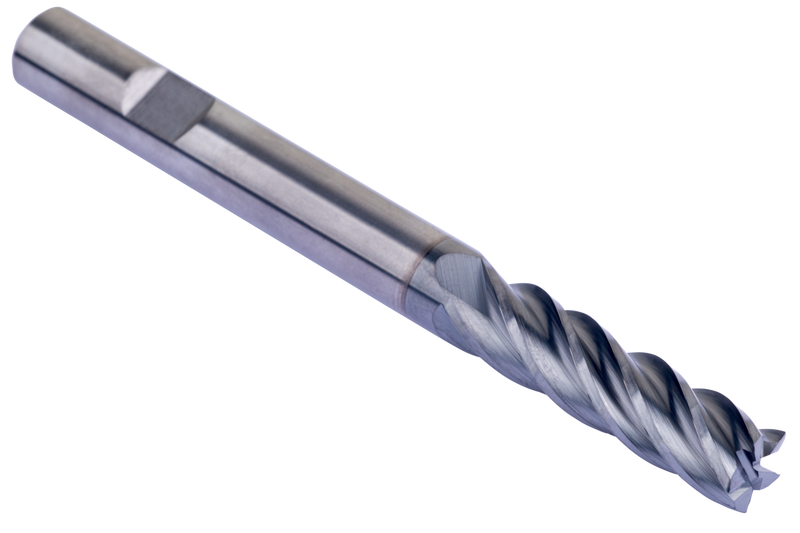

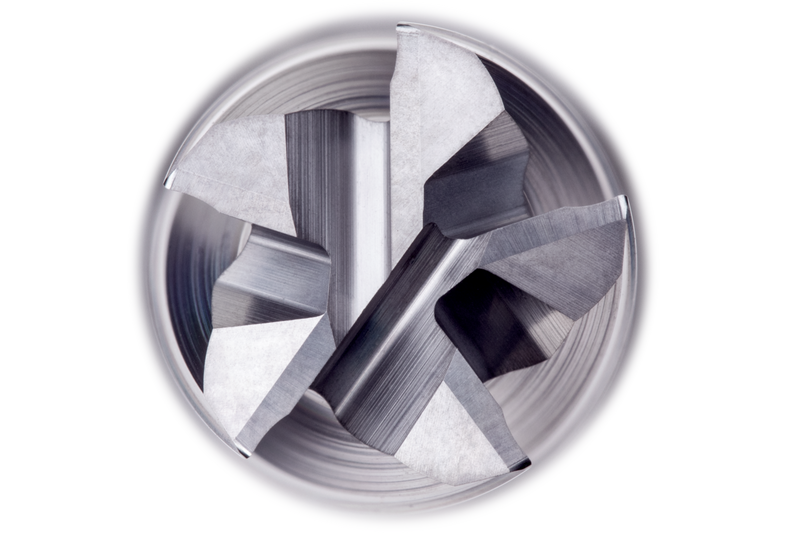

Fraise à surfacer-dresser pour usinage trochoïdal, série longue, 5 dents, diamètre 16mm, longueur de coupe 55mm, longueur totale 125mm, rayon de coin 0.3mm, selon la norme DORMER, avec queue Weldon 16mm, carbure monobloc avec revêtement AlCrN, hélice inégale et angle de coupe de 10° pour le fraisage d'épaulements, le fraisage en plongée, le fraisage hélicoïdal et le fraisage trochoïdal dans l'acier et l'acier moulé, l'acier inoxydable, la fonte ou les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI)S772HB16.0
Product Name (ISO)S772HB16,0
GradeAlCrN
Product Number8030392
Product FamilyS772HB
Insert Geometry
Corner Radius — in (RE)0.0118"
Corner Radius — mm (RE)0.3 mm
Depth of Cut Max — in (APMX)2.1654"
Depth of Cut Max — mm (APMX)55.0 mm

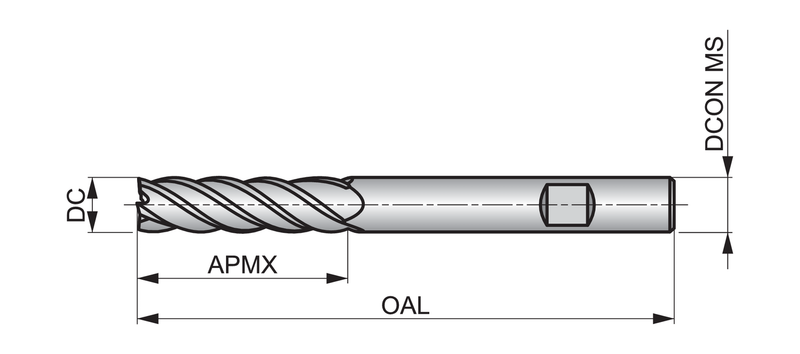

Dimensions
Cutting Diameter — in (DC)0.6299"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)4.9213"
Overall Length — mm (OAL)125.0 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)5
Tool Information
ShankQueue cylindrique DIN 6535 HB
StandardNorme de travail
Reference Numbers
EDP Number8030392
EAN7320760951118
File Type Download
S772HB16,0 — 3D Model STP Download
S772HB16,0 — 2D Model DXF Download
S772HB16,0 — Line Drawing PDF Download
