UGC DOR8030397
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$708.29 CAD - $708.29 CAD
$708.29 CAD
$708.29 CAD - $708.29 CAD
$708.29 CAD

Vendu en lots de : 1

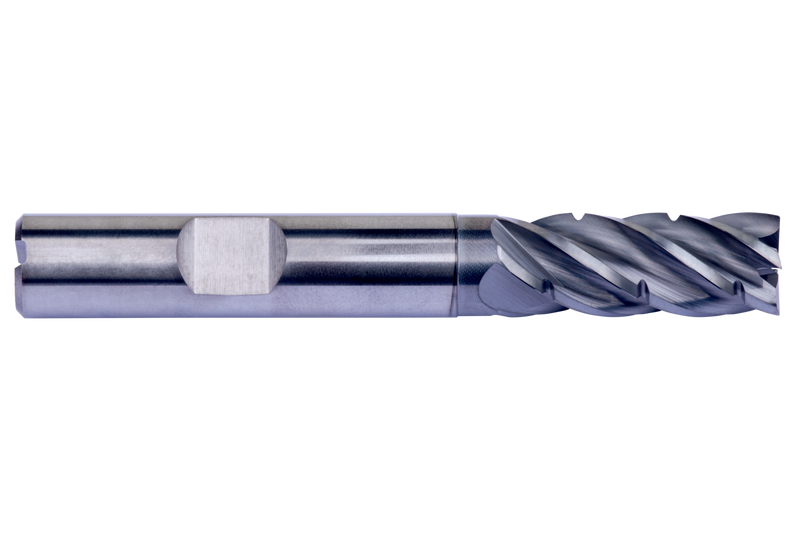

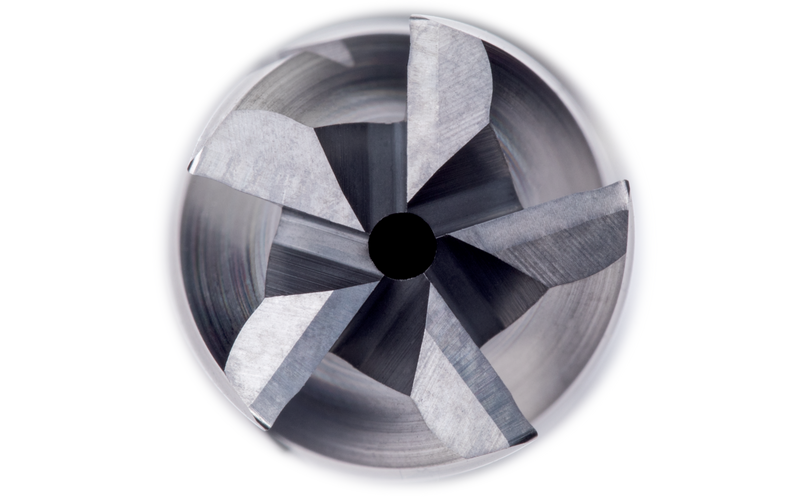

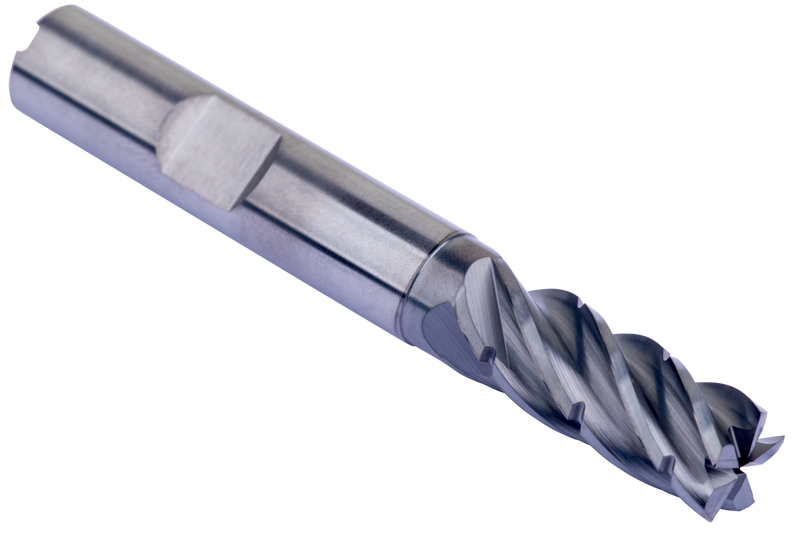

Fraise en bout Trochoïdale série courte avec FS brise-copeaux et 5 dents, diamètre 20mm avec longueur de coupe 48mm, longueur totale 104mm, portée 54mm avec dégagement et rayons de coin de 0.3mm, selon la norme DORMER avec une queue Weldon 20mm, carbure monobloc avec revêtement AlCrN, hélice inégale et angle de coupe 10° pour le fraisage d'épaulements, le ramping, le fraisage hélicoïdal et le fraisage trochoïdal dans l'acier et l'acier moulé, l'acier inoxydable, la fonte ou les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S771HB20.0
GradeAlCrN
Product Number8030397
Product FamilyS771HB

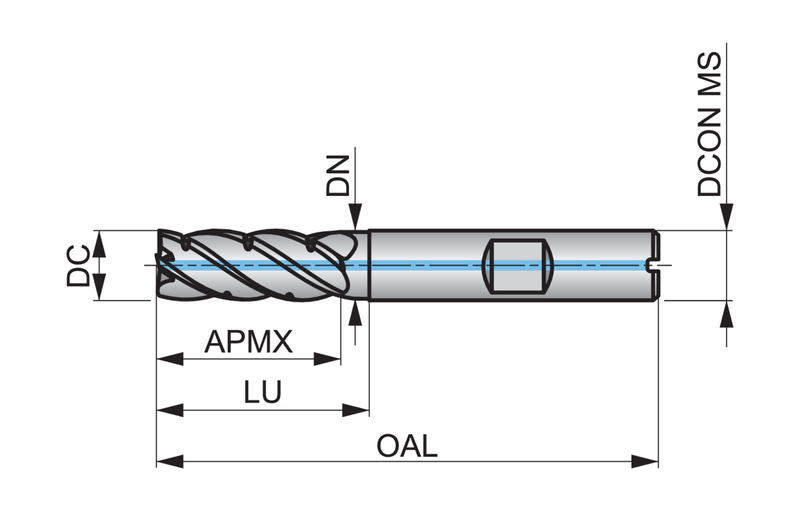

Insert Geometry
Corner Radius — in (RE)0.0118"
Corner Radius — mm (RE)0.3 mm
Depth of Cut Max — in (APMX)1.8898"
Depth of Cut Max — mm (APMX)48.0 mm
Dimensions
Cutting Diameter — in (DC)0.7874"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)4.0945"
Overall Length — mm (OAL)104.0 mm
Usable Length — mm (LU)54.0 mm
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)5
Tool Information
ShankQueue cylindrique DIN 6535 HB
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number8030397
EAN7320760951163
File Type Download
S771HB20.0 — 3D Model STP Download
S771HB20.0 — 2D Model DXF Download
S771HB20.0 — Line Drawing PDF Download
