B6509/16
B6509/16

B6509/16

UGC DOR8157144
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$132.96 CAD - $132.96 CAD
$132.96 CAD
$132.96 CAD - $132.96 CAD
$132.96 CAD

Vendu en lots de : 1

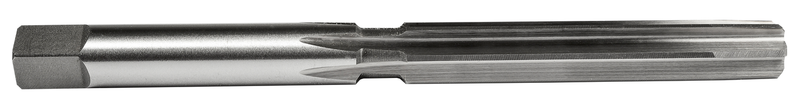

Alésoir à main à goujures droites et carré d'entraînement, diamètre 0,5625" (9/16") avec une longueur totale de 6.1/2" et une longueur de goujure de 3.1/4", fabriqué conformément aux normes ANSI B94.2-1983(R1988) pour l'alésage de trous précis, HSS avec finition brillante pour l'usinage d'acier à usinage facile et d'acier au carbone ordinaire, de fonte grise et malléable, d'aluminium et de cuivre ou d'alliages de cuivre forgés et coulés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B6509/16
GradeLumineux
Product Number8157144
Product FamilyB650

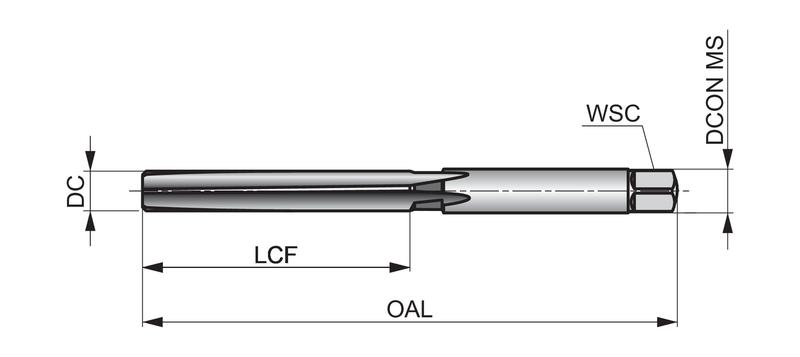

Dimensions
Cutting Diameter — in (DC)0.5625"
Cutting Diameter — mm (DC)14.29 mm
Cutting Diameter — Fractional16/9
Overall Length — in (OAL)6.5"
Overall Length — mm (OAL)165.1 mm
Flute Length — in (LCF)3.25"
Flute Length — mm (LCF)82.55 mm
Connection Dia. — in (DCON)0.5625"
Connection Dia. — mm (DCON)14.29 mm
Number of Flutes (NOF)8
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number8157144
EAN3603607001455
File Type Download
B6509/16 — Line Drawing PDF Download
