B6507/8
B6507/8

B6507/8

UGC DOR8157147
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$203.64 CAD - $203.64 CAD
$203.64 CAD
$203.64 CAD - $203.64 CAD
$203.64 CAD

Vendu en lots de : 1

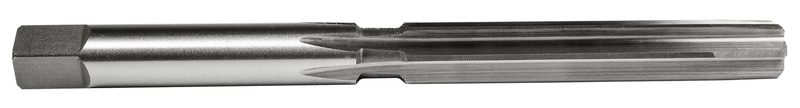

Alésoir à main avec goujures droites et entraînement carré, diamètre 0,8750" (7/8") avec une longueur totale de 9,3/4" et une longueur de goujure de 4,7/8", fabriqué conformément aux normes ANSI B94.2-1983(R1988) pour l'alésage de trous précis, en HSS avec finition brillante pour l'usinage de l'acier au carbone à usinage libre et ordinaire, de la fonte grise et malléable, de l'aluminium et du cuivre ou des alliages de cuivre forgés et moulés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B6507/8
GradeLumineux
Product Number8157147
Product FamilyB650
Dimensions
Cutting Diameter — in (DC)0.875"
Cutting Diameter — mm (DC)22.23 mm
Cutting Diameter — Fractional7/8
Overall Length — in (OAL)9.75"
Overall Length — mm (OAL)247.65 mm
Flute Length — in (LCF)4.875"
Flute Length — mm (LCF)123.83 mm
Connection Dia. — in (DCON)0.875"
Connection Dia. — mm (DCON)22.23 mm
Number of Flutes (NOF)8
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number8157147
EAN3603607001486
File Type Download

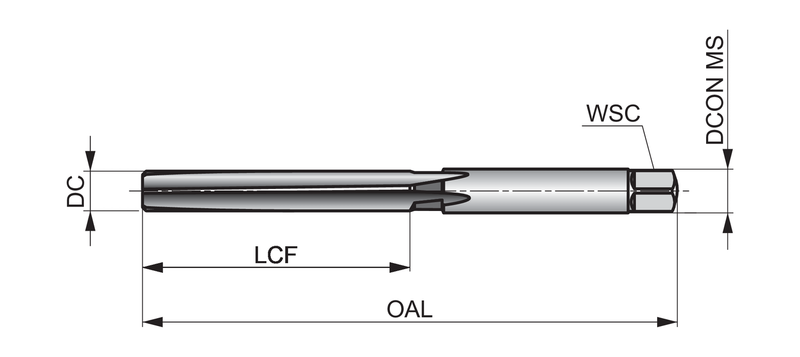

B6507/8 — Line Drawing PDF Download
