B6501
B6501

B6501

UGC DOR8157148
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$239.73 CAD - $239.73 CAD
$239.73 CAD
$239.73 CAD - $239.73 CAD
$239.73 CAD

Vendu en lots de : 1

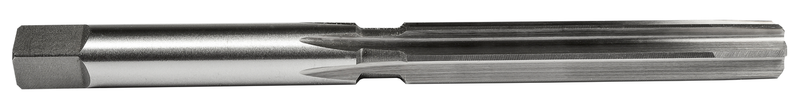

Alésoir à main à cannelures droites et entraînement carré, diamètre 1.0000" (1") avec une longueur totale de 10.7/8" et une longueur de cannelure de 5.7/16", fabriqué conformément aux normes ANSI B94.2-1983(R1988) pour l'alésage de trous précis, en acier rapide avec finition brillante pour l'usinage de l'acier au carbone à usinage libre et ordinaire, de la fonte grise et malléable, de l'aluminium corroyé et coulé, du cuivre ou des alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B6501
GradeLumineux
Product Number8157148
Product FamilyB650

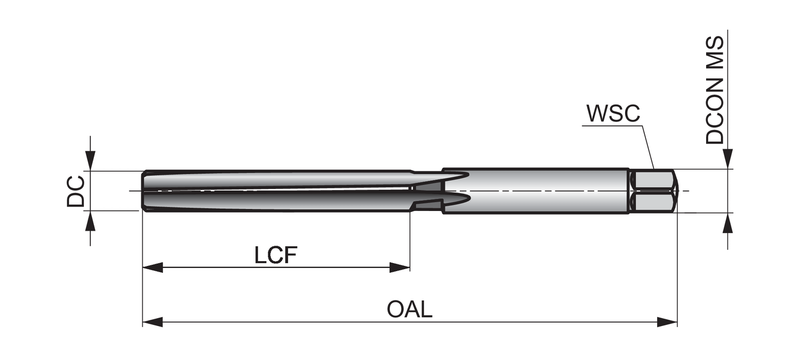

Dimensions
Cutting Diameter — in (DC)1.0"
Cutting Diameter — mm (DC)25.4 mm
Cutting Diameter — Fractional1"
Overall Length — in (OAL)10.875"
Overall Length — mm (OAL)276.23 mm
Flute Length — in (LCF)5.4375"
Flute Length — mm (LCF)138.11 mm
Connection Dia. — in (DCON)1.0"
Connection Dia. — mm (DCON)25.4 mm
Number of Flutes (NOF)8
Tool Information
ShankQueue cylindrique avec Carré
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number8157148
EAN3603607001493
File Type Download
B6501 — Line Drawing PDF Download
