B610N50
B610N50

B610N50

UGC DOR8157161
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$21.70 CAD - $21.70 CAD
$21.70 CAD
$21.70 CAD - $21.70 CAD
$21.70 CAD

Vendu en lots de : 1

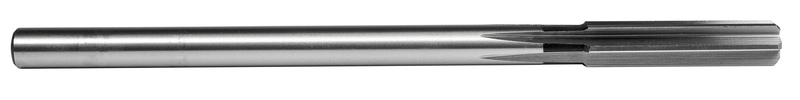

Alésoir machine à goujures droites et queue cylindrique, diamètre 0,0700" (N50) avec une longueur totale de 3" et une longueur de coupe de 3/4", fabriqué selon les normes ANSI B94.2-1983(R1988) pour l'alésage de trous précis, en HSS avec finition brillante pour l'usinage de l'acier à usinage libre, du cuivre ou des alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B610N50
GradeLumineux
Product Number8157161
Product FamilyB610

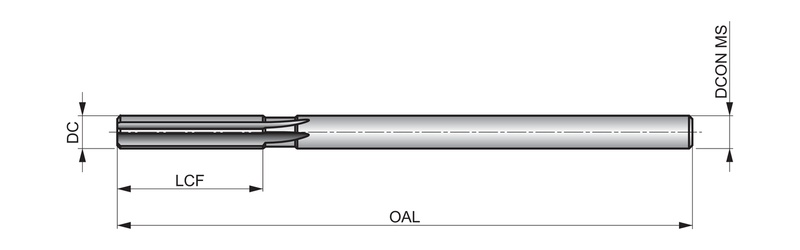

Dimensions
Cutting Diameter — in (DC)0.07"
Cutting Diameter — mm (DC)1.78 mm
Overall Length — in (OAL)3.0"
Overall Length — mm (OAL)76.2 mm
Flute Length — in (LCF)0.75"
Flute Length — mm (LCF)19.05 mm
Connection Dia. — in (DCON)0.066"
Connection Dia. — mm (DCON)1.68 mm
Number of Flutes (NOF)4
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number8157161
EAN3603607001622
File Type Download
B610N50 — Line Drawing PDF Download
