B610N19
B610N19

B610N19

UGC DOR8157202
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$25.36 CAD - $25.36 CAD
$25.36 CAD
$25.36 CAD - $25.36 CAD
$25.36 CAD

Vendu en lots de : 1

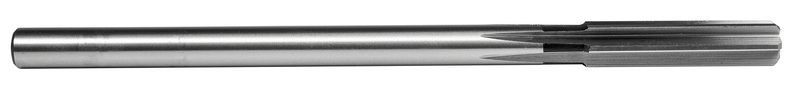

Alésoir machine à goujures droites et queue cylindrique, diamètre 0,1660" (N19) d'une longueur totale de 4,1/2" et d'une longueur de goujure de 1,1/8", fabriqué conformément aux normes ANSI B94.2-1983(R1988) pour le réusinage de trous précis, HSS avec finition brillante pour l'usinage de l'acier à usinage libre, du cuivre ou des alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B610N19
GradeLumineux
Product Number8157202
Product FamilyB610

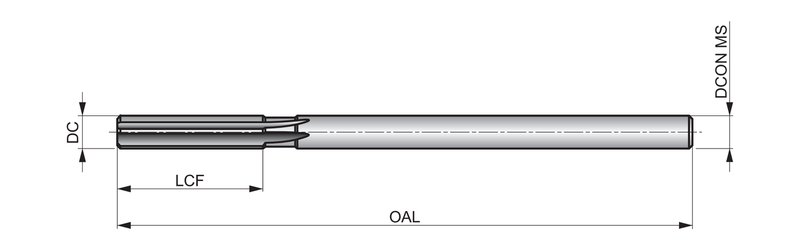

Dimensions
Cutting Diameter — in (DC)0.166"
Cutting Diameter — mm (DC)4.22 mm
Overall Length — in (OAL)4.5"
Overall Length — mm (OAL)114.3 mm
Flute Length — in (LCF)1.125"
Flute Length — mm (LCF)28.58 mm
Connection Dia. — in (DCON)0.1595"
Connection Dia. — mm (DCON)4.05 mm
Number of Flutes (NOF)6
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number8157202
EAN3603607002032
File Type Download
B610N19 — Line Drawing PDF Download
