B610N16
B610N16

B610N16

UGC DOR8157206
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$27.43 CAD - $27.43 CAD
$27.43 CAD
$27.43 CAD - $27.43 CAD
$27.43 CAD

Vendu en lots de : 1

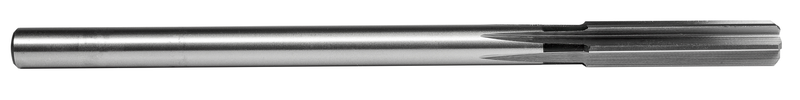

Alésoir machine à goujures droites et queue cylindrique, diamètre 0.1770" (N16) avec une longueur totale de 4.1/2" et une longueur de goujure de 1.1/8", fabriqué conformément aux normes ANSI B94.2-1983(R1988) pour l'alésage de trous précis, HSS avec finition brillante pour l'usinage d'acier de décolletage, de cuivre ou d'alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B610N16
GradeLumineux
Product Number8157206
Product FamilyB610

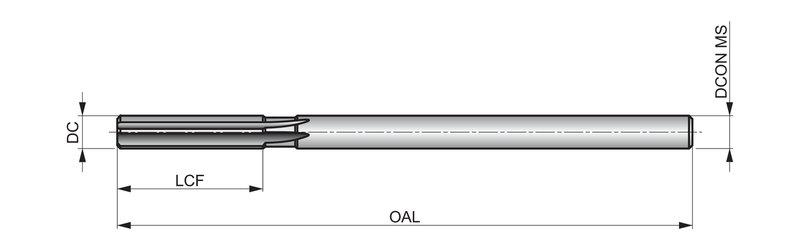

Dimensions
Cutting Diameter — in (DC)0.177"
Cutting Diameter — mm (DC)4.5 mm
Overall Length — in (OAL)4.5"
Overall Length — mm (OAL)114.3 mm
Flute Length — in (LCF)1.125"
Flute Length — mm (LCF)28.58 mm
Connection Dia. — in (DCON)0.17"
Connection Dia. — mm (DCON)4.32 mm
Number of Flutes (NOF)6
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number8157206
EAN3603607002070
File Type Download
B610N16 — Line Drawing PDF Download
