B610P
B610P

B610P

UGC DOR8157257
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$41.61 CAD - $41.61 CAD
$41.61 CAD
$41.61 CAD - $41.61 CAD
$41.61 CAD

Vendu en lots de : 1

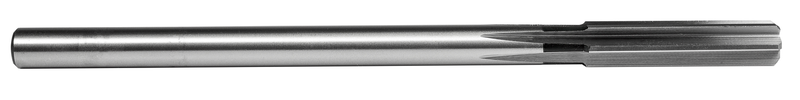

Alésoir machine à queue cylindrique et à flûtes droites, diamètre 0,3230" (P) avec une longueur totale de 6" et une longueur de coupe de 1.1/2", fabriqué selon les normes ANSI B94.2-1983(R1988) pour le réamage de trous précis, en acier rapide avec finition brillante pour l'usinage de l'acier à usinage libre, du cuivre ou des alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B610P
GradeLumineux
Product Number8157257
Product FamilyB610
Dimensions
Cutting Diameter — in (DC)0.323"
Cutting Diameter — mm (DC)8.2 mm
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Flute Length — in (LCF)1.5"
Flute Length — mm (LCF)38.1 mm
Connection Dia. — in (DCON)0.2792"
Connection Dia. — mm (DCON)7.09 mm
Number of Flutes (NOF)6
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number8157257
EAN3603607002582
File Type Download
B610P — Line Drawing PDF Download
