B61047/64
B61047/64

B61047/64

UGC DOR8157306
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$113.19 CAD - $113.19 CAD
$113.19 CAD
$113.19 CAD - $113.19 CAD
$113.19 CAD

Vendu en lots de : 1

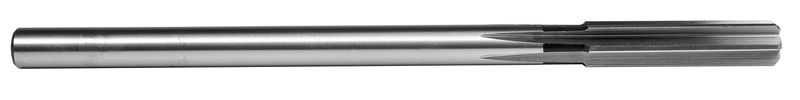

Alésoir de mandrin à goujures droites et queue cylindrique, diamètre 0,7344" (47/64") avec une longueur totale de 9,1/2" et une longueur de goujure de 2,1/2", fabriqué selon les normes ANSI B94.2-1983(R1988) pour l'alésage de trous précis, HSS avec finition brillante pour l'usinage de l'acier de décolletage, du cuivre ou des alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B61047/64
GradeLumineux
Product Number8157306
Product FamilyB610

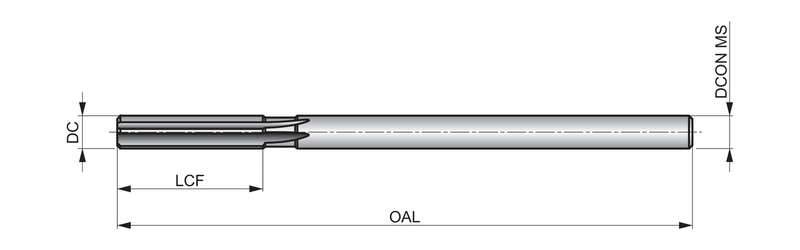

Dimensions
Cutting Diameter — in (DC)0.7344"
Cutting Diameter — mm (DC)18.65 mm
Cutting Diameter — Fractional47/64
Overall Length — in (OAL)9.5"
Overall Length — mm (OAL)241.3 mm
Flute Length — in (LCF)2.5"
Flute Length — mm (LCF)63.5 mm
Connection Dia. — in (DCON)0.6245"
Connection Dia. — mm (DCON)15.86 mm
Number of Flutes (NOF)8
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number8157306
EAN3603607003077
File Type Download
B61047/64 — Line Drawing PDF Download
