B6101.1/2
B6101.1/2

B6101.1/2

UGC DOR8157329
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$277.79 CAD - $277.79 CAD
$277.79 CAD
$277.79 CAD - $277.79 CAD
$277.79 CAD

Vendu en lots de : 1

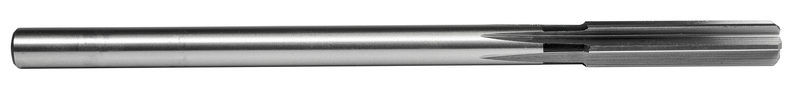

Alésoir machine à goujures droites et queue cylindrique, diamètre 1.5000" (1.1/2") avec une longueur totale de 12.1/2" et une longueur de coupe de 3.1/2", fabriqué selon les normes ANSI B94.2-1983(R1988) pour l'alésage de trous précis, en HSS avec finition brillante pour l'usinage de l'acier de décolletage, du cuivre ou des alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B6101.1/2
GradeLumineux
Product Number8157329
Product FamilyB610
Dimensions
Cutting Diameter — in (DC)1.5"
Cutting Diameter — mm (DC)38.1 mm
Cutting Diameter — Fractional1.1/2
Overall Length — in (OAL)12.5"
Overall Length — mm (OAL)317.5 mm
Flute Length — in (LCF)3.5"
Flute Length — mm (LCF)88.9 mm
Connection Dia. — in (DCON)1.2495"
Connection Dia. — mm (DCON)31.74 mm
Number of Flutes (NOF)8
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number8157329
EAN3603607003305
File Type Download
B6101.1/2 — Line Drawing PDF Download
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.
