B6203/16
B6203/16

B6203/16

UGC DOR8157337
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$29.90 CAD - $29.90 CAD
$29.90 CAD
$29.90 CAD - $29.90 CAD
$29.90 CAD

Vendu en lots de : 1

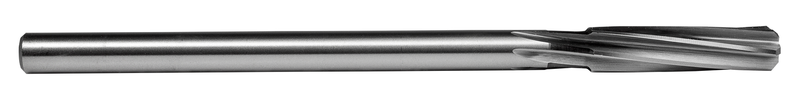

Alésoir machine à spirale lente à droite, à queue cylindrique, diamètre 0,1875" (3/16"), longueur totale 4,1/2" et longueur de coupe 1,1/8", fabriqué conformément aux normes ANSI B94.2-1983(R1988) pour l'alésage de trous précis, HSS avec finition brillante pour l'usinage de l'acier au carbone à usinage facile et ordinaire, du cuivre ou des alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B6203/16
GradeLumineux
Product Number8157337
Product FamilyB620

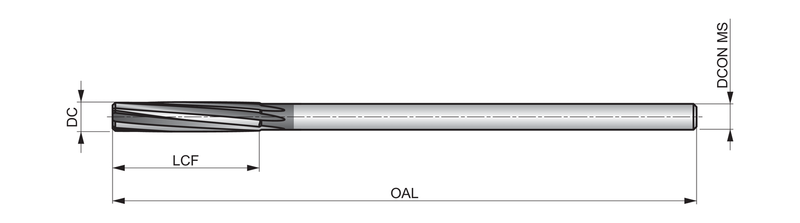

Dimensions
Cutting Diameter — in (DC)0.1875"
Cutting Diameter — mm (DC)4.76 mm
Cutting Diameter — Fractional3/16
Overall Length — in (OAL)4.5"
Overall Length — mm (OAL)114.3 mm
Flute Length — in (LCF)1.125"
Flute Length — mm (LCF)28.58 mm
Connection Dia. — in (DCON)0.18"
Connection Dia. — mm (DCON)4.57 mm
Number of Flutes (NOF)6
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number8157337
EAN3603607003381
File Type Download
B6203/16 — Line Drawing PDF Download
