B62013/64
B62013/64

B62013/64

UGC DOR8157338
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$34.70 CAD - $34.70 CAD
$34.70 CAD
$34.70 CAD - $34.70 CAD
$34.70 CAD

Vendu en lots de : 1

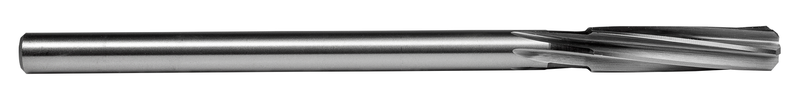

Alésoir à queue cylindrique, spirale lente à droite, de diamètre 0,2031" (13/64") avec une longueur totale de 5" et une longueur de coupe de 1,1/4", fabriqué selon les normes ANSI B94.2-1983(R1988) pour l'alésage de trous précis, HSS avec finition brillante pour l'usinage de l'acier au carbone ordinaire et à usinage libre, du cuivre ou des alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B62013/64
GradeLumineux
Product Number8157338
Product FamilyB620
Dimensions
Cutting Diameter — in (DC)0.2031"
Cutting Diameter — mm (DC)5.16 mm
Cutting Diameter — Fractional13/64
Overall Length — in (OAL)5.0"
Overall Length — mm (OAL)127.0 mm
Flute Length — in (LCF)1.25"
Flute Length — mm (LCF)31.75 mm
Connection Dia. — in (DCON)0.1945"
Connection Dia. — mm (DCON)4.94 mm
Number of Flutes (NOF)6
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number8157338
EAN3603607003398
File Type Download
B62013/64 — Line Drawing PDF Download
