B6207/32
B6207/32

B6207/32

UGC DOR8157339
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$33.96 CAD - $33.96 CAD
$33.96 CAD
$33.96 CAD - $33.96 CAD
$33.96 CAD

Vendu en lots de : 1

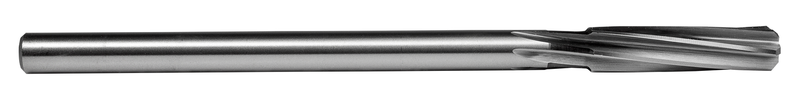

Alésoir machine à spirale lente à droite, à queue cylindrique, diamètre 0,2188" (7/32") avec une longueur totale de 5" et une longueur de coupe de 1,1/4", fabriqué conformément aux normes ANSI B94.2-1983(R1988) pour l'alésage de trous précis, en HSS avec finition brillante pour l'usinage de l'acier au carbone à usinage libre et courant, du cuivre ou des alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B6207/32
GradeLumineux
Product Number8157339
Product FamilyB620
Dimensions
Cutting Diameter — in (DC)0.2188"
Cutting Diameter — mm (DC)5.56 mm
Cutting Diameter — Fractional7/32
Overall Length — in (OAL)5.0"
Overall Length — mm (OAL)127.0 mm
Flute Length — in (LCF)1.25"
Flute Length — mm (LCF)31.75 mm
Connection Dia. — in (DCON)0.2075"
Connection Dia. — mm (DCON)5.27 mm
Number of Flutes (NOF)6
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number8157339
EAN3603607003404
File Type Download
B6207/32 — Line Drawing PDF Download
